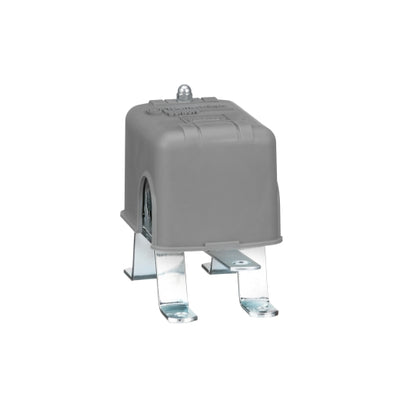

9036DG2 | Float Switch: 575 VAC 1HP D + Options | SQUARE D

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9036DG2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9036DG2 Documents

Datasheet More Info

Overview

Details for 9036DG2

9036DG2 2-Pole Close-On-Rise Float Switch by Square D Square D's 9036DG2 float switch is a robust and reliable device designed for liquid level detection and control applications. Its 2-pole close-on-rise design allows it to activate when liquid rises to a predetermined level. Key features include: * 2-pole close-on-rise operation * Durable construction for extended service life * Suitable for use in a variety of liquids * Easy installation and maintenance * Complies with relevant industry standards Applications: * Sump pumps * Sewage and wastewater systems * Chemical processing plants * Food and beverage manufacturing * Industrial machinery and equipment Our HVAC supply store is your trusted source for high-quality electrical components and equipment. Order your 9036DG2 float switch today and benefit from our exceptional pricing and fast shipping. Our team of experts is also available to assist you with any technical inquiries or product recommendations.

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Open tank general purpose
device short name: 9036D
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For open tank or sump
device mounting: Pedestal
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher
Sea water at specific gravity of 0.85 in or higher
Hydraulic oil at specific gravity of 0.85 in or higher
Corrosive fluid at specific gravity of 0.85 in or higher
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: Variable adjustable
Float position: Any
Float rod angle: Vertical
Force down to trip: 8 ozf
Force up to trip: 9 ozf
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 0.54 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Rod and float are to be choosen in accessories
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 8.4 cm
Package 1 Width: 12.4 cm
Package 1 Length: 17.3 cm
Package 1 Weight: 499.0 g
Unit Type of Package 2: PAL
Number of Units in Package 2: 84
Package 2 Height: 101.6 cm
Package 2 Width: 101.6 cm
Package 2 Length: 121.92 cm
Package 2 Weight: 45.359 kg
Warranty: 18 months
