9016GVG1J10 | Vacuum switch, 9016GVG, electromechanical, adjustable scale, 2 thresholds, Set 16.5 to 25InHg | SQUARE D

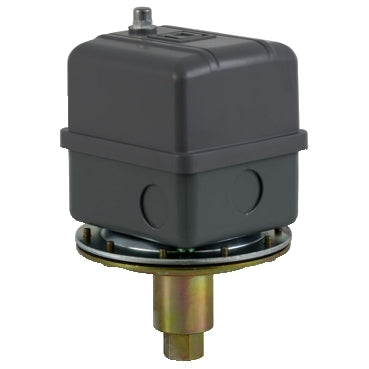

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9016GVG1J10

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9016GVG1J10 Documents

More Info

Overview

Details for 9016GVG1J10

Industrial-Grade Vacuum Switch for Enhanced Equipment Reliability SQUARE D's 9016GVG1J10 Vacuum Switch is an essential component for industrial engineers and maintenance professionals seeking a highly reliable and efficient vacuum monitoring solution. With its DPST (Double Pole, Single Throw) configuration, this switch provides precise vacuum detection within a range of 16.5 to 25 inches of mercury. Constructed with durable materials, this switch ensures a long service life in demanding industrial environments. Its compact design allows for easy integration into various equipment and applications, including vacuum systems, HVAC systems, and packaging machinery. The switch's advanced sensing technology provides accurate and real-time vacuum measurements, enabling you to monitor and maintain optimal vacuum levels for efficient operation. Key Features: * DPST configuration for precise vacuum detection * Measurement range: 16.5 to 25 inches of mercury * Robust construction for durability in industrial applications * Compact design for easy integration * Advanced sensing technology for accurate measurements Enhance your equipment reliability and optimize your operations with the SQUARE D 9016GVG1J10 Vacuum Switch. Contact our HVAC supply store today for competitive prices and fast shipping on this vital industrial component! This product is part of the NEMA Pressure Switches range, an offer of electromechanical vacuum switches. This electromechanical vacuum switch has 2 normally closed, snap action, DPST-DB (double pole double throw, double break), form YY contacts and maximum pressure of 150psi. The vacuum switch with an approximate differential of 5inHg to 10inHg. Vacuum switch has a cut range of 5InHg to 25InHg and a cut in range of 0InHg to 20InHg. Switch is set to 16.5InHg to 25InHg. It is furnished with screw clamp terminals for electrical connection and 0.25inch 18 NPSF for fluid connection. This vacuum switch has a diaphragm actuator which can be operated from any position and adjustable scale for internal settings. Offers mechanical durability of 300 operating cycles. The enclosure is made of stamped metal. It is available in size of 4.58inch (W) x 4.37inch (D) x 7.13inch (H) and weighs 3.53lb. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, molding presses, injection molders, grinding machines, machining centers, complex and special machines. It is a NEMA 1 rated product. This product is certified by CSA and UL. Meets UL 508 standards. Electromechanical vacuum switch is designed as a companion to the 9036GG float switches in common use on vacuum heating pumps. Electromechanical vacuum switch is designed as a companion to the 9036GG float switches in common use on vacuum heating pumps.

Specifications

Range of Product: 9016GVG
Product or Component Type: Electromechanical vacuum switch
Device Application: Power circuit application
Device short name: 9016GVG
Electrical circuit type: Power circuit
Factory modification: -
Vacuum switch type of operation: Regulation between two thresholds
Scale type: Adjustable
Vacuum sensor size: 25 inHg
Cut out range: 5…25 inHg
Cut-in range: 0…20 inHg
Approx adjustable differential at mid range: 5…10 inHg
Value of setting: 16.5...25 inHg
Maximum pressure: 100 psi
Maximum permissible pressure - per cycle: 100 psi (689.48 kPa)
Local display: Without
fluid connection type: 0.25 inch 18 NPSF UL 508
electrical connection: Screw-clamp terminals AWG 22...AWG 12
cable entry number: 3 knock-outs for 1/2" NPT conduit
Terminal block type: 8 screw terminals
pressure actuator: Diaphragm nitrile (Buna-N)
controlled fluid: Air -40…250 °F (-40…121 °C)), Water -40…250 °F (-40…121 °C)), Hydraulic oil -40…250 °F (-40…121 °C)), Gas -40…250 °F (-40…121 °C))
Materials in contact with fluid: Nitrile (Buna-N), Zinc plated steel, 3M Scotch-Grip 847 rubber and gasket adhesive
Cover Material: Polypropylene, noryl thermoplastic resin or equivalent
Operating position: Any position
Enclosure Material: Stamped metal
maximum operating rate: 100 cyc/mn
Repeat accuracy: 2.5 %
motor power kW: 1.5 kW 2 hp)115 V AC, 1 phase, 2.2 kW 3 hp)115 V AC, 3 phase, 2.2 kW 3 hp)230 V AC, 1 phase, 3.75 kW 5 hp)230 V AC, 3 phase, 3.7 kW 5 hp)460 V AC, 1 phase, 3.7 kW 5 hp)460 V AC, 3 phase, 3.7 kW 5 hp)575 V AC, 1 phase, 3.7 kW 5 hp)575 V AC, 3 phase, 0.75 kW 1 hp)115 V DC, 3 phase, 0.75 kW 1 hp)230 V DC
contacts type and composition: 2 NC, DPST-DB, Form YY, snap action, silver cadmium contacts
short-circuit protection: 20 A cartridge fuse gG
Mechanical durability: 300 cycles
Setting: Internal
Net Weight: 3.53 lb(US) (1.60 kg)
Height: 7.13 in (181.10 mm)
Depth: 4.37 in (111.00 mm)
Width: 4.58 in (116.33 mm)
standards: UL 508
Product Certifications: CSA file LR25490, UL listed file E12158 CCN NKPZ
Protective treatment: None
Ambient Air Temperature for Operation: 10…185 °F (-12…85 °C)
Ambient Air Temperature for Storage: 10…185 °F (-12…85 °C)
NEMA degree of protection: NEMA 1 UL 698
Category: 21541-9016 COMMERCIAL VACUUM SWITCH
Discount Schedule: CP7G
GTIN: 785901009665
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.59 in (14.2 cm)
Package 1 Width: 4.88 in (12.4 cm)
Package 1 Length: 7.72 in (19.6 cm)
Package 1 Weight: 3.53 lb(US) (1.6 kg)
Warranty: 18 months
