9016GVG1J09E | Vacuum switch, 9016GVG, electromechanical, adjustable scale, 2 thresholds, Set 3 to 8InHg | SQUARE D

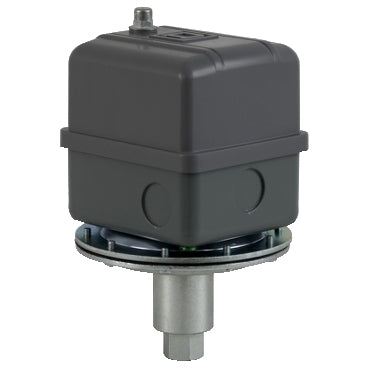

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9016GVG1J09E

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9016GVG1J09E Documents

More Info

Overview

Details for 9016GVG1J09E

SQUARE D 3-8"HG SW.W/3WAY LEVER: Durable and reliable, the 9016GVG1J09E is a 3-way lever switch designed for heavy-duty industrial applications. It features a robust construction with a 3-8" height gauge and a convenient lever for easy operation. Applications include controlling pumps, motors, and other industrial equipment. You can rely on the SQUARE D brand for superior quality and performance. Shop our HVAC supply store for the best prices and fast shipping on the 9016GVG1J09E and all your industrial supply needs. This product is part of the NEMA Pressure Switches range, an offer of electromechanical vacuum switches. This electromechanical vacuum switch has 2 normally closed, snap action, DPST-DB (double pole double throw, double break), form YY contacts and maximum pressure of 150psi. The vacuum switch with an approximate differential of 5inHg to 10inHg. Vacuum switch has a cut range of 5InHg to 25InHg and a cut in range of 0InHg to 20InHg. Switch is set to 3InHg to 8InHg. It is furnished with screw clamp terminals for electrical connection and 0.25inch 18 NPSF for fluid connection. This vacuum switch has a diaphragm actuator which can be operated from any position and adjustable scale for internal settings. Offers mechanical durability of 300 operating cycles. The enclosure is made of stamped metal. It is available in size of 4.58inch (W) x 4.37inch (D) x 7.13inch (H) and weighs 4.6lb. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, molding presses, injection molders, grinding machines, machining centers, complex and special machines. It is a NEMA 1 rated product. This product is certified by CSA and UL. Meets UL 508 standards. Electromechanical vacuum switch is designed as a companion to the 9036GG float switches in common use on vacuum heating pumps. Electromechanical vacuum switch is designed as a companion to the 9036GG float switches in common use on vacuum heating pumps.

Specifications

Range of Product: 9016GVG
Product or Component Type: Electromechanical vacuum switch
Device Application: Power circuit application
Device short name: 9016GVG
Electrical circuit type: Power circuit
Factory modification: 3-way lever
Vacuum switch type of operation: Regulation between two thresholds
Scale type: Adjustable
Vacuum sensor size: 25 inHg
Cut out range: 5…25 inHg
Cut-in range: 0…20 inHg
Approx adjustable differential at mid range: 5…10 inHg
Value of setting: 3...8 inHg
Maximum pressure: 100 psi
Maximum permissible pressure - per cycle: 100 psi (689.48 kPa)
Local display: Without
fluid connection type: 0.25 inch 18 NPSF UL 508
electrical connection: Screw-clamp terminals AWG 22...AWG 12
cable entry number: 3 knock-outs for 1/2" NPT conduit
Terminal block type: 8 screw terminals
pressure actuator: Diaphragm nitrile (Buna-N)
controlled fluid: Air -40…250 °F (-40…121 °C)), Water -40…250 °F (-40…121 °C)), Hydraulic oil -40…250 °F (-40…121 °C)), Gas -40…250 °F (-40…121 °C))
Materials in contact with fluid: Nitrile (Buna-N), 3M Scotch-Grip 847 rubber and gasket adhesive, Zinc plated steel
Cover Material: Polypropylene, noryl thermoplastic resin or equivalent
Operating position: Any position
Enclosure Material: Stamped metal
maximum operating rate: 100 cyc/mn
Repeat accuracy: 2.5 %
motor power kW: 1.5 kW 2 hp)115 V AC, 1 phase, 2.2 kW 3 hp)115 V AC, 3 phase, 2.2 kW 3 hp)230 V AC, 1 phase, 3.75 kW 5 hp)230 V AC, 3 phase, 3.7 kW 5 hp)460 V AC, 1 phase, 3.7 kW 5 hp)460 V AC, 3 phase, 3.7 kW 5 hp)575 V AC, 1 phase, 3.7 kW 5 hp)575 V AC, 3 phase, 0.75 kW 1 hp)115 V DC, 3 phase, 0.75 kW 1 hp)230 V DC
contacts type and composition: 2 NC, DPST-DB, Form YY, snap action, silver cadmium contacts
short-circuit protection: 20 A cartridge fuse gG
Mechanical durability: 300 cycles
Setting: Internal
Net Weight: 4.6 lb(US) (2.09 kg)
Height: 7.13 in (181.10 mm)
Depth: 4.37 in (111.00 mm)
Width: 4.58 in (116.33 mm)
standards: UL 508
Product Certifications: UL listed file E12158 CCN NKPZ, CSA file LR25490
Protective treatment: None
Ambient Air Temperature for Operation: 10…185 °F (-12…85 °C)
Ambient Air Temperature for Storage: 10…185 °F (-12…85 °C)
NEMA degree of protection: NEMA 1 UL 698
Category: 21541-9016 COMMERCIAL VACUUM SWITCH
Discount Schedule: CP7G
GTIN: 785901852193
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 29.54 in (75.032 cm)
Package 1 Width: 11.63 in (29.54 cm)
Package 1 Length: 75.03 in (190.582 cm)
Package 1 Weight: 4.60 lb(US) (2.087 kg)
Warranty: 18 months
