9013GSG2J25 | Pressure Switch: 575 VAC 5HP G + Options | SQUARE D

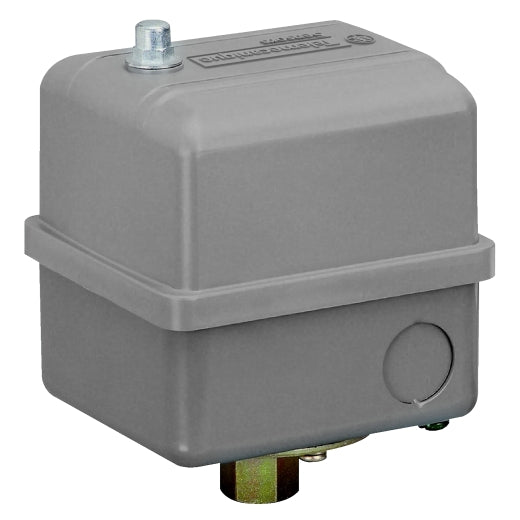

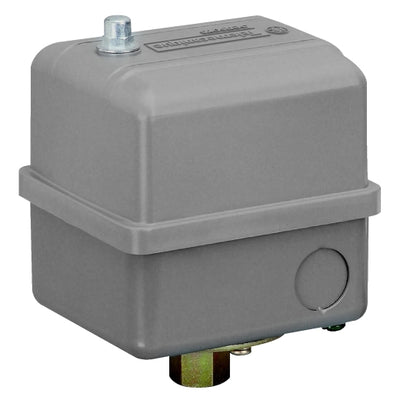

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9013GSG2J25

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9013GSG2J25 Documents

Datasheet More Info

Overview

Details for 9013GSG2J25

SQUARE D 5/80# 10A DPST # SW The 9013GSG2J25 from SQUARE D is a 5/80# 10A DPST switch designed for demanding industrial applications. Its durable construction ensures reliable performance, while its compact design makes it easy to integrate into various systems. Key Features: * 10 amp current rating * DPST (double-pole, single-throw) configuration * 5/80 horsepower * 60On 80Off timing * Compact and robust design Applications: * Controlling motors, pumps, and other electrical devices * Industrial automation and control systems * HVAC systems * Manufacturing equipment Shop our HVAC supply store today for the best prices and fast shipping on the 9013GSG2J25 switch. Trust our expertise for all your industrial supply needs.

Specifications

Range of product: Square D Pumptrol
Pressure sensor name: 9013GS
Pressure sensor size: 551.58 kPa (34.47…413.69 kPa)
Value of setting: 60...80 psi
electrical circuit type: Power circuit
Product specific application: Control electrically driven water pumps and air compressors
Quantity per set: 1
Type of packing: Individual
Pressure sensor type: Electromechanical pressure switch
Controlled fluid: Air (-30…125 °C)
Fresh water (-30…125 °C)
Adjustable range on rising pressure: 137.90…551.58 kPa
Approximate adjustable differential: 103.42…206.84 kPa
Destruction pressure: 2068.43 kPa
Pressure actuator: Diaphragm
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Setting: Internal
Local display: Without
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type: 0.25 inch NPSF internal conforming to UL 508
Short-circuit protection: 20 A cartridge fuse, type gG
Materials in contact with fluid: Zinc plated steel or equivalent flange
Nitrile (Buna-N) or equivalent rubber diaphragm
Material: Polypropylene: cover
Noryl thermoplastic resin or equivalent: cover
Operating position: Any position
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
0.75 kW (1 hp) at 115 V DC
0.75 kW (1 hp) at 230 V DC
3.75 kW (5 hp) at 230 V AC, 3 phases
3.7 kW (5 hp) at 460 V AC, 1 phase
3.7 kW (5 hp) at 460 V AC, 3 phases
3.7 kW (5 hp) at 575 V AC, 1 phase
3.7 kW (5 hp) at 575 V AC, 3 phases
Electrical durability: 100000 cycles, operating rate <10 cyc/mn
Mechanical durability: 300000 cycles
Terminal block type: 4 terminals
maximum operating rate: 10 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.02 kg
Repeat accuracy: +/- 3 %
Terminals description ISO n°1: L1-T1
L2-T2
Width: 87.38 mm
Height: 137.16 mm
Depth: 98.55 mm
Factory modification: -
Standards: CE
UL 508
NSF ANSI 372
Ambient air temperature for operation: -36…125 °C
Ambient air temperature for storage: -36…125 °C
Protective treatment: None
NEMA degree of protection: NEMA 1 conforming to UL 50
IP degree of protection: IP20 conforming to IEC 60529
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 9.9 cm
Package 1 Width: 11.2 cm
Package 1 Length: 14.7 cm
Package 1 Weight: 875.4 g
Warranty: 18 months
