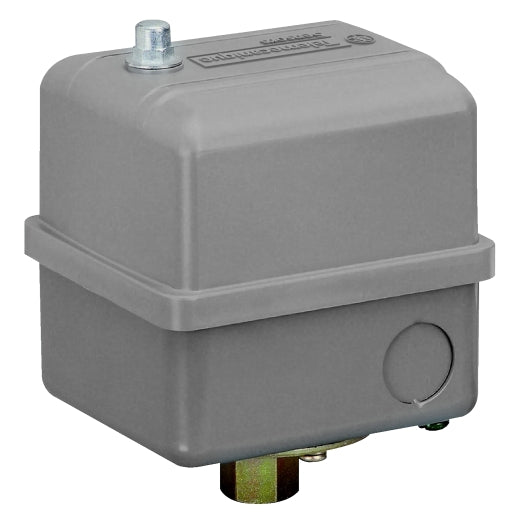

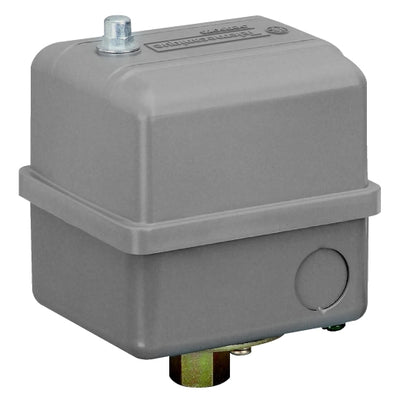

9013GSG2J24 | Pressure Switch: 575 VAC 5HP G + Options | SQUARE D

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9013GSG2J24

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9013GSG2J24 Documents

Datasheet More Info

Overview

Details for 9013GSG2J24

Pressure Switch: SQUARE D 9013GSG2J24 The 9013GSG2J24 pressure switch from SQUARE D is a crucial component for controlling and protecting industrial processes. With its pressure range of 40# on and 60# off, it ensures precise pressure regulation in various applications. Featuring a robust construction, this pressure switch withstands demanding industrial environments. Its compact design allows for easy installation and integration into existing systems. It operates on a 120VAC power supply, ensuring reliable performance in standard electrical configurations. The 9013GSG2J24 pressure switch offers excellent accuracy and repeatability, making it an ideal choice for critical pressure control applications. Its rugged design guarantees long-lasting operation, minimizing downtime and maintenance costs. Our HVAC supply store is your trusted source for industrial supplies, including pressure switches. Order your SQUARE D 9013GSG2J24 pressure switch today and experience the difference in quality and performance. Our competitive pricing and fast shipping ensure you get the best value for your investment.

Specifications

Range of product: Square D Pumptrol
Pressure sensor name: 9013GS
Pressure sensor size: 551.58 kPa (34.47…413.69 kPa)
Value of setting: 40...60 psi
electrical circuit type: Power circuit
Product specific application: Control electrically driven water pumps and air compressors
Quantity per set: 1
Type of packing: Individual
Pressure sensor type: Electromechanical pressure switch
Controlled fluid: Air (-30…125 °C)
Fresh water (-30…125 °C)
Adjustable range on rising pressure: 137.90…551.58 kPa
Approximate adjustable differential: 103.42…206.84 kPa
Destruction pressure: 2068.43 kPa
Pressure actuator: Diaphragm
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Setting: Internal
Local display: Without
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type: 0.25 inch NPSF internal conforming to UL 508
Short-circuit protection: 20 A cartridge fuse, type gG
Materials in contact with fluid: Zinc plated steel or equivalent flange
Nitrile (Buna-N) or equivalent rubber diaphragm
Material: Polypropylene: cover
Noryl thermoplastic resin or equivalent: cover
Operating position: Any position
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
0.75 kW (1 hp) at 115 V DC
0.75 kW (1 hp) at 230 V DC
3.75 kW (5 hp) at 230 V AC, 3 phases
3.7 kW (5 hp) at 460 V AC, 1 phase
3.7 kW (5 hp) at 460 V AC, 3 phases
3.7 kW (5 hp) at 575 V AC, 1 phase
3.7 kW (5 hp) at 575 V AC, 3 phases
Electrical durability: 100000 cycles, operating rate <10 cyc/mn
Mechanical durability: 300000 cycles
Terminal block type: 4 terminals
maximum operating rate: 10 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.02 kg
Repeat accuracy: +/- 3 %
Terminals description ISO n°1: L1-T1
L2-T2
Width: 87.38 mm
Height: 137.16 mm
Depth: 98.55 mm
Factory modification: -
Standards: NSF ANSI 372
CE
UL 508
Ambient air temperature for operation: -36…125 °C
Ambient air temperature for storage: -36…125 °C
Protective treatment: None
NEMA degree of protection: NEMA 1 conforming to UL 50
IP degree of protection: IP20 conforming to IEC 60529
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 11.176 cm
Package 1 Width: 14.478 cm
Package 1 Length: 10.16 cm
Package 1 Weight: 885.0 g
Unit Type of Package 2: PAL
Number of Units in Package 2: 156
Package 2 Height: 101.6 cm
Package 2 Width: 101.6 cm
Package 2 Length: 121.92 cm
Package 2 Weight: 138.799 kg
Warranty: 18 months
