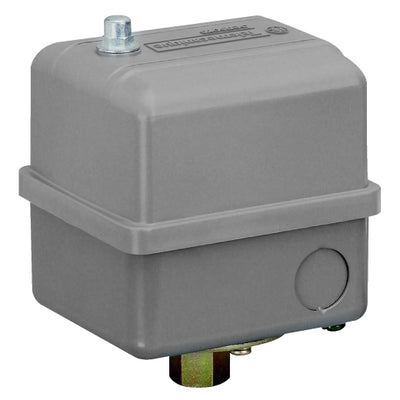

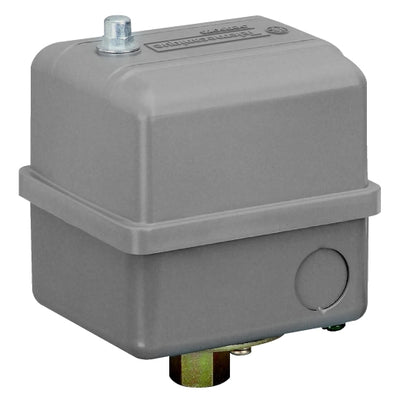

Details for 9013GSG2J20

SQUARE D 20/40# Pump#Switch AdjDiff The SQUARE D 20/40# Pump#Switch AdjDiff is a high-quality electrical switch designed for use in industrial pumps. It features a durable construction and reliable performance, making it a valuable asset for industrial engineers and maintenance professionals. Key Features and Benefits: Durable Construction: Built with robust materials to withstand demanding industrial environments. Reliable Performance: Ensures consistent and reliable operation of pumps. Pump Adjustment: Allows for fine-tuning of pump operation to optimize efficiency. Safety Features: Includes safety features to protect against electrical hazards. Easy Installation: Designed for simple and straightforward installation. Applications: The SQUARE D 20/40# Pump#Switch AdjDiff is ideal for use in various industrial pumping applications, including: * Water and wastewater pumping * Chemical processing * Mining * Manufacturing * Food and beverage processing Conclusion: For industrial engineers and maintenance professionals seeking a high-quality electrical switch for pumps, the SQUARE D 20/40# Pump#Switch AdjDiff is an excellent choice. With its durable construction, reliable performance, and easy installation, it ensures efficient and safe pump operation. Shop our HVAC supply store today for the best prices and fast shipping on this essential industrial component!

Specifications

Range of product: Square D Pumptrol
Pressure sensor name: 9013GS
Pressure sensor size: 551.58 kPa (34.47…413.69 kPa)
Value of setting: 20...40 psi
electrical circuit type: Power circuit
Product specific application: Control electrically driven water pumps and air compressors
Quantity per set: 1
Type of packing: Individual
Pressure sensor type: Electromechanical pressure switch
Controlled fluid: Air (-30…125 °C)
Fresh water (-30…125 °C)
Adjustable range on rising pressure: 137.90…551.58 kPa
Approximate adjustable differential: 103.42…206.84 kPa
Destruction pressure: 2068.43 kPa
Pressure actuator: Diaphragm
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Setting: Internal
Local display: Without
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type: 0.25 inch NPSF internal conforming to UL 508
Short-circuit protection: 20 A cartridge fuse, type gG
Materials in contact with fluid: Zinc plated steel or equivalent flange
Nitrile (Buna-N) or equivalent rubber diaphragm
Material: Polypropylene: cover
Noryl thermoplastic resin or equivalent: cover
Operating position: Any position
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
0.75 kW (1 hp) at 115 V DC
0.75 kW (1 hp) at 230 V DC
3.75 kW (5 hp) at 230 V AC, 3 phases
3.7 kW (5 hp) at 460 V AC, 1 phase
3.7 kW (5 hp) at 460 V AC, 3 phases
3.7 kW (5 hp) at 575 V AC, 1 phase
3.7 kW (5 hp) at 575 V AC, 3 phases
Electrical durability: 100000 cycles, operating rate <10 cyc/mn
Mechanical durability: 300000 cycles
Terminal block type: 4 terminals
maximum operating rate: 10 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.02 kg
Repeat accuracy: +/- 3 %
Terminals description ISO n°1: L2-T2
L1-T1
Width: 87.38 mm
Height: 137.16 mm
Depth: 98.55 mm
Factory modification: -
Standards: CE
UL 508
NSF ANSI 372
Ambient air temperature for operation: -36…125 °C
Ambient air temperature for storage: -36…125 °C
Protective treatment: None
NEMA degree of protection: NEMA 1 conforming to UL 50
IP degree of protection: IP20 conforming to IEC 60529
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 9.9 cm
Package 1 Width: 11.2 cm
Package 1 Length: 14.7 cm
Package 1 Weight: 880.0 g
Warranty: 18 months
