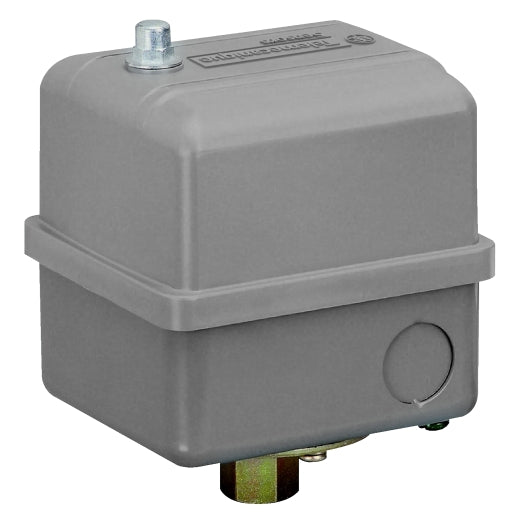

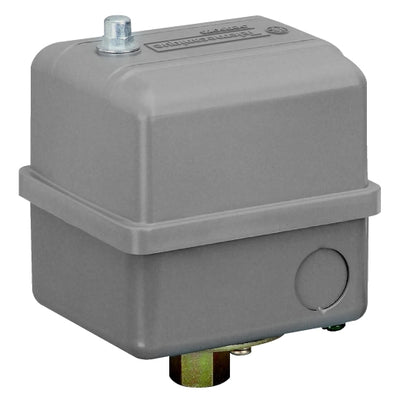

9013GHG2J63X | Pressure Switch: 575 VAC 5HP G + Options | SQUARE D

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9013GHG2J63X

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9013GHG2J63X Documents

Datasheet More Info

Overview

Details for 9013GHG2J63X

SQUARE D DPST 10 Amp 125/250 VAC Switch (9013GHG2J63X) This SQUARE D switch is a durable and reliable choice for controlling electrical circuits in industrial and commercial applications. With its 10-ampere current rating and 125/250 VAC voltage range, it can handle a wide range of electrical loads. The DPST (double-pole, single-throw) configuration allows for independent control of two separate circuits. Constructed from high-quality materials, this switch is built to withstand demanding environments. Its compact size and easy-to-install design make it suitable for various applications, including machinery, lighting systems, and HVAC equipment. Features: * DPST configuration for controlling two separate circuits * 10-ampere current rating * 125/250 VAC voltage range * Durable construction for long-lasting performance * Compact size and easy installation Our HVAC supply store is your trusted source for electrical components and supplies. We offer the best prices and fast shipping on all our products, including the SQUARE D DPST 10 Amp 125/250 VAC Switch. Order yours today and experience the Our HVAC supply store difference!

Specifications

Range of product: Square D Pumptrol
Pressure sensor name: 9013GH
Pressure sensor size: 1378.95 kPa (275.79…1172.11 kPa)
Value of setting: 145...175 psi
electrical circuit type: Power circuit
Product specific application: Control electrically driven water pumps and air compressors
Quantity per set: 1
Type of packing: Individual
Pressure sensor type: Electromechanical pressure switch
Controlled fluid: Air (-30…125 °C)
Fresh water (-30…125 °C)
Adjustable range on rising pressure: 448.16…1378.95 kPa
Approximate adjustable differential: 137.90…275.79 kPa
Destruction pressure: 2068.43 kPa
Pressure actuator: Diaphragm
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Setting: Internal
Local display: Without
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type: 0.25 inch NPSF internal conforming to UL 508
Short-circuit protection: 20 A cartridge fuse, type gG
Materials in contact with fluid: Zinc plated steel or equivalent flange
Nitrile (Buna-N) or equivalent rubber diaphragm
Material: Polypropylene: cover
Noryl thermoplastic resin or equivalent: cover
Operating position: Any position
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
0.75 kW (1 hp) at 115 V DC
0.75 kW (1 hp) at 230 V DC
3.75 kW (5 hp) at 230 V AC, 3 phases
3.7 kW (5 hp) at 460 V AC, 1 phase
3.7 kW (5 hp) at 460 V AC, 3 phases
3.7 kW (5 hp) at 575 V AC, 1 phase
3.7 kW (5 hp) at 575 V AC, 3 phases
Electrical durability: 100000 cycles, operating rate <10 cyc/mn
Mechanical durability: 300000 cycles
Terminal block type: 4 terminals
maximum operating rate: 10 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.02 kg
Repeat accuracy: +/- 3 %
Terminals description ISO n°1: L1-T1
L2-T2
Width: 106.43 mm
Height: 137.16 mm
Depth: 98.55 mm
Factory modification: 2-way pressure release valve
Standards: CE
NSF ANSI 372
UL 508
Ambient air temperature for operation: -36…125 °C
Ambient air temperature for storage: -36…125 °C
Protective treatment: None
NEMA degree of protection: NEMA 1 conforming to UL 50
IP degree of protection: IP20 conforming to IEC 60529
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 12.4 cm
Package 1 Width: 10.9 cm
Package 1 Length: 15.5 cm
Package 1 Weight: 948.0 g
Warranty: 18 months
