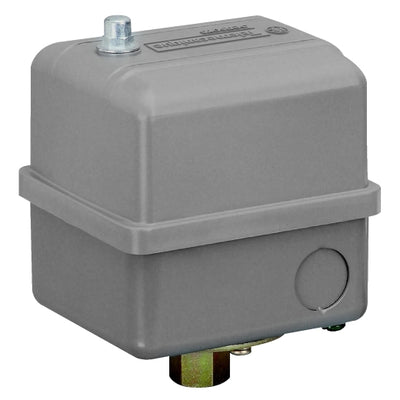

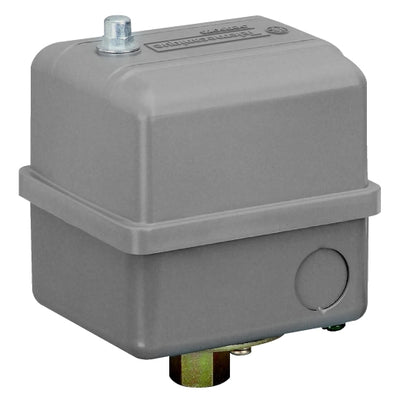

9013GHG2J62 | Pressure Switch: 575 VAC 5HP G + Options | SQUARE D

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9013GHG2J62

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9013GHG2J62 Documents

Datasheet More Info

Overview

Details for 9013GHG2J62

The SQUARE D 40/200# DPST # Sw;140On 175Off (SKU: 9013GHG2J62) is a high-quality electrical switch designed for demanding industrial applications. This robust switch features a durable construction with a 40/200# DPST configuration, providing reliable performance in various electrical systems. It operates with a switching capacity of 140On and 175Off, making it suitable for controlling high-power loads. The switch is also designed with a compact and efficient form factor, allowing for easy integration into existing electrical setups. Additionally, it adheres to industry standards, ensuring compatibility with a wide range of electrical components. Upgrade your industrial electrical systems with the SQUARE D 40/200# DPST # Sw;140On 175Off switch. Our HVAC supply store offers competitive prices and fast shipping, making it your trusted source for quality electrical products.

Specifications

Range of product: Square D Pumptrol
Pressure sensor name: 9013GH
Pressure sensor size: 1378.95 kPa (275.79…1172.11 kPa)
Value of setting: 140...175 psi
electrical circuit type: Power circuit
Product specific application: Control electrically driven water pumps and air compressors
Quantity per set: 1
Type of packing: Individual
Pressure sensor type: Electromechanical pressure switch
Controlled fluid: Air (-30…125 °C)
Fresh water (-30…125 °C)
Adjustable range on rising pressure: 448.16…1378.95 kPa
Approximate adjustable differential: 137.90…275.79 kPa
Destruction pressure: 2068.43 kPa
Pressure actuator: Diaphragm
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Setting: Internal
Local display: Without
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type: 0.25 inch NPSF internal conforming to UL 508
Short-circuit protection: 20 A cartridge fuse, type gG
Materials in contact with fluid: Zinc plated steel or equivalent flange
Nitrile (Buna-N) or equivalent rubber diaphragm
Material: Polypropylene: cover
Noryl thermoplastic resin or equivalent: cover
Operating position: Any position
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
0.75 kW (1 hp) at 115 V DC
0.75 kW (1 hp) at 230 V DC
3.75 kW (5 hp) at 230 V AC, 3 phases
3.7 kW (5 hp) at 460 V AC, 1 phase
3.7 kW (5 hp) at 460 V AC, 3 phases
3.7 kW (5 hp) at 575 V AC, 1 phase
3.7 kW (5 hp) at 575 V AC, 3 phases
Electrical durability: 100000 cycles, operating rate <10 cyc/mn
Mechanical durability: 300000 cycles
Terminal block type: 4 terminals
maximum operating rate: 10 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.02 kg
Repeat accuracy: +/- 3 %
Terminals description ISO n°1: L2-T2
L1-T1
Width: 87.38 mm
Height: 137.16 mm
Depth: 98.55 mm
Factory modification: -
Standards: NSF ANSI 372
CE
UL 508
Ambient air temperature for operation: -36…125 °C
Ambient air temperature for storage: -36…125 °C
Protective treatment: None
NEMA degree of protection: NEMA 1 conforming to UL 50
IP degree of protection: IP20 conforming to IEC 60529
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 9.9 cm
Package 1 Width: 11.2 cm
Package 1 Length: 14.7 cm
Package 1 Weight: 893.6 g
Warranty: 18 months
