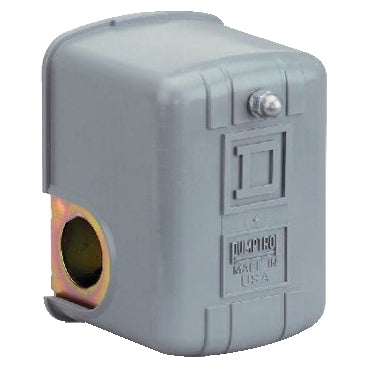

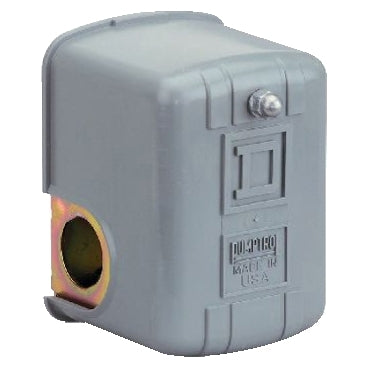

9013FSW29J21 | Square D Pumptrol, water pump switch 9013FS, adjustable diff., 30 50 PSI | SQUARE D

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9013FSW29J21

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9013FSW29J21 Documents

More Info

Overview

Details for 9013FSW29J21

SQUARE D 9013FSW29J21 30-50# Adjustable Differential Pressure Switch SQUARE D's 9013FSW29J21 Differential Pressure Switch is a high-quality device designed to monitor and control differential pressure in various industrial applications. This switch features an adjustable range of 30-50# and provides accurate and reliable pressure readings. Crafted with durable materials, this switch ensures long-lasting performance in demanding environments. Its compact design allows for easy installation and space efficiency. The adjustable setpoint allows for precise control and customization to meet specific application requirements. The 9013FSW29J21 is equipped with electrical contacts that activate when the differential pressure exceeds or falls below the setpoint. This triggers an alarm or controls other devices, ensuring process integrity and preventing unexpected pressure fluctuations. Whether you're an industrial engineer or a maintenance professional, the SQUARE D 9013FSW29J21 Adjustable Differential Pressure Switch is an essential tool for monitoring and controlling pressure in your operation. Our HVAC supply store offers competitive pricing and fast shipping on all our products. Trust us for your industrial supply needs.

Specifications

Range of Product: Square D Pumptrol
Pressure sensor name: 9013FS
pressure sensor size: 65 psi (448.16 kPa) 5…45 psi (34.47…310.26 kPa))
Value of setting: 30...50 psi
Electrical circuit type: Power circuit
Product Specific Application: Control electrically driven water pumps
Quantity per Set: 1
Type of Packing: Individual
Pressure sensor type: Electromechanical pressure switch
controlled fluid: Fresh water -22…257 °F (-30…125 °C))
Adjustable range on rising pressure: 20…65 psi (137.90…448.16 kPa)
Approximate adjustable differential: 15…30 psi (103.42…206.84 kPa)
Destruction pressure: 220 psi (1516.85 kPa)
Pressure actuator: Diaphragm
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Setting: Internal
Local display: Without
contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
cable entry number: 2 0.88 in (22.35 mm) cable entries with 0.84 in across flats UL 508
electrical connection: Screw-clamp terminals 10 AWG, Screw-clamp terminals 5.261 mm²
fluid connection type: 0.25 inch NPT external UL 508
short-circuit protection: 20 A cartridge fuse gG
materials in contact with fluid: Zinc plated steel or equivalent flange, Nitrile (Buna-N) or equivalent rubber diaphragm
Material: Polypropylene Cover, Noryl thermoplastic resin or equivalent Cover
Operating position: Vertical position
motor power kW: 1.5 kW 2 hp)230 V AC, 1 phase, 1.1 kW 1.5 hp)115 V AC, 1 phase, 1.5 kW 2 hp)115 V AC, 3 phase, 2.2 kW 3 hp)230 V AC, 3 phase, 0.75 kW 1 hp)460 V AC, 3 phase, 0.75 kW 1 hp)575 V AC, 3 phase
electrical durability: 100000 cycles 10 cyc/mn
Mechanical durability: 300000 cycles
Terminal block type: 4 terminals
Maximum operating rate: 10 cyc/mn
[Ui] rated insulation voltage: 575 V UL 508
Net Weight: 1 lb(US) (0.45 kg)
Repeat accuracy: +/- 3 %
Terminals description ISO n°1: L2-T2, L1-T1
Width: 2.78 in (70.61 mm)
Height: 2.8 in (71.12 mm)
Depth: 3.76 in (95.50 mm)
Factory modification: -
standards: UL 508, CE, NSF ANSI 61 Annex G
Ambient Air Temperature for Operation: -33…257 °F (-36…125 °C)
Ambient Air Temperature for Storage: -33…257 °F (-36…125 °C)
Protective treatment: None
NEMA degree of protection: NEMA 3R UL 50
IP degree of protection: IP20 conforming to IEC 60529
Product Certifications: UL listed file E12158, CSA file LR25490
Category: 21534-9013 FSG,FYG (INDIVIDUAL - CP7I)
Discount Schedule: CP7I
GTIN: 785901848530
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 10.16 in (25.806 cm)
Package 1 Width: 4.00 in (10.16 cm)
Package 1 Length: 25.81 in (65.548 cm)
Package 1 Weight: 16.00 oz (453.592 g)
Warranty: 18 months
