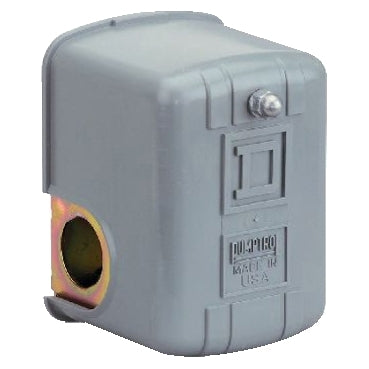

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9013FSG2J18

Documents and manuals

SQUARE D 9013FSG2J18 Documents

Overview

Details for 9013FSG2J18

20-50# 2Pole Pressure Switch: The NCO-9013FSG2J18 2Pole Pressure Switch from Square D is a robust and reliable solution for industrial pressure control applications. Its sturdy construction ensures dependable operation, while the precise switching mechanism provides accurate pressure sensing and control. Key Features: * Pressure range: 20-50# * Durable construction for extended service life * Compact design for easy installation * Accurate switching for precise pressure control * Trusted brand: Square D, renowned for quality industrial products Applications: * Industrial pressure control systems * Hydraulic and pneumatic applications * Pumps and compressors * Process control and automation With its superior performance and reliability, the NCO-9013FSG2J18 2Pole Pressure Switch from our HVAC supply store is an excellent choice for demanding industrial applications. Order now for the best prices and fast shipping! This product is part of the Nema Pressure Switches range, an offer of water pump switches. This water pump switch has 2 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts and a pressure setting value of 20psi to 50psi. The pump switch with a pressure sensor size of 65psi (5psi to 45psi), an adjustable range on rising pressure of 20psi to 65psi and approximate adjustable differential of 15psi to 30psi. It is furnished with screw clamp terminals for electrical connection and 0.25inch NPSF internal for fluid connection. This switch has a diaphragm actuator which can be operated from any position and adjustable differential scale for internal settings. The enclosure is made of polypropylene. It is available in size of 2.78inch (W) x 3.76inch (D) x 2.8inch (H) and weighs 1lb. It is suitable for all types of pumps such as jets, submersible, reciprocating etc. Suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses and injection moulders. It is an IP20 and NEMA 1 rated product. This product is certified by CE, CSA and UL. Meets UL 508 and NSF ANSI 61 Annex G standards. Every pressure switch has two operating points, one on rising pressure and one of falling pressure. The operating point on rising pressure is referred to as the TRIP POINT or cut out for pumps and compressors. Power pressure switch rated for the direct control of motors in pump applications. Rugged, robust construction provides a long life and years of uninterrupted, worry-free service. Electromechanical switch to monitor and control pressure conditions for industrial and end-users applications.

Specifications

Range of Product
Square D Pumptrol
Pressure sensor name
9013FS
pressure sensor size
65 psi (448.16 kPa) 5…45 psi (34.47…310.26 kPa))
Value of setting
20...50 psi
Electrical circuit type
Power circuit
Product Specific Application
Control electrically driven water pumps
Quantity per Set
1
Type of Packing
Individual
Pressure sensor type
Electromechanical pressure switch
controlled fluid
Fresh water -22…257 °F (-30…125 °C))
Adjustable range on rising pressure
20…65 psi (137.90…448.16 kPa)
Approximate adjustable differential
15…30 psi (103.42…206.84 kPa)
Destruction pressure
220 psi (1516.85 kPa)
Pressure actuator
Diaphragm
Pressure switch type of operation
Regulation between 2 thresholds
Scale type
Adjustable differential
Setting
Internal
Local display
Without
contacts type and composition
2 NC, snap action, DPST-DB, Form YY
cable entry number
2 0.88 in (22.35 mm) cable entries with 0.84 in across flats UL 508
electrical connection
Screw-clamp terminals 10 AWG, Screw-clamp terminals 5.261 mm²
fluid connection type
0.25 inch NPSF internal UL 508
short-circuit protection
20 A cartridge fuse gG
materials in contact with fluid
Zinc plated steel or equivalent flange, Nitrile (Buna-N) or equivalent rubber diaphragm
Material
Polypropylene Cover, Noryl thermoplastic resin or equivalent Cover
Operating position
Any position
motor power kW
1.5 kW 2 hp)230 V AC, 1 phase, 1.1 kW 1.5 hp)115 V AC, 1 phase, 1.5 kW 2 hp)115 V AC, 3 phase, 2.2 kW 3 hp)230 V AC, 3 phase, 0.75 kW 1 hp)460 V AC, 3 phase, 0.75 kW 1 hp)575 V AC, 3 phase
electrical durability
100000 cycles 10 cyc/mn
Mechanical durability
300000 cycles
Terminal block type
4 terminals
Maximum operating rate
10 cyc/mn
[Ui] rated insulation voltage
575 V UL 508
Net Weight
1 lb(US) (0.45 kg)
Repeat accuracy
+/- 3 %
Terminals description ISO n°1
L1-T1, L2-T2
Width
2.78 in (70.61 mm)
Height
2.8 in (71.12 mm)
Depth
3.76 in (95.50 mm)
Factory modification
-
standards
NSF ANSI 61 Annex G, UL 508, CE
Ambient Air Temperature for Operation
-33…257 °F (-36…125 °C)
Ambient Air Temperature for Storage
-33…257 °F (-36…125 °C)
Protective treatment
None
NEMA degree of protection
NEMA 1 UL 50
IP degree of protection
IP20 conforming to IEC 60529
Product Certifications
CSA file LR25490, UL listed file E12158
Category
21534-9013 FSG,FYG (INDIVIDUAL - CP7I)
Discount Schedule
CP7I
GTIN
785901159018
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.80 in (7.112 cm)
Package 1 Width
3.80 in (9.652 cm)
Package 1 Length
4.00 in (10.16 cm)
Package 1 Weight
13.44 oz (381.018 g)
Unit Type of Package 2
CAR
Number of Units in Package 2
50
Package 2 Height
8.60 in (21.844 cm)
Package 2 Width
15.20 in (38.608 cm)
Package 2 Length
20.80 in (52.832 cm)
Package 2 Weight
44.98 lb(US) (20.403 kg)
Warranty
18 months
