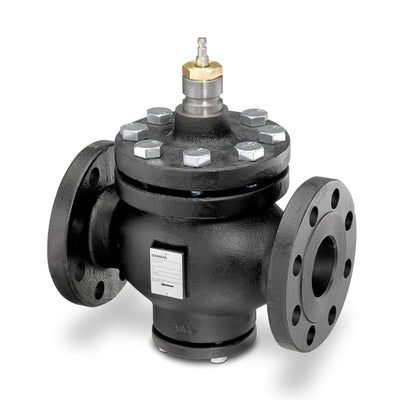

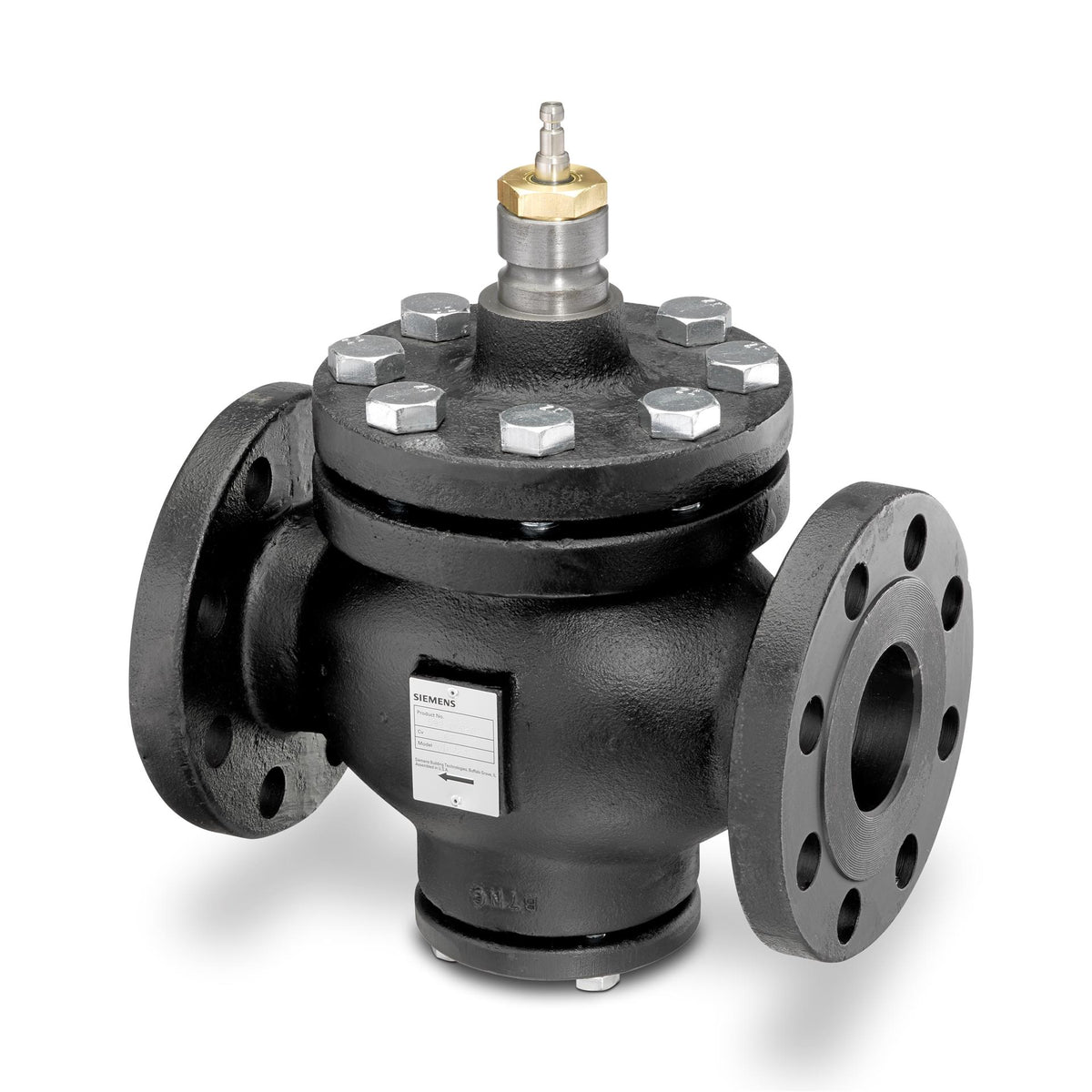

599-06629 | Flowrite two-way 6-inch high close-off valve. ANSI 250, NC, SS trim. | Siemens Building Technology
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06629
Documents and manuals
Siemens Building Technology 599-06629 Documents
Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info
Overview
Details for 599-06629
6" O ANSI 250 NC SS Valve (599-06629) by Siemens Building Technology
Siemens 599-06629 is a 6" O ANSI 250 NC SS valve that is designed for use in a variety of industrial applications. This valve is made of stainless steel and has a normally closed configuration. It has a pressure rating of 250 psi and a temperature rating of 180 degrees Fahrenheit. This valve is also corrosion-resistant and has a long service life.
The Siemens 599-06629 is ideal for use in applications where a reliable and durable valve is required. It is suitable for use in both indoor and outdoor applications and can be used in a variety of industries, including the chemical, petrochemical, and food processing industries.
If you are looking for a high-quality valve that will provide years of reliable service, the Siemens 599-06629 is an excellent choice. Contact our HVAC supply store today for the best prices and fast shipping on all your valve needs!
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- Flanged
- Connecting thread
- Universal bonnet for direct-coupled actuators
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 150
- Leakage rate
- ANSI Leakage Class IV
- Leakage rate, class
- ANSI Leakage Class IV
- Rangeability
- 100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 40 mm, 1.5 " mm
- Stroke, mm
- 40 mm
- Dimensions (W x H x D)
- 18.62 x 20.87 x 12.52 in
