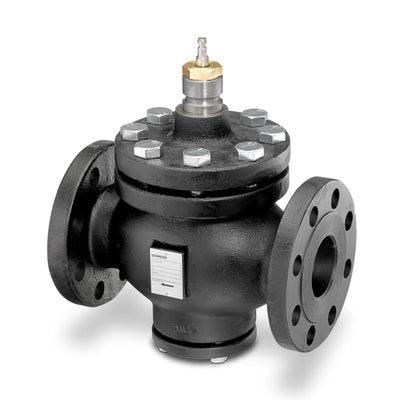

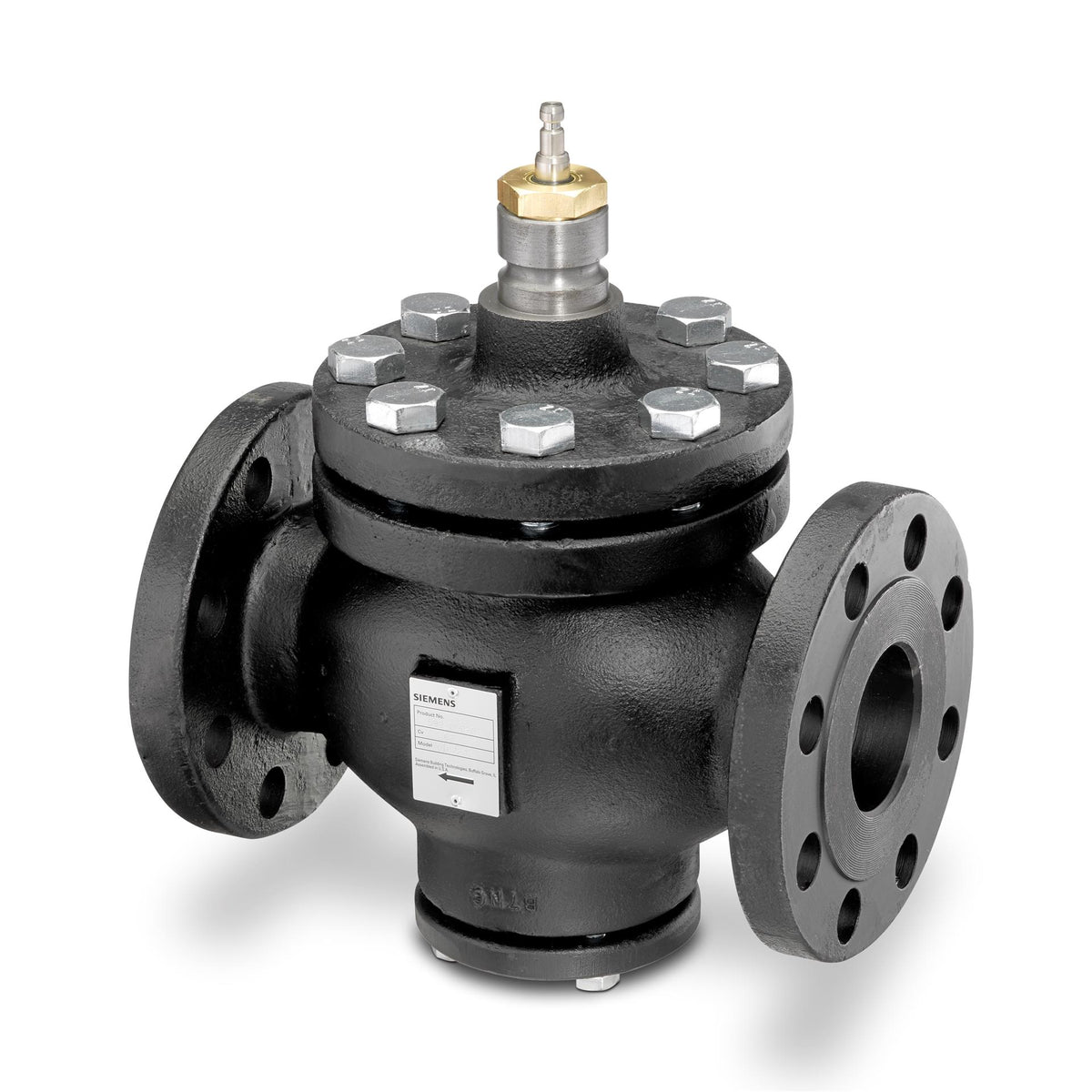

599-06626 | Flowrite two-way 3-inch high close-off valve. ANSI 250, NC, SS trim. | Siemens Building Technology
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06626
Documents and manuals
Siemens Building Technology 599-06626 Documents
Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info
Overview
Details for 599-06626
3" O ANSI 250 NC SS [sku] from Siemens Building Technology is a high-performance valve designed for demanding industrial applications. Crafted from durable stainless steel, this valve offers exceptional corrosion resistance and longevity. Its 3-inch orifice and ANSI 250 pressure rating make it suitable for handling fluids under high pressure and flow conditions.
The NC (Normally Closed) configuration ensures that the valve remains closed until an electrical signal opens it, allowing for precise and reliable control of fluid flow. Engineered with superior sealing capabilities, it minimizes leakage and ensures optimal performance.
This valve is a reliable choice for a variety of industrial applications, including chemical processing, power generation, and water treatment. Its robust construction and precision engineering guarantee efficient and trouble-free operation.
Our HVAC supply store is your trusted source for industrial supplies. We offer competitive pricing and fast shipping on all our products. Order your 3" O ANSI 250 NC SS valve today and experience the quality and reliability of Siemens Building Technology.
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- Flanged
- Connecting thread
- Universal bonnet for direct-coupled actuators
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 80
- Leakage rate
- ANSI Leakage Class IV
- Leakage rate, class
- ANSI Leakage Class IV
- Rangeability
- 100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 20 mm, 0.75 " mm
- Stroke, mm
- 20 mm
- Dimensions (W x H x D)
- 12.52 x 15.79 x 8.27 in
