599-06625 | Flowrite two-way 2 1/2 inch high close-off valve. ANSI 250, NC, SS trim. | Siemens Building Technology

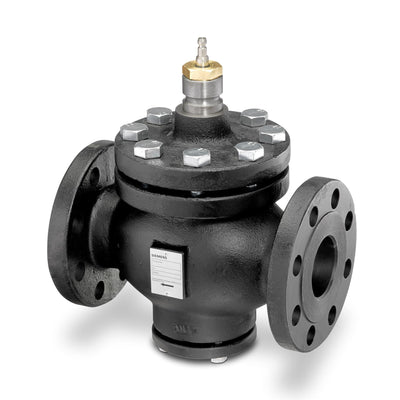

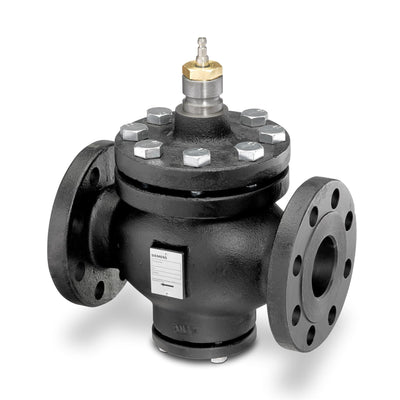

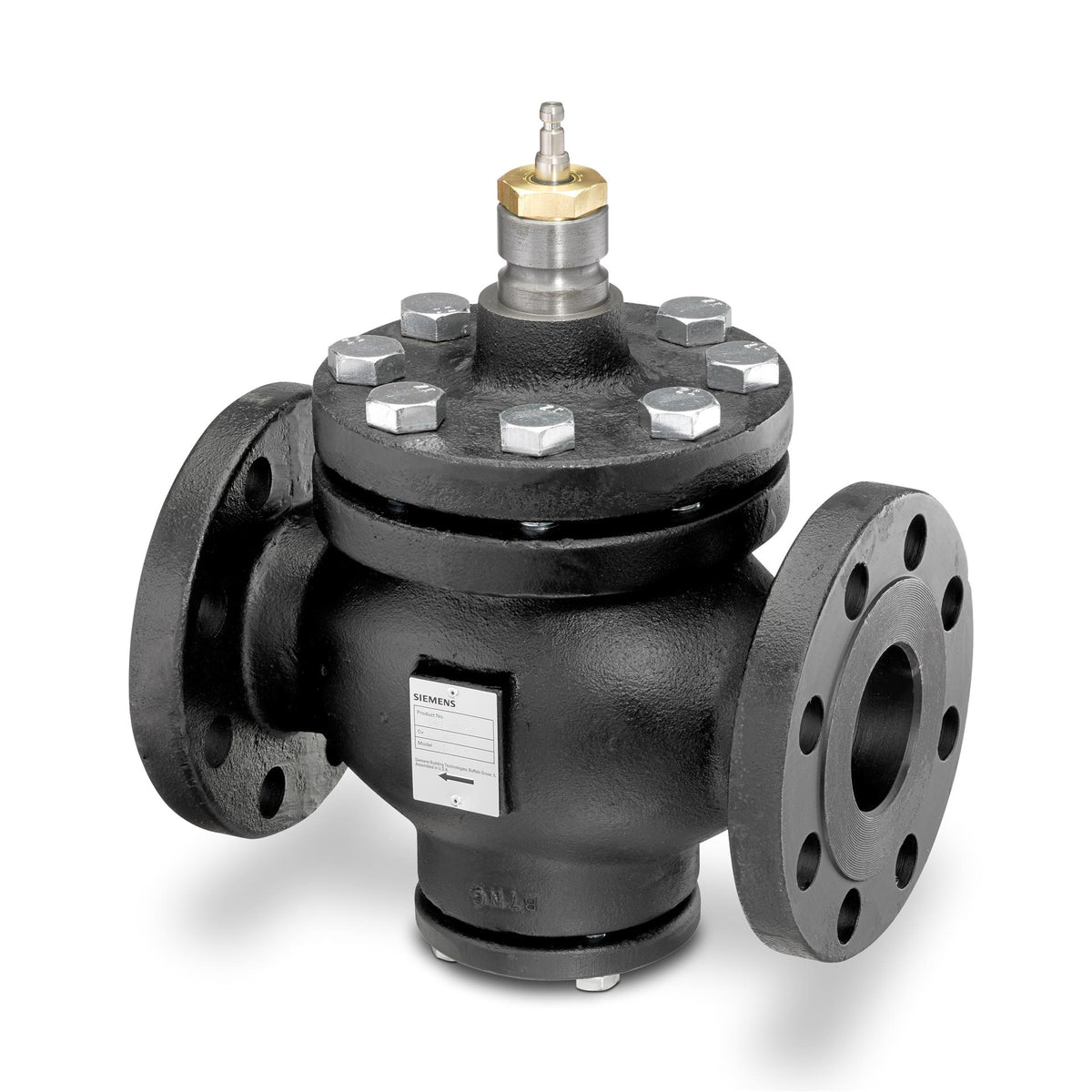

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06625
Documents and manuals
Siemens Building Technology 599-06625 Documents
Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info
Overview
Details for 599-06625
2.5" O ANSI 250 NC SS [sku: 599-06625]The Siemens Building Technology 2.5" O ANSI 250 NC SS is a durable and reliable valve designed for industrial applications where precise flow control is crucial. This resilient valve is crafted from stainless steel, providing excellent corrosion resistance and longevity under demanding operating conditions.
Key Features:
- Nominal size: 2.5 inches
- ANSI Class 250
- Normally closed (NC) configuration
- Stainless steel construction for enhanced durability
- Meets industry standards for quality and performance
Applications:
The Siemens Building Technology 2.5" O ANSI 250 NC SS valve is ideally suited for various industrial applications, including:
- Chemical processing
- Water treatment
- Power generation
- Pulp and paper industry
- Petrochemical industry
With its robust construction, precise control, and adaptability to diverse industrial settings, the Siemens Building Technology 2.5" O ANSI 250 NC SS valve is a trusted choice for engineers and maintenance professionals seeking dependable flow management solutions. Our HVAC supply store offers the most competitive prices and prompt shipping for your industrial supply needs. Contact us today to learn more and place your order!
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- Flanged
- Connecting thread
- Universal bonnet for direct-coupled actuators
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 65
- Leakage rate
- ANSI Leakage Class IV
- Leakage rate, class
- ANSI Leakage Class IV
- Rangeability
- 100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 20 mm, 0.75 " mm
- Stroke, mm
- 20 mm
- Dimensions (W x H x D)
- 11.5 x 14.37 x 7.52 in
