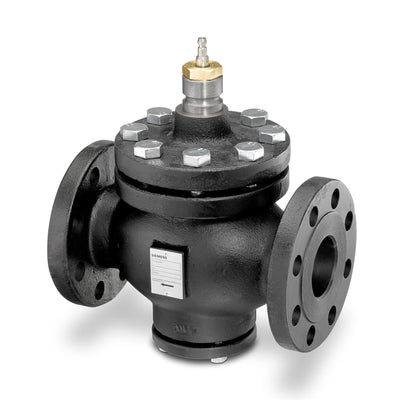

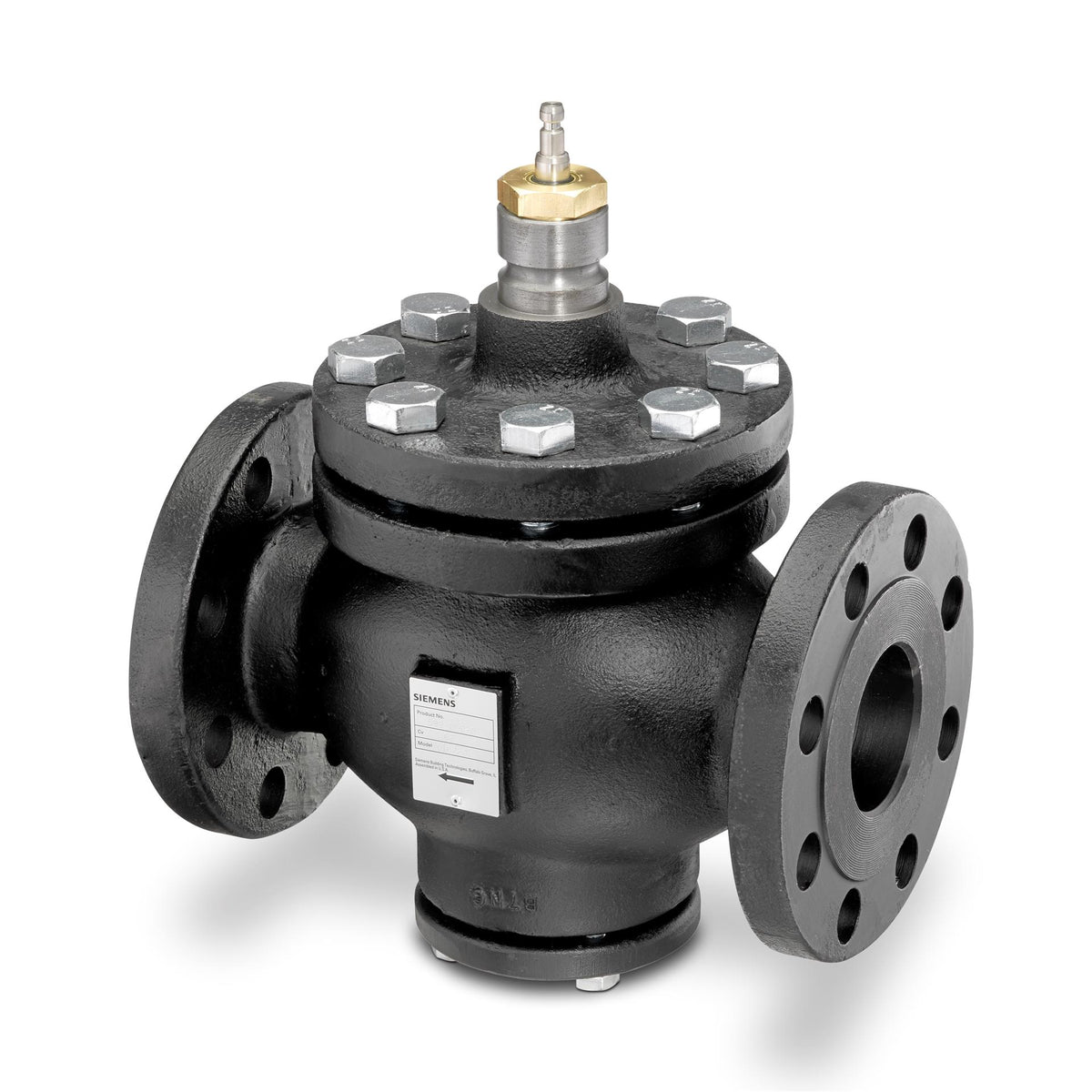

599-06624 | Flowrite two-way 6-inch high close-off valve. ANSI 250, NO, SS trim. | Siemens Building Technology
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06624
Documents and manuals
Siemens Building Technology 599-06624 Documents
Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info
Overview
Details for 599-06624
6" O ANSI 250 NO SS
The Siemens Building Technology 599-06624 check valve is a 6-inch O-ring ANSI 250 NO SS check valve, designed for industrial fluid systems. Constructed with durable stainless steel, it features a resilient O-ring seal for positive sealing and a spring-loaded check mechanism to prevent backflow. Its compact design makes it suitable for space-constrained installations, and its high-pressure rating ensures reliable operation in demanding applications.
Key Features:
* 6-inch size
* O-ring seal for tight sealing
* ANSI 250 pressure rating for high-pressure systems
* Spring-loaded check mechanism for reliable backflow prevention
* Stainless steel construction for corrosion resistance
* Compact design for space-saving installations
Applications:
* Water and wastewater systems
* Process piping
* Industrial fluid systems
* High-pressure applications
Shop now at our HVAC supply store for the best prices and fast shipping on all your industrial products!
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- Flanged
- Connecting thread
- Universal bonnet for direct-coupled actuators
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 150
- Leakage rate
- ANSI Leakage Class IV
- Leakage rate, class
- ANSI Leakage Class IV
- Rangeability
- 100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 40 mm, 1.5 " mm
- Stroke, mm
- 40 mm
- Dimensions (W x H x D)
- 18.62 x 20.16 x 12.52 in
