599-06622 | Flowrite two-way 4- inch high close-off valve. ANSI 250, NO, SS trim. | Siemens Building Technology

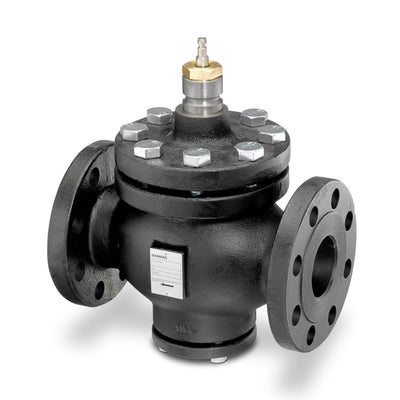

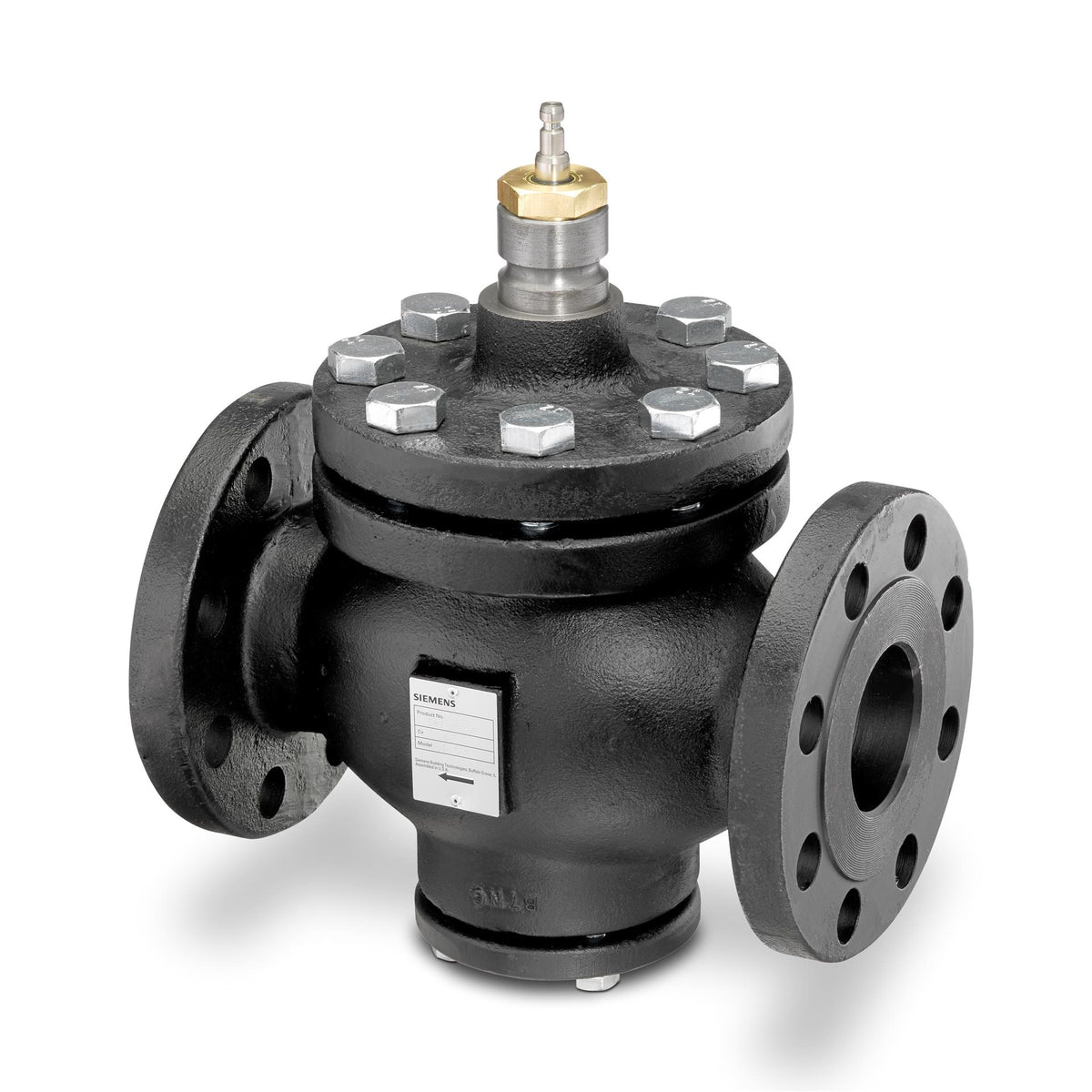

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06622
Documents and manuals
Siemens Building Technology 599-06622 Documents
Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info
Overview
Details for 599-06622
4" O ANSI 250 NO SS: 599-06622 by Siemens Building Technology
Constructed from durable stainless steel, the 599-06622 is a 4" ANSI 250 NO SS product. With its resilient construction, this product is ideal for industrial engineers and maintenance professionals seeking a robust and reliable solution. This Siemens Building Technology product is designed for long-lasting performance and efficiency, making it an excellent choice for various industrial applications.
Our HVAC supply store is your go-to source for the 599-06622 and other industrial products. With our commitment to providing exceptional customer service and competitive prices, we ensure you get the best value for your money. Shop now and experience the Our HVAC supply store difference!
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- Flanged
- Connecting thread
- Universal bonnet for direct-coupled actuators
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 100
- Leakage rate
- ANSI Leakage Class IV
- Leakage rate, class
- ANSI Leakage Class IV
- Rangeability
- 100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 40 mm, 1.5 " mm
- Stroke, mm
- 40 mm
- Dimensions (W x H x D)
- 14.49 x 16.97 x 10 in
