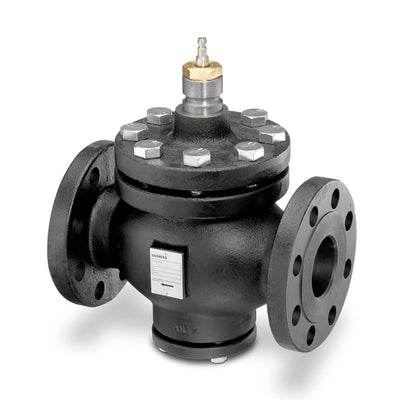

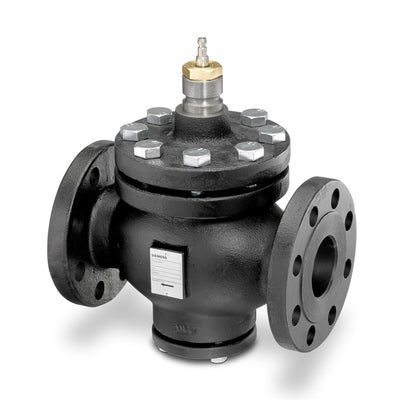

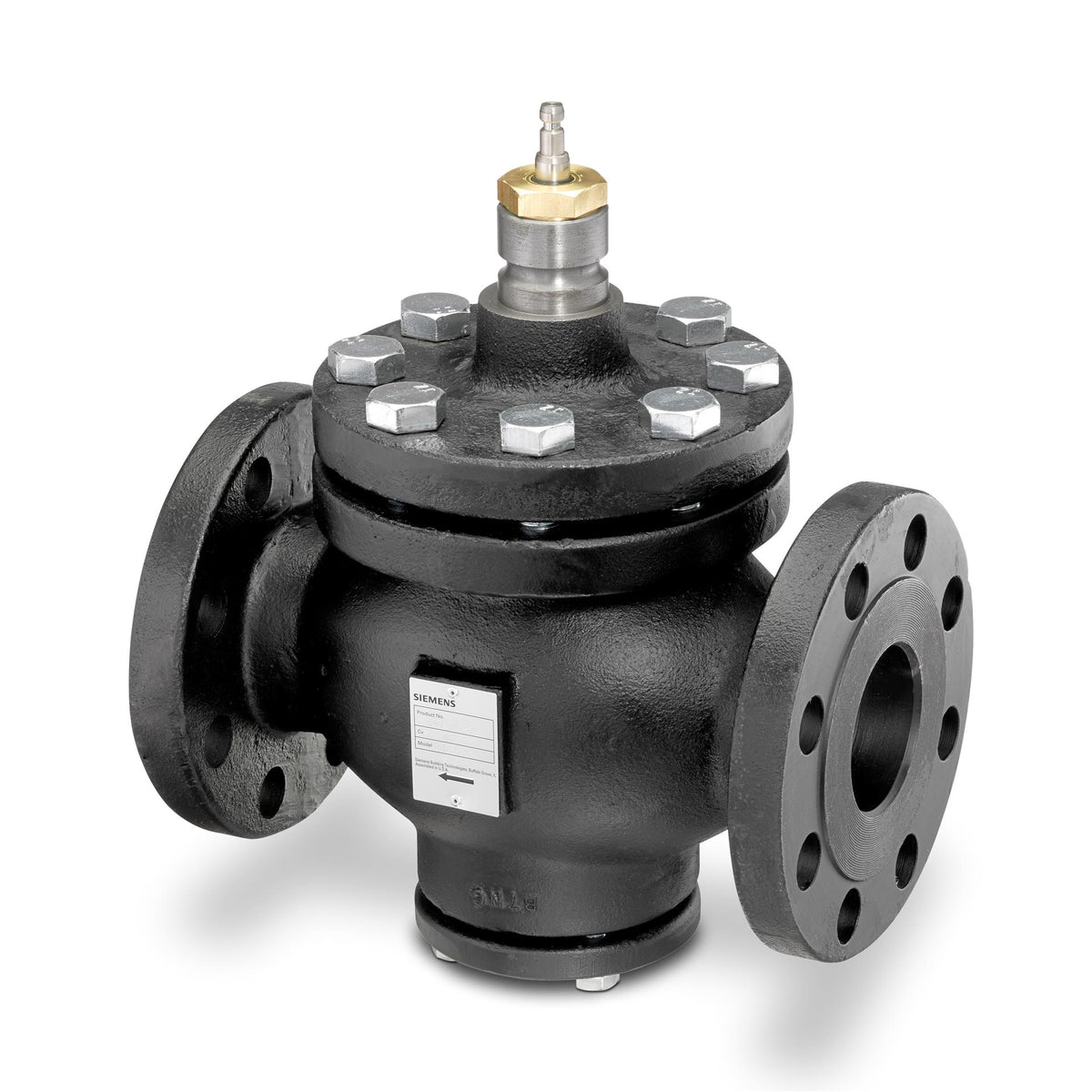

599-06621 | Flowrite two-way 3-inch high close-off valve. ANSI 250, NO, SS trim. | Siemens Building Technology
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06621
Documents and manuals
Siemens Building Technology 599-06621 Documents
Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info
Overview
Details for 599-06621
3" O ANSI 250 NO SS: The Siemens Building Technology 599-06621 is a 3-inch O ANSI 250 NO SS valve, designed for industrial applications. Made of durable stainless steel, it offers excellent corrosion resistance and longevity in demanding environments. Its optimized flow path ensures minimal pressure loss and increased efficiency. The valve's precise actuation and reliable performance make it ideal for various industrial processes, including fluid control, pressure regulation, and isolation. With its ANSI Class 250 rating, it can withstand high pressures up to 250 psi, making it suitable for challenging applications. The valve's compact design and easy installation make it a convenient choice for integrators and maintenance professionals. Our HVAC supply store offers competitive pricing and fast shipping, making it your go-to supplier for industrial-grade valves and components.
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- Flanged
- Connecting thread
- Universal bonnet for direct-coupled actuators
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 80
- Leakage rate
- ANSI Leakage Class IV
- Leakage rate, class
- ANSI Leakage Class IV
- Rangeability
- 100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 20 mm, 0.75 " mm
- Stroke, mm
- 20 mm
- Dimensions (W x H x D)
- 12.52 x 15.67 x 8.27 in
