599-06620 | Flowrite two-way 2 1/2 inch high close-off valve. ANSI 250, NO, SS trim. | Siemens Building Technology

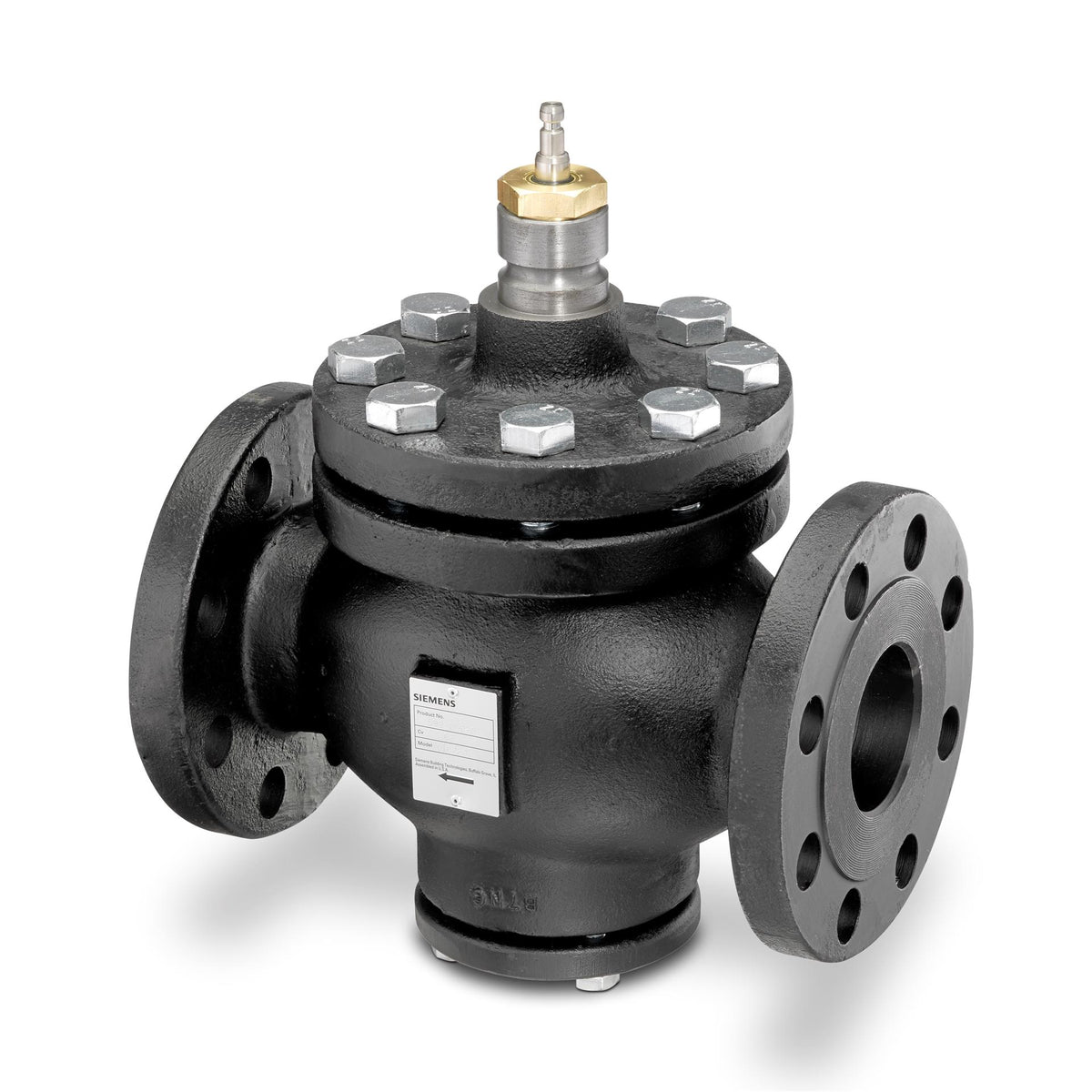

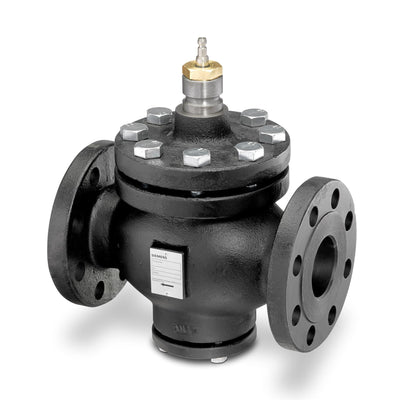

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06620
Documents and manuals
Siemens Building Technology 599-06620 Documents
Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info
Overview
Details for 599-06620
The Siemens Building Technology 599-06620 2.5" O ANSI 250 NO SS is a durable and reliable valve designed for demanding industrial applications. Constructed from stainless steel, this valve offers excellent corrosion resistance, making it suitable for use in harsh environments. Its 2.5" orifice size and ANSI 250 pressure rating ensure optimal flow capacity and pressure regulation. The valve features a normally open (NO) operation, allowing for quick and efficient flow control.
This valve is engineered for precise control and is commonly used in various industrial settings, including chemical processing, power generation, and water treatment facilities. Its compact design facilitates easy installation, while its robust construction ensures long-term performance. Our HVAC supply store offers the Siemens Building Technology 599-06620 2.5" O ANSI 250 NO SS at competitive prices, along with fast shipping and exceptional customer support.
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- Flanged
- Connecting thread
- Universal bonnet for direct-coupled actuators
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 65
- Leakage rate
- ANSI Leakage Class IV
- Leakage rate, class
- ANSI Leakage Class IV
- Rangeability
- 100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 20 mm, 0.75 " mm
- Stroke, mm
- 20 mm
- Dimensions (W x H x D)
- 11.5 x 14.45 x 7.48 in
