NFXUP-S N4 | Damper Actuator | 90 in-lb | Spg Rtn | 24 to 240V (UP) | On/Off | SW | NEMA 4 | Belimo

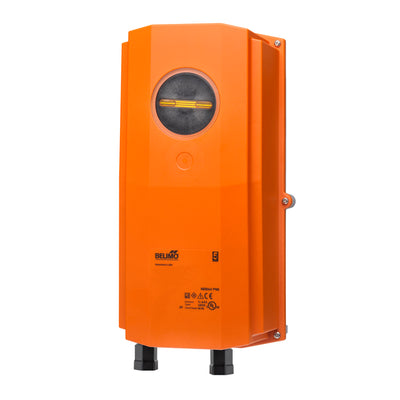

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NFXUP-S N4
Documents and manuals
Belimo NFXUP-S N4 Documents
Overview
Details for NFXUP-S N4
Damper Actuator | 90 in-lb | Spg Rtn | 24 to 240V (UP) | On/Off | SW | NEMA 4
For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp.Specifications
- Actuator Type
- Spring return
- Angle of Rotation
- 95
- Auxiliary Switches
- 2 x SPDT
- Control Type
- On/Off
- Degree of Protection
- IP66 NEMA 4X UL Enclosure Type 4X
- Direction of Rotation (Fail-Safe)
- Reversible with cw/ccw mounting
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 2.5 W
- Power Consumption (Running)
- 6 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 75 s / 90B0
- Safety Function
- YES
- Torque
- 90 in-lb [10 Nm]
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
