GLB161.1Q | Damper Actuator | Non-Spring Return | 24 VAC | 0-10Vdc / 2-10Vdc | 88 lb-in | Siemens
$189.68
Brand: SiemensSKU: GLB161.1Q
List Price
$499.16
$189.68
Availability: IN STOCK
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Email

GLB161.1Q | Damper Actuator | Non-Spring Return | 24 VAC | 0-10Vdc / 2-10Vdc | 88 lb-in | Siemens

Siemens | GLB161.1Q

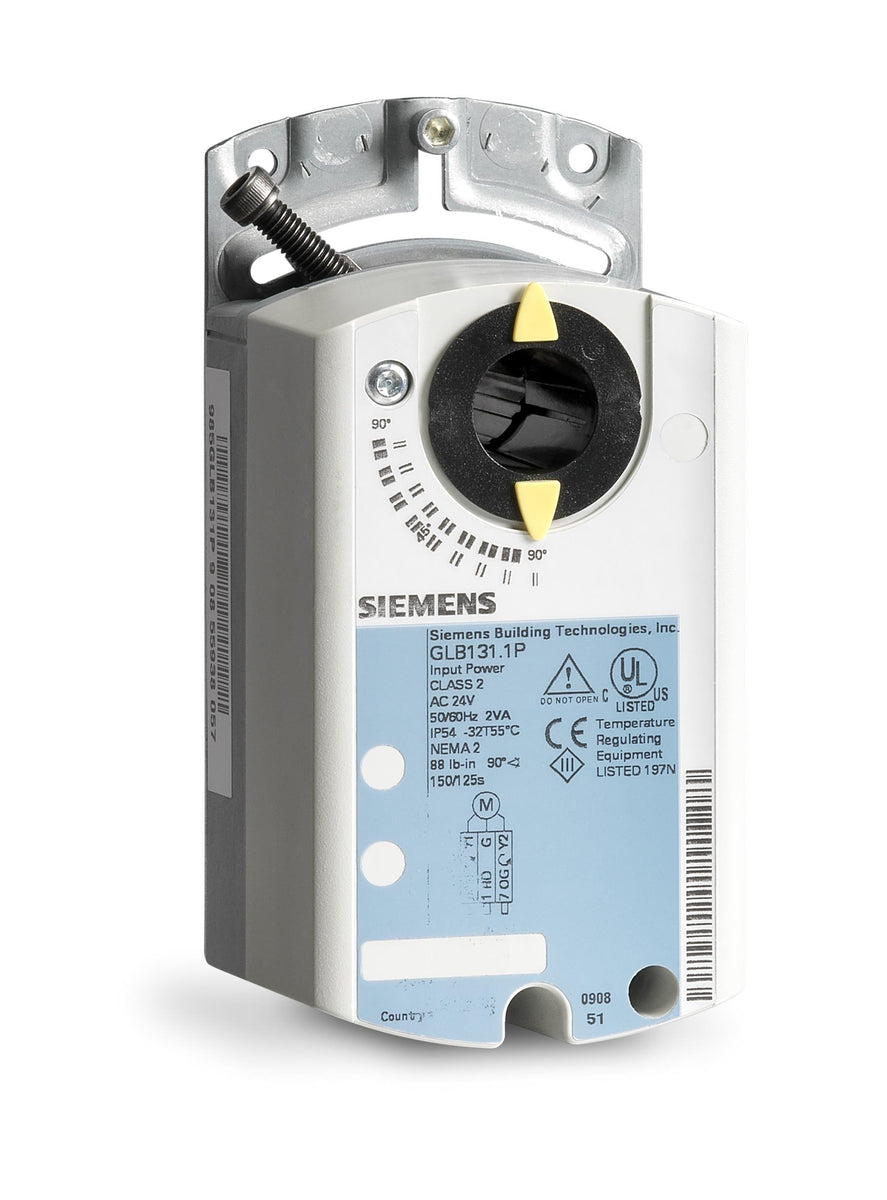

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GLB161.1Q
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens GLB161.1Q Documents

Datasheet(GDEGLB OpenAir Electronic Damper Actuators GLB Series Enhanced Non-spring Return Rotary Technical Instructions)Datasheet(GDEGLB OpenAir GLB Series. Enhanced Non-spring Return. 88 lb-in. Direct Coupled. Electronic Damper Actuators Submittal Sheet)Environmental Declaration(Damper actuator)Installation instruction(GDEGLB OpenAir Electronic Damper Actuator. GDB / GLB Rotary. Non Spring Return Installation Instructions)Other datasheet(Accessories and spare parts for air damper actuators ASK...)Dimension Drawings(Rotary air damper actuator without spring return GDB..) Installation Instructions More Info

Overview

Details for GLB161.1Q

Damper Actuator | Non-Spring Return | 24 VAC | 0-10Vdc / 2-10Vdc | 88 lb-in

OpenAir™ GLB Series Electric Damper Actuator, rotary, non-spring return, 88 lb-in (10 Nm), 24 Vac, 0 to 10 Vdc control, 90 sec run time, 6 ft plenum cable

Specifications

Control or Fire/Smoke Type
Control Damper
Torque
88 lb-in
Positioning time
50 Hz:150 s, 60 Hz:125 s
Position feedback
Yes
Power consumption
3.3 VA
Ambient humidity, operation
95 % r.h.
Angular rotation
90°
Operating voltage
19.2…28.8 V24 V#AC/DC
Frequency
50/60 Hz
Cable length
6 ft
Dimensions (W x H x D)
2.75 x 5.44 x 2.38 in
Material, housing
NEMA Type 2, IP54 according to EN 60 529
Degree of protection
IP56
