B240+AFRB24-SR | CCV | 1.5" | 2 Way | 37 Cv | w/ Spg Rtn | 24V | 2-10V | Belimo

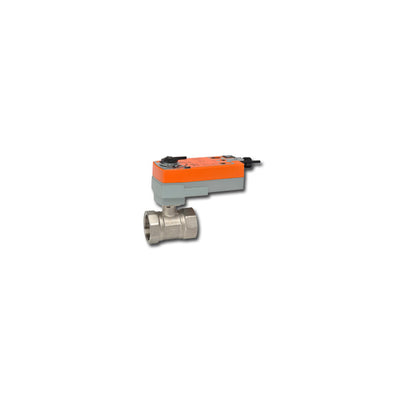

The photo is for representation purposes only and may not be a photo of product being purchased.
Overview
Details for B240+AFRB24-SR
CCV | 1.5" | 2 Way | 37 Cv | w/ Spg Rtn | 24V | 2-10V
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 37
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 1.5" [40]
Actuator specifications
Specifications
- Item Number
- B240+AFRB24-SR
- Brand
- Belimo
- Control Input
- Modulating
- Control Valves Type
- CCV
- Cv / GPM
- 37 Cv
- Spring Return
- Spring Return
- Valve Size
- 1.5" - 2 Way
- Voltage
- 24V
- Actuator Type
- Spring return
- Control Type
- DC 2...10 V
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 5.5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 95 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
