MS41-7153-502 | Damper Actuator | 133 in-lb | Spg Rtn | 24V | Modulating | SW | Schneider Electric

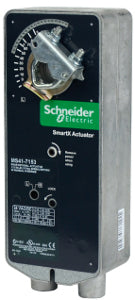

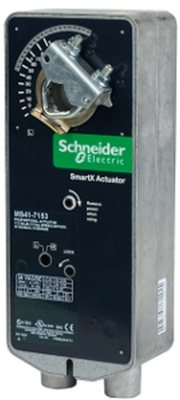

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MS41-7153-502

Jump to: Documents Overview Specifications

Documents and manuals

Schneider Electric MS41-7153-502 Documents

Datasheet More Info

Overview

Details for MS41-7153-502

Actuator: (MS41-7153-502):

Actuator Type: Electric
Control Signal: Proportional
Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
Loss of Power Type: Spring Return
Power Input Voltage: 22 to 30 VDC, 24 VAC/VDC
Leads and Connections: 3 ft Appliance
Torque: 133 in-lb
Mechanical Movement: Rotary
Auxiliary Switch: 2 SPDT
Protection Rating: NEMA 1, NEMA 2
Product Line: Schneider Electric
Product Range: SmartX Actuator
Product Series: Mx4x-7xxx
Actuator Use: Dampers, Globe Valves

Product Alert: Linkage required for Globe Valve Assembly use. NEMA 2 with conduit connector in the down position. Designed for controlling air dampers in building systems that require fail safe return, with two position, floating or proportional control.

Specifications

Item Number	MS41-7153-502
Brand	Schneider Electric
Actuator Type	Damper
Control Input	Modulating
End Switch	Yes
Spring Return	Spring Return
Torque	133 in-lb
Voltage	24V
