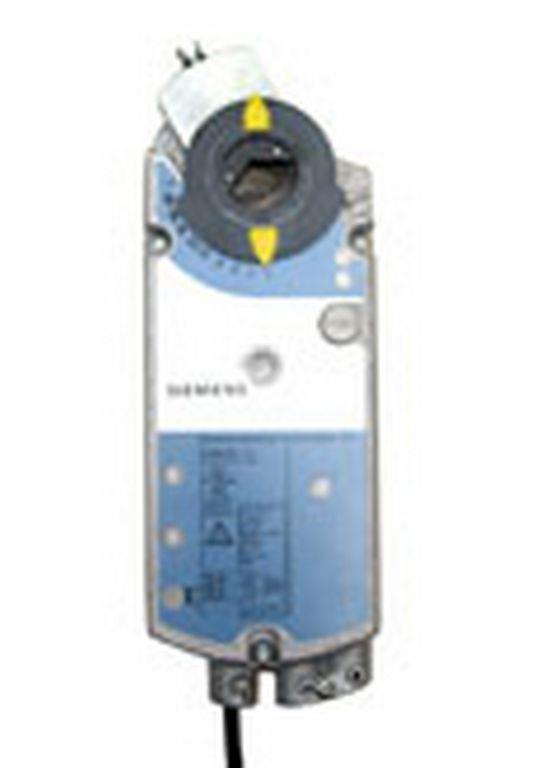

GIB166.1U | Damper Actuator | Non-Spring Return | 24 VAC | 0-10 Vdc | 310 lb-in | SW | Siemens
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GIB166.1U
Documents and manuals
Siemens GIB166.1U Documents
Datasheet(OpenAir™ GIB Series NSR Damper . Submittal Sheet)Datasheet(OpenAir GBB / GIB Series Electronic Damper Actuators Non Spring Return. 24 Vac Modulating Control Technical Instructions)Datasheet(OpenAir Damper Actuator Spring Return Electronic Damper Actuators Competitive Wiring Guide)Installation instruction(OpenAir GBB / GIB Series Non Spring Return Rotary Electronic Damper Actuators Installation Instructions)Other datasheet(Accessories and spare parts for air damper actuators ASC... ASK..)Dimension Drawings(Rotary air damper actuator without spring return GBB..) Installation Instructions More Info
Overview
Details for GIB166.1U
Damper Actuator | Non-Spring Return | 24 VAC | 0-10 Vdc | 310 lb-in | SW
OpenAir™ GIB Series Electric Damper Actuator, rotary, non-spring return, 310 lb-in (35 Nm), 24 Vac/dc, 0 to 10 Vdc control, 125 sec run time, dual auxiliary switchesSpecifications
- Control or Fire/Smoke Type
- Control Damper
- Torque
- 310 lb-in
- Spring return function
- Non-spring return functionality
- Positioning time
- 50 Hz:150 s, 60 Hz:125 s
- Position feedback
- Yes
- Power consumption
- Running: 8 VA / 8 W, Holding: 1.1 W
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 90°
- Operating voltage
- 24 VAC/DC
- Frequency
- 50/60 Hz
- Auxiliary switch
- 2
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 3.94 x 11.81 x 2.69 in
- Material, housing
- NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
- Degree of protection
- IP82
