VT3323H13A020 | VB: 3/4 in, 3W Mix/Div, Zone, NPT, BR, 4 cv, 30 PSI; Act (AH13A020): Elec, 2Pos, SR, NC, 24 VAC, App, IP31 | Schneider Electric

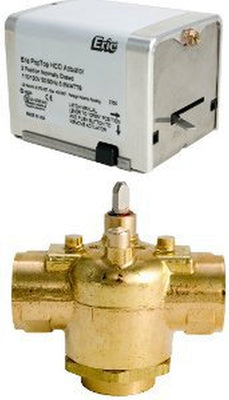

Schneider Electric | VT3323H13A020
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VT3323H13A020
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Schneider Electric VT3323H13A020 Documents

Datasheet Installation Instructions More Info

Overview

Details for VT3323H13A020

VB: 3/4 in, 3W Mix/Div, Zone, NPT, BR, 4 cv, 30 PSI; Act (AH13A020): Elec, 2Pos, SR, NC, 24 VAC, App, IP31

Valve Assembly:
  • Body Size: 3/4 in
  • Configuration: 3-Way Mixing/Diverting
  • Type: Zone
  • Connection: NPT
  • Material Trim: Brass
  • Flow Coefficient: 4 cv
  • Control Media: Glycol 25 to 50% and Water
  • Product Line: Schneider Electric
  • Product Range: Erie PopTop
  • Product Series: VT3
Product Alert: Not for use with steam
  • Close-Off Pressure: 30 PSI
  • Actuator Type: Electric
  • Control Signal: 2-Position (On/Off)
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally closed
  • Power Input Voltage: 24 VAC
  • Leads and Connections: 18 in Appliance
  • Mechanical Movement: Rotary
  • Protection Rating: IP31
  • Product Line: Schneider Electric
  • Product Series: AH
  • Actuator Use: Zone Valves
    • Assembly Components:
    • Valve Body: VT3323
    • Valve Linkage: None, tool-less connection
    • Actuator: AH13A020
    • Actuator Range: Erie PopTop

    Product Alert: Not for use with steam

    Specifications

    Item Number VT3323H13A020
    Brand Schneider Electric
    Control Input On/Off
    Control Valves Type Zone Valve
    CV / GPM 4 Cv
    End Switch No
    Housing NEMA 1
    Spring Return Spring Return
    Valve Size 0.75" - 3 Way
    Voltage 24V
