GQD126.1P | Damper Actuator | Spring Return | 24 VAC/DC | On/Off | 20 lb-in | SW | Siemens

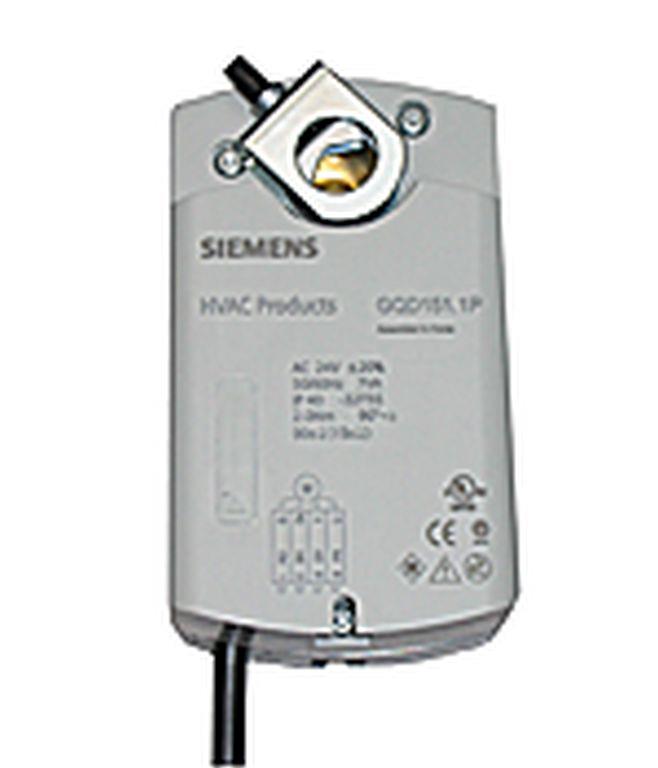

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GQD126.1P
Documents and manuals
Siemens GQD126.1P Documents
Overview
Details for GQD126.1P
Damper Actuator | Spring Return | 24 VAC/DC | On/Off | 20 lb-in | SW
OpenAir™ GQD Series Electric Damper Actuator, rotary, spring return, 20 lb-in (2 Nm), 24 Vac/dc, 2-position control, 30 sec run time, auxiliary switches, plenum ratedSpecifications
- Control or Fire/Smoke Type
- Control Damper
- Torque
- 20 lb-in
- Positioning time
- Open:30 s, Close:15 s
- Position feedback
- No
- Power consumption
- Running: 6.5 VA /4.5W, Holding: 4 VA / 2.5 W
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 90°
- Operating voltage
- 24 VAC/DC
- Frequency
- 50/60 Hz
- Auxiliary switch
- 2
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 2.72 x 5.5 x 2.47 in
- Material, housing
- NEMA 1, plenum-rated rugged plastic, IP40
- Degree of protection
- IP40
