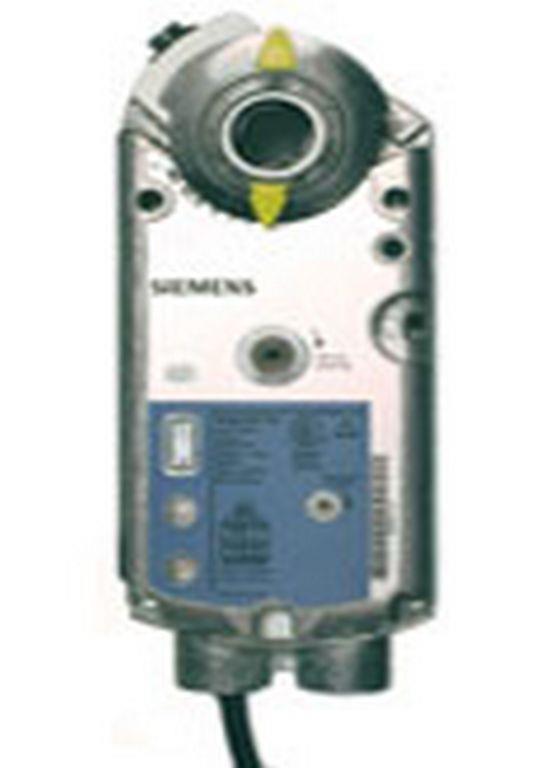

GMA151.1U | Damper Actuator | Spring Return | 24 VAC/DC | 2-10 V | 62 lb-in | Siemens
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GMA151.1U
Documents and manuals
Siemens GMA151.1U Documents
Datasheet(OpenAir GMA Series Spring Return. 24 Vac / Vdc and 120 Vac. 62 lb-in Direct-Coupled Submittal Sheet)Datasheet(OpenAir GMA Series. Spring Return. 62 lb-in. Rotary. Electronic Damper Actuators Technical Instructions)Datasheet(OpenAir Damper Actuator Spring Return Electronic Damper Actuators Competitive Wiring Guide)Installation instruction(OpenAir GMA Series SR Rotary Damper Actuators Installation Instructions)Other datasheet(Accessories and spare parts for air damper actuators ASC... ASK..)Dimension Drawings(Rotary air damper actuator without spring return GEB..) Installation Instructions More Info
Overview
Details for GMA151.1U
Damper Actuator | Spring Return | 24 VAC/DC | 2-10 V | 62 lb-in
OpenAir™ GMA Series Electric Damper Actuator, rotary, spring return, 62 lb-in (7 Nm), 24 Vac/dc, 2 to 10 Vdc control, 90 sec run time, position feedback, signal inversion, inverse actingSpecifications
- Control or Fire/Smoke Type
- Control Damper
- Torque
- 62 lb-in
- Positioning time
- Open:90 s, Close:15 s
- Position feedback
- Yes
- Power consumption
- Running: 5 VA / 3.5 W, Holding: 4 VA / 3 W
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 90°
- Operating voltage
- 19.2…28.8 V24 V#AC/DC
- Frequency
- 50/60 Hz
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 3.25 x 8.38 x 2.38 in
- Material, housing
- NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
- Degree of protection
- IP54
