GDE131.1P | Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 44 lb-in | Siemens
$84.36
Brand: SiemensSKU: GDE131.1P
List Price
$222.01
$84.36
Availability: IN STOCK
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Email

GDE131.1P | Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 44 lb-in | Siemens

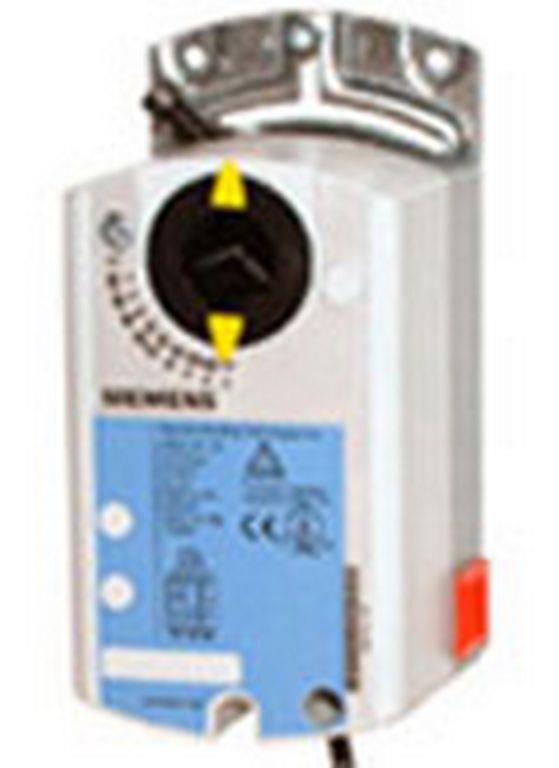

Siemens | GDE131.1P
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GDE131.1P
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens GDE131.1P Documents

Datasheet(GDEGLB OpenAir™ GDE NSR 24 Vac. 44 lb-in Damper Submittal Sheet)Datasheet(GDEGLB OpenAir GDE/GLB Floating Control Damper Actuators Technical Instructions)Datasheet(OpenAir Damper Actuator Spring Return Electronic Damper Actuators Competitive Wiring Guide)Declaration of conformity(Baby Gap Declaration of Conformity)Environmental Declaration(Damper actuator)Installation instruction(GDEGLB OpenAir Electronic Damper Actuator. GDB / GLB Rotary. Non Spring Return Installation Instructions)Installation instruction(OpenAir GDE with TEC Connector Installation Instructions) Installation Instructions More Info

Overview

Details for GDE131.1P

Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 44 lb-in

OpenAir™ GDE Series Electric Damper Actuator, rotary, non-spring return, 44 lb-in (5 Nm), 24 Vac, floating control, 90 sec run time, plenum rated

Specifications

Control or Fire/Smoke Type
Control Damper
Torque
44 lb-in
Positioning time
50 Hz:108 s, 60 Hz:90 s
Position feedback
No
Power consumption
2.3 VA
Ambient humidity, operation
95 % r.h.
Angular rotation
90°
Operating voltage
20.4…28.8 V24 V#AC
Frequency
50/60 Hz
Cable length
3 ft
Dimensions (W x H x D)
2.75 x 5.44 x 2.38 in
Material, housing
NEMA Type 2, IP54 according to EN 60 529
Degree of protection
IP54
