HU365 | Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 poles, 350hp, 600VAC/DC, Type 1 | Square D by Schneider Electric

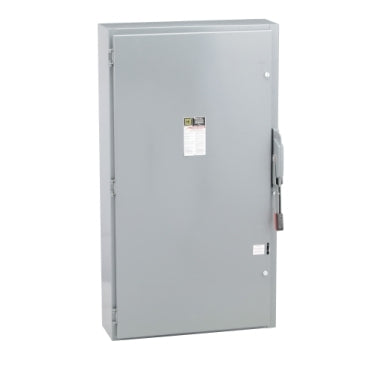

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HU365
Overview
Details for HU365
Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 poles, 350hp, 600VAC/DC, Type 1
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 200A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of galvannealed steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.Specifications
- Product
- Single Throw Safety Switch
- Duty Rating
- Heavy duty
- Device Application
- Heavy application
- Disconnect Type
- Non-fusible disconnect
- Factory Installed Neutral
- None
- Phase
- 3 phase
- Number of Poles
- 3
- Current Rating
- 400 A
- Voltage Rating
- 600 V AC/DC
- Enclosure Rating
- NEMA 1 steel
- Maximum Horse Power Rating
- 125 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52;250 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52;350 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52;50 hp 250 V at DC;50 hp 600 V at DC
- Mounting Type
- Surface
- Electrical Connection
- Lugs
- wiring configuration
- 3-wire
- Wire Size
- AWG 1/0...750 kcmil copper or aluminium
- tightening torque
- 550 lbf.in (62.14 N.m) (AWG 1/0...750 kcmil)
- Depth
- 10.13 in (257.30 mm)
- Width
- 27.63 in (701.80 mm)
- Height
- 50.25 in (1276.35 mm)
- Net Weight
- 169.98 lb(US) (77.1 kg)
- Certifications
- UL listed file E2875
- Category
- 00053-H&HU SW;NEMA1;400-1200A
- Discount Schedule
- DE1
- GTIN
- 785901787303
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 14.29 in (36.3 cm)
- Package 1 Width
- 28.31 in (71.9 cm)
- Package 1 Length
- 52.01 in (132.1 cm)
- Package 1 Weight
- 170.00 lb(US) (77.111 kg)
- Warranty
- 18 months
