Details for VCCF5

TeSys Vario Emergency stop switch disconnector, 125 A, Back of enclosure

TeSys Vario Emergency stop switch disconnector

rated operational voltage : 690 V AC 50/60 Hz
Conventional free air thermal current : 125 A
rated operational current : 68.5 A AC-23 Ue: 400 V
Poles description : 3P
contacts type and composition : 3 NO

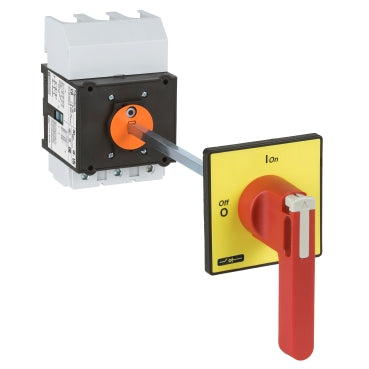

VCCF5 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 125A 690V, it is used for main and emergency stop switching in motor applications up to 37kW@400V AC-23. Composed of a V5 switch body, extension shaft, red padlockable handle, and a yellow 90x90mm front plate. For enclosure back mounting, with a 4 screw fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Possible distance between back of enclosure and door 330-350mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Product Name: TeSys VARIO
Device Short Name: VCCF
Product Type: Emergency stop switch disconnector
Device Composition: Handle;Switch;Shaft extension
Mounting Support: Handle door;Switch symmetrical rail;Switch plate
Mounting Method: By 4 screws handle;By clips switch;By screws switch
Performance Level: High performance
Number of Poles: 3P
Contact Type and Composition: 3 NO
[Ue] IEC Rated Operational Voltage: 690 V AC 50/60 Hz
IEC Rated Operational Power in W: 22 kW 230...240 V AC-3);30 kW 400...415 V AC-3);30 kW 690 V AC-3);37 kW 500 V AC-3);37 kW 690 V AC-23A);45 kW 500 V AC-23A);22 kW 230...240 V AC-23A);37 kW 400...415 V AC-23A)
[Ie] Rated Operational Current: 68.5 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current: 125 A
[Ithe] Conventional Enclosed Thermal Current: 100 A
Making Capacity ( I Rms): 1250 A 400 V AC-21A;1250 A 400 V AC-22A;1250 A 400 V AC-23A
Breaking Capacity: 1000 A 400 V AC-21A);1000 A 400 V AC-22A);1000 A 400 V AC-23A)
Rated Conditional Short Circuit Current: 10 kA 400 V 125 A aM;10 kA 400 V 125 A gG
[Icm] Rated Short Circuit Making Capacity: 2.8 kA 400 V at Ipeak
[Icw] Rated Short Time Withstand Current: 1500 A 400 V 1 s
[Uimp] Rated Impulse Withstand Voltage: 8 kV
Suitability for Isolation: Yes
Network Type: DC;AC
Intermittent Duty Class: 30
Control Type: Rotary handle
Rotary Handle Mounting Style: Extended
Handle Color: Red
Handle Front Plate Color: Yellow
Rotary Handle Padlocking: 1 to 3 padlocks 0.16…0.31 in (4…8 mm)
Marking: 0 - 1
Mechanical Durability: 30000 cycles
Electrical Durability: 30000 cycles AC-21;30000 cycles DC-1...5
IEC Terminal Connection: Power circuit screw clamp terminals 0.15 in² (95 mm²) solid;Power circuit screw clamp terminals 0.11 in² (70 mm²) flexible - with cable end
Tightening Torque: Power circuit 200.03 lbf.in (22.6 N.m) screw clamp terminals
Base Dimension: 90 x 90 mm
Height: 4.92 in (125 mm)
Width: 3.54 in (90 mm)
Product Weight: 2.91 lb(US) (1.32 kg)
Standards: IEC 60947-3
Product Certifications: CCC;UL;CSA;GL;UKCA
Degree of Protection: IP20 conforming to IEC 60529;IP65
Protective Treatment: TC
Mechanical Robustness: Vibrations 10...150 Hz 1 gn) IEC 60068-2-6;Shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature for Operation: -4…122 °F (-20…50 °C)
Fire Resistance: 1760 °F (960 °C) IEC 60695-2-1
Compatibility Code: Main switch disconnector
Category: 21730-V VARIO SWITCH
Discount Schedule: CP1
GTIN: 3389110804652
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.94 in (10 cm)
Package 1 Width: 4.53 in (11.5 cm)
Package 1 Length: 11.81 in (30 cm)
Package 1 Weight: 2.80 lb(US) (1.269 kg)
Unit Type of Package 2: S03
Number of Units in Package 2: 4
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 12.23 lb(US) (5.547 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 32
Package 3 Height: 30.31 in (77 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 23.62 in (60 cm)
Package 3 Weight: 134.74 lb(US) (61.115 kg)
Warranty: 18 months
