Details for QC816F200C

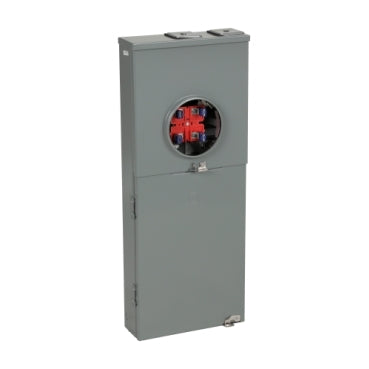

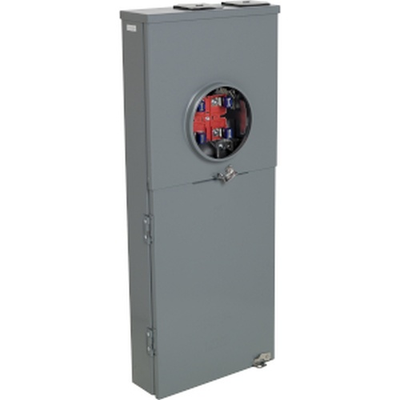

METER MAIN RINGLESS OH/UG 200A

METER MAIN RINGLESS

Line Rated Current : 200 A
Short-circuit current : 22 kA
Meter socket type : Ringless
Mounting : Surface

The Square D® QO Load Centers and Combination Service Entrance Devices, QC816F200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior single main service disconnect with feed-thru lugs. Meter Socket has no By-pass.

Specifications

Product or Component Type: Meter Mains
Range of Product: QO
Line Rated Current: 200 A
short-circuit current: 22 kA
network number of phases: 1
meter socket type: Ringless
Mounting: Surface
number of spaces: 8
number of circuits: 16
Number of Tandem Breakers: 8
hub type: A
electrical connection: Feed-thru lugs line side;Feed-thru lugs service ground
Wire Size: AWG 6...350 kcmil aluminium/copper)line side;AWG 12...AWG 2/0 aluminium/copper)service ground
tightening torque: Main lugs 250 lb.in;AWG 6...350 kcmil;aluminium/copper;Service ground 50 lb.in;AWG 14...AWG 2/0;copper;Service ground 50 lb.in;AWG 12...AWG 2/0;aluminium;Branch lugs 35 lb.in;AWG 6...AWG 4;aluminium/copper;Branch lugs 25 lb.in;AWG 8;aluminium/copper;Branch lugs 20 lb.in;AWG 14...AWG 10;copper;Branch lugs 20 lb.in;AWG 12...AWG 10;aluminium;Cover 10 lb.in
Disconnect: Service disconnect (factory installed)
Main Breaker Rating: 200 A
Branch Breaker Rating: 200 A
service feed location: OH;UG
bypass type: No bypass
Height: 35.15 in (892.81 mm)
Width: 14.37 in (365.00 mm)
Depth: 5.07 in (128.78 mm)
product certifications: UL E-6294
Category: 00022-QO METER MAINS
Discount Schedule: DE3A
GTIN: 785901001065
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.80 in (14.732 cm)
Package 1 Width: 15.00 in (38.1 cm)
Package 1 Length: 36.60 in (92.964 cm)
Package 1 Weight: 41.20 lb(US) (18.688 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 21
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 903.00 lb(US) (409.594 kg)
Warranty: 18 months
