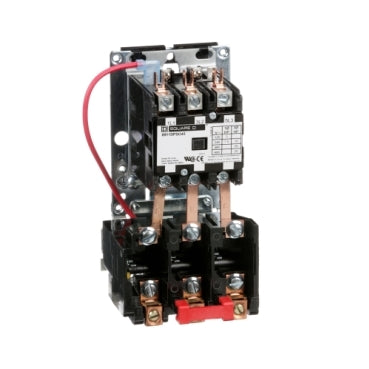

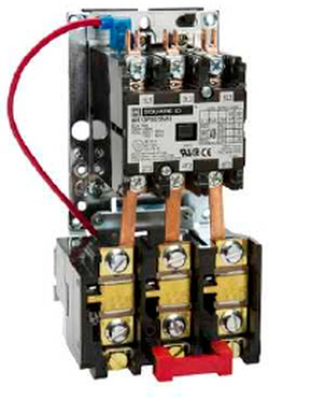

8911DPSO43V09 | Definite Purpose Starter, 40A, Open, 220V 50 Hz, 208-240V 60 Hz, 3-Poles, 3-Phase | Square D

Definite Purpose Starter, 40A, Open, 220V 50 Hz, 208-240V 60 Hz, 3-Poles, 3-Phase

Definite Purpose Starter

• Line Rated Current: 40A
• Poles Description: 3-Pole
• Number of Phases: 3-Phase
• Degree of Protection: Open Device
• Control Circuit Voltage: 220V AC 50 Hz, 208-240V AC 60 Hz

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. It also has a rating of 10 HP at 230 VAC, 20 HP at 460 VAC and 25 HP at 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208 to 240 VAC 60 HZ and 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. Starter is an open device. A variety of enclosure types are available. Starter is 6.73 inches tall, 3.5 inches wide and 4.09 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
