SSS-1014 Diff Flow Sensor by KMC Controls The SSS-1014 Diff Flow Sensor from KMC Controls is a highly accurate and reliable differential pressure sensor designed for demanding industrial applications. It features a robust construction with a 7-21/32" body and a 3/16" connection for easy installation. This sensor is ideal for measuring differential pressure in a variety of fluids, including air, water, and oil. Its rugged design and high-quality components ensure precise and repeatable measurements even in harsh environments. Key Features: * Differential pressure measurement range: ±25 psid * Accuracy: ±2% of full scale * Repeatability: ±0.5% of full scale * Temperature range: -40°F to 180°F * Electrical connection: 3-wire, 4-20 mA output Benefits: * Accurate and reliable pressure measurement * Compact design for easy installation * Robust construction for industrial environments * Suitable for a wide range of fluids Applications: * HVAC systems * Fluid flow monitoring * Pump control * Filter monitoring Order your SSS-1014 Diff Flow Sensor today from our HVAC supply store for the best prices and fast shipping!

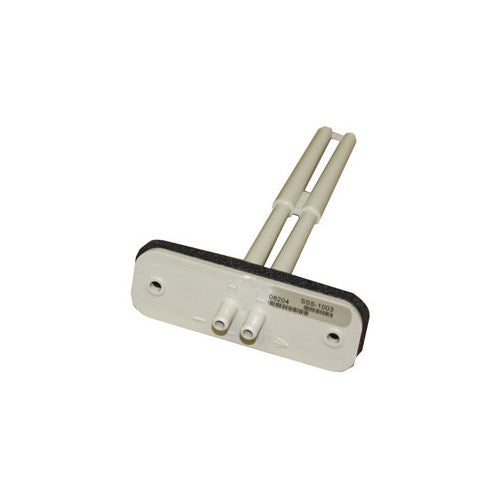

KMC SSS-10xx pickup tubes are designed to help sense differential pressure in the inlet section of VAV (Variable Air Volume) terminal units and fan terminal units. They can also be used to help sense differential pressure at other locations in the main or branch duct systems. The differential pressure read between the high “H” port and the low “L” port can be used to determine the air flow. Static pressure can also be measured using just one of the ports rotated 90°.

Models offer up to four sensing points and sensing lengths of 3-5/32 to 9-29/32 inches to accommodate box size diameters of 4 to 16 inches.

These pickup tubes are typically used in conjunction with the CSC-1000/2000/3000 series, CSP-4000/5000 series, KMD-7000 series, and BAC-7000 series of VAV controllers for individual zone control in HVAC systems.

For using SSS-100x pickup tubes with CSC-3000 series, CSP-4000/5000 series, KMD-7000 series, and BAC-7000 series controllers, use a 3/8″ to 1/4″ barb union adapter and appropriate polyethylene tubing to the pickup tubes and controller. For maximum accuracy in the CSP-5000 series, KMD-7000 series, and BAC-7000 series controllers, the 3/8″ OD tubing between the pickup tubes and the adapter should be as short as possible, and the 1/4″ OD tubing from the adapter to the controller should be 24″ long (on both the High and the Low sides). OR use the equivalent SSS-101x pickup tubes.

SSS-100x (light gray) models have 1/4″ connections for 3/8″ OD polyethylene tubing; SSS-101x (light almond) models have 3/16″ connections for 1/4″ OD polyethylene tubing.
