SSS-1005 | Sensor: Differential Pressure, 9-29/32" | KMC Controls

KMC Controls SSS-1005 Flow Sensor The KMC Controls SSS-1005 Diff#FlowSensor is designed for measuring the flow rate of liquids in a variety of applications. It is constructed with rugged materials to withstand harsh industrial environments and provide reliable operation. This sensor features a compact size, making it suitable for installations where space is limited. The SSS-1005 utilizes advanced technology to provide accurate flow rate measurements. Its high sensitivity and wide flow range make it suitable for a wide range of applications. Additionally, the sensor offers a fast response time, ensuring real-time monitoring of flow rates. With its easy installation and maintenance, the KMC Controls SSS-1005 Flow Sensor is an excellent choice for industrial engineers and maintenance professionals seeking a high-performance and reliable solution for flow rate measurement applications. Our HVAC supply store offers competitive prices and fast shipping on all KMC Controls products. Shop now for the best deals on industrial supplies!

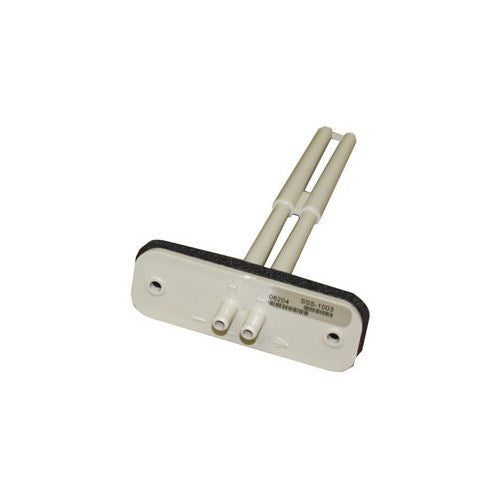

KMC SSS-10xx pickup tubes are designed to help sense differential pressure in the inlet section of VAV (Variable Air Volume) terminal units and fan terminal units. They can also be used to help sense differential pressure at other locations in the main or branch duct systems. The differential pressure read between the high “H” port and the low “L” port can be used to determine the air flow. Static pressure can also be measured using just one of the ports rotated 90°.

Models offer up to four sensing points and sensing lengths of 3-5/32 to 9-29/32 inches to accommodate box size diameters of 4 to 16 inches.

These pickup tubes are typically used in conjunction with the CSC-1000/2000/3000 series, CSP-4000/5000 series, KMD-7000 series, and BAC-7000 series of VAV controllers for individual zone control in HVAC systems.

For using SSS-100x pickup tubes with CSC-3000 series, CSP-4000/5000 series, KMD-7000 series, and BAC-7000 series controllers, use a 3/8″ to 1/4″ barb union adapter and appropriate polyethylene tubing to the pickup tubes and controller. For maximum accuracy in the CSP-5000 series, KMD-7000 series, and BAC-7000 series controllers, the 3/8″ OD tubing between the pickup tubes and the adapter should be as short as possible, and the 1/4″ OD tubing from the adapter to the controller should be 24″ long (on both the High and the Low sides). OR use the equivalent SSS-101x pickup tubes.

SSS-100x (light gray) models have 1/4″ connections for 3/8″ OD polyethylene tubing; SSS-101x (light almond) models have 3/16″ connections for 1/4″ OD polyethylene tubing.
