SSS-1003 | Sensor: Differential Pressure, 5-13/32" | KMC Controls

KMC Controls Diff#FlwSnsr Flow Sensor: Precision Fluid Monitoring The KMC Controls Diff#FlwSnsr Flow Sensor (SKU: SSS-1003) is an industrial-grade sensor designed for precise flow measurement of liquids and gases. It features a 5-13/32" size and a 1/4" NPT connection. This flow sensor is crafted with high-quality materials to withstand demanding industrial environments. Its durable construction ensures reliable operation and accurate flow measurement over an extended period. The KMC Controls Diff#FlwSnsr offers several key benefits: 1. Accurate Flow Measurement: The sensor provides precise and reliable flow measurement, ensuring optimal system performance and process control. 2. Wide Range of Applications: This flow sensor is suitable for a wide range of applications, including flow monitoring in pipelines, process lines, and various industrial settings. 3. Robust Construction: Its durable construction ensures longevity and resilience in harsh industrial environments, making it an ideal choice for long-term operation. 4. Versatile Connectivity: The 1/4" NPT connection allows for easy integration into existing systems, providing versatility and convenience. 5. Industry-Leading Brand: KMC Controls is a renowned manufacturer of industrial sensors and controls, known for its commitment to quality and innovation. Order your KMC Controls Diff#FlwSnsr Flow Sensor today from our HVAC supply store, where you'll find the best prices, fast shipping, and exceptional customer service. Enhance your industrial operations with our top-quality products.

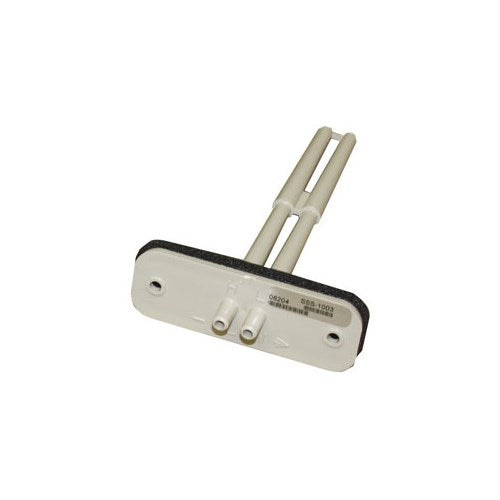

KMC SSS-10xx pickup tubes are designed to help sense differential pressure in the inlet section of VAV (Variable Air Volume) terminal units and fan terminal units. They can also be used to help sense differential pressure at other locations in the main or branch duct systems. The differential pressure read between the high “H” port and the low “L” port can be used to determine the air flow. Static pressure can also be measured using just one of the ports rotated 90°.

Models offer up to four sensing points and sensing lengths of 3-5/32 to 9-29/32 inches to accommodate box size diameters of 4 to 16 inches.

These pickup tubes are typically used in conjunction with the CSC-1000/2000/3000 series, CSP-4000/5000 series, KMD-7000 series, and BAC-7000 series of VAV controllers for individual zone control in HVAC systems.

For using SSS-100x pickup tubes with CSC-3000 series, CSP-4000/5000 series, KMD-7000 series, and BAC-7000 series controllers, use a 3/8″ to 1/4″ barb union adapter and appropriate polyethylene tubing to the pickup tubes and controller. For maximum accuracy in the CSP-5000 series, KMD-7000 series, and BAC-7000 series controllers, the 3/8″ OD tubing between the pickup tubes and the adapter should be as short as possible, and the 1/4″ OD tubing from the adapter to the controller should be 24″ long (on both the High and the Low sides). OR use the equivalent SSS-101x pickup tubes.

SSS-100x (light gray) models have 1/4″ connections for 3/8″ OD polyethylene tubing; SSS-101x (light almond) models have 3/16″ connections for 1/4″ OD polyethylene tubing.
