SSS-1004 | Sensor: Differential Pressure, 7-21/32" | KMC Controls

KMC Controls SSS-1004 Differential Flow Sensor: Precise Flow Measurement for Industrial Applications The KMC Controls SSS-1004 Differential Flow Sensor is a precision instrument designed to accurately measure flow rates in industrial environments. This sensor features a 7-21/32" flow range and a 1/4" connection, making it suitable for a wide range of applications. With its robust construction and reliable performance, the SSS-1004 provides dependable flow measurement for critical industrial processes. The SSS-1004 utilizes differential pressure measurement to determine flow rates, ensuring high accuracy and reliability. It is constructed with durable materials to withstand harsh industrial conditions and provide long-lasting performance. The compact design allows for easy installation in various piping systems. Key Features: 7-21/32" flow range 1/4" connection Differential pressure measurement for accurate flow rate determination Robust construction for industrial applications Compact design for easy installation Benefits: Provides precise flow rate measurement for efficient process control Durable construction ensures long-term reliability Compact design simplifies installation and maintenance Applications: Monitoring and controlling flow rates in HVAC systems Measuring flow rates in manufacturing and processing industries Piping systems in industrial facilities Shop now at our HVAC supply store for the best prices and fast shipping on the KMC Controls SSS-1004 Differential Flow Sensor. Trust our expertise for your industrial supply needs!

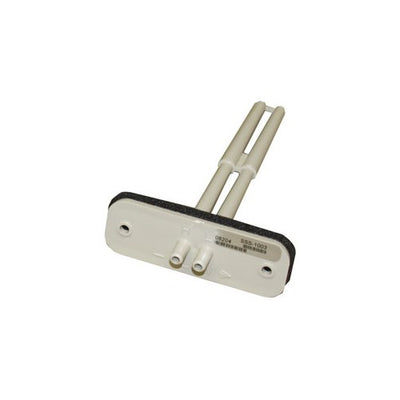

KMC SSS-10xx pickup tubes are designed to help sense differential pressure in the inlet section of VAV (Variable Air Volume) terminal units and fan terminal units. They can also be used to help sense differential pressure at other locations in the main or branch duct systems. The differential pressure read between the high “H” port and the low “L” port can be used to determine the air flow. Static pressure can also be measured using just one of the ports rotated 90°.

Models offer up to four sensing points and sensing lengths of 3-5/32 to 9-29/32 inches to accommodate box size diameters of 4 to 16 inches.

These pickup tubes are typically used in conjunction with the CSC-1000/2000/3000 series, CSP-4000/5000 series, KMD-7000 series, and BAC-7000 series of VAV controllers for individual zone control in HVAC systems.

For using SSS-100x pickup tubes with CSC-3000 series, CSP-4000/5000 series, KMD-7000 series, and BAC-7000 series controllers, use a 3/8″ to 1/4″ barb union adapter and appropriate polyethylene tubing to the pickup tubes and controller. For maximum accuracy in the CSP-5000 series, KMD-7000 series, and BAC-7000 series controllers, the 3/8″ OD tubing between the pickup tubes and the adapter should be as short as possible, and the 1/4″ OD tubing from the adapter to the controller should be 24″ long (on both the High and the Low sides). OR use the equivalent SSS-101x pickup tubes.

SSS-100x (light gray) models have 1/4″ connections for 3/8″ OD polyethylene tubing; SSS-101x (light almond) models have 3/16″ connections for 1/4″ OD polyethylene tubing.
