MXG461B15-3 | Magnetic, 1/2" Valve 2-way or floating, 3.5 Cv, 0 to 10V control, w/ fittings | Siemens Building Technology

Siemens Building Technology | MXG461B15-3

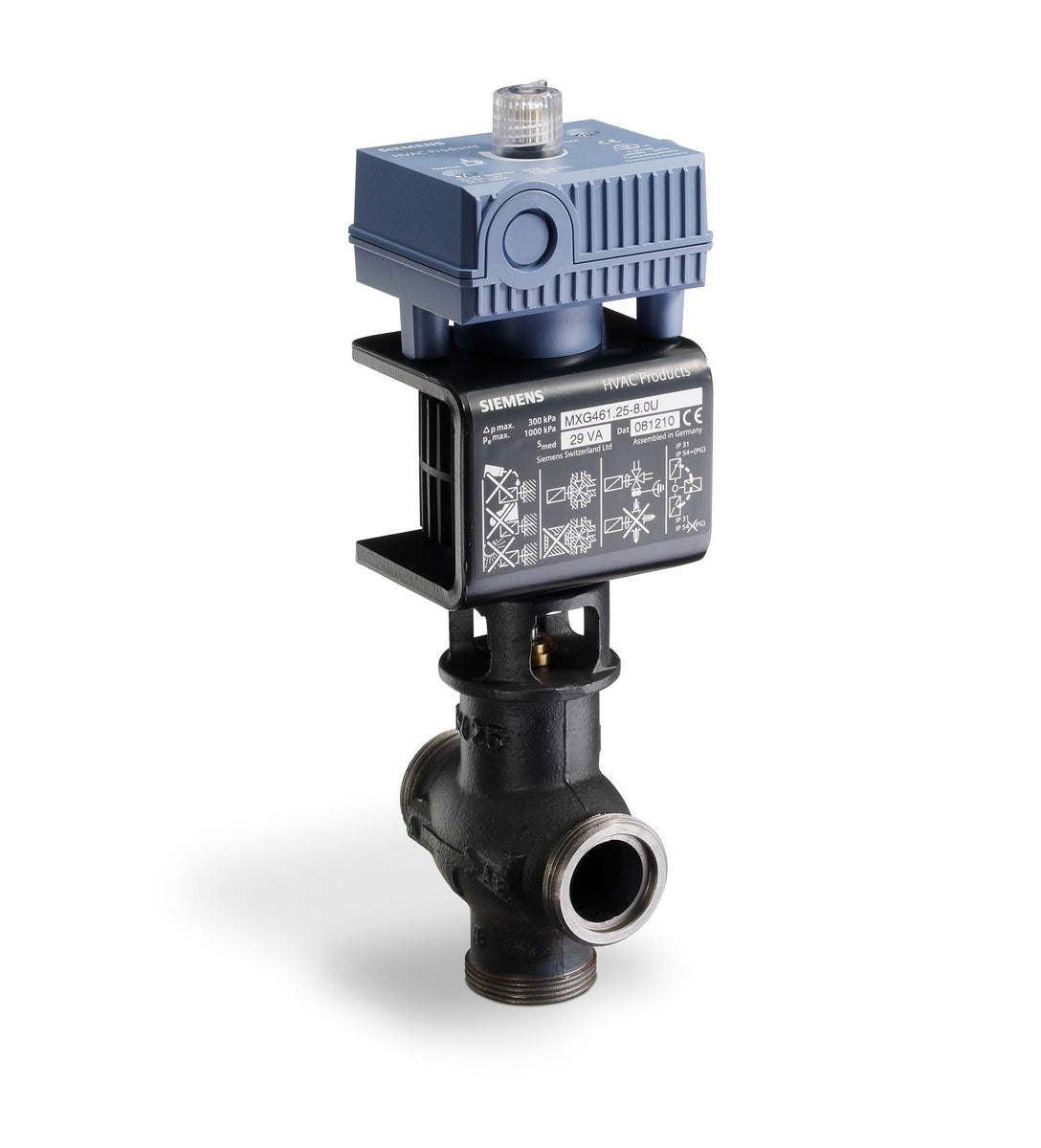

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MXG461B15-3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology MXG461B15-3 Documents

Datasheet(Modulating control valves. PN16. MXG461B..)Datasheet(MXG461B Series Modulating Control Valves with Magnetic Actuators. Positioning Control and Position Feedback for Domestic Water Technical Instructions)Declaration of conformity(CE Declaration MXG461B../MXG462S..)Declaration of conformity(DVGW certificate. drinking water. PN16. MXG461B..)Declaration of conformity(RCM Supplier's Declaration of conformity MXG461B.../MXG462S..)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(UKCA Declaration of conformity. Electromagnetic valve actuators MXG461B../MXG462S..)Environmental Declaration(Modulating control valves. PN16. MXG461B... DN15..25)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Other datasheet(Modulating control valves with magnetic actuator)Dimension Drawings(2/3-port. MXG461B... DN 15. 2D drawings. dxf/dwg format)Dimension Drawings(2/3-port. MXG461B... DN 15. 3D drawings. dwg format)Dimension Drawings(2/3-port. MXG461B... DN 15. 3D drawings. stp format) More Info

Overview

Details for MXG461B15-3

1/2" BRASS BDY MAG VALVE [sku] by Siemens Building Technology is a technologically advanced and highly functional solenoid valve designed specifically for industrial applications. This versatile valve is constructed with a durable brass body and features a reliable and efficient design, ensuring longevity and optimal performance. The MXG461B15-3 offers precise control over fluid flow with its solenoid-operated mechanism, making it ideal for a wide range of applications in industrial environments. Its compact design allows for easy installation and integration into existing systems, while its brass construction provides excellent corrosion resistance for extended service life. Key Features: - 1/2" brass body for corrosion resistance and durability - Solenoid-operated mechanism for precise fluid control - Compact design for easy installation and integration - Reliable and efficient performance for industrial applications our HVAC supply store offers the best prices and fast shipping on industrial products. Shop now to get the best deals on the MXG461B15-3 1/2" BRASS BDY MAG VALVE by Siemens Building Technology!

Specifications

Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Leakage rate bypass: 0.2 % of kvs
Medium: Water
Stroke resolution ΔH/H₁₀₀: 1:1000
Material, valve body: Red brass CC499K (Rg5)
Δp_s: 1000 kPa
Connecting thread: G 1" B
Ambient temperature, operation: -5…45 °C
Connecting thread: G 1 B "
Degree of protection: IP31
Leakage rate: 0.05 % of kvs
Material, inside set: CrNi steel
Material, valve body: Red brass CC491K, low-lead amount
Medium temperature: -20…130 °C; -4…266 ºF
Mounting position: Upright to horizontal
Nominal pressure: PN 16
Operating voltage: 24 VAC, 20…30 VDC
Permissible operating pressure: 1600 kPa
Position feedback: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
Positioning time: 2 s
Power consumption: 33 VA
Spring return function: A->AB closed
Valve characteristic: Equal-percentage , Linear
Δp_max: 1000 kPa
Dimensions (W x H x D): 6.18 x 15.06 x 3.98 in
Product conformity: DVGW approved
k_vs: 3 m³/h
DN: 15
