MVS661.25-0.4N | 2-port refrig valve, PN 63, DN25, 0.4kvs, 24VAC/DC, 0/2...10 VDC / 0/4...20 mA | Siemens Building Technology

Siemens Building Technology | MVS661.25-0.4N

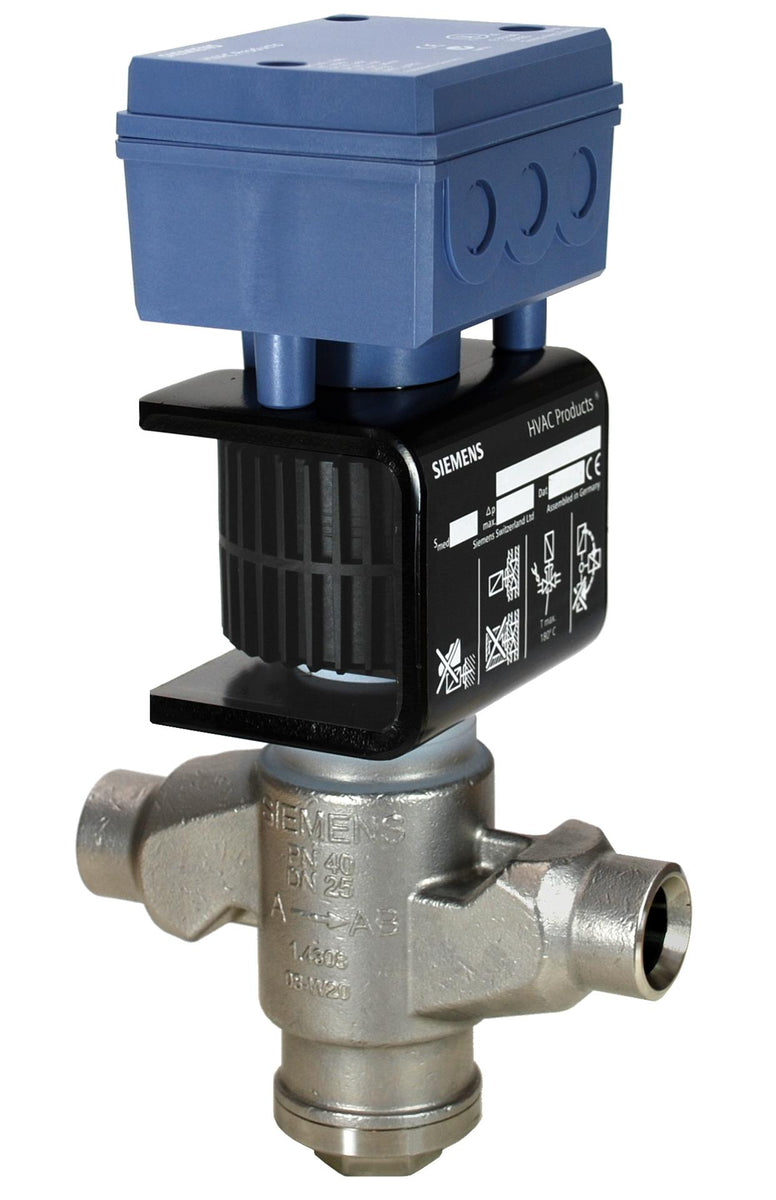

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MVS661.25-0.4N

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology MVS661.25-0.4N Documents

Datasheet(Modulating refrigerant valves. PN 63. MVS661..N)Datasheet(MVS661..N...Series Modulating Refrigerant Valves for Ammonia (R717) and Safety Refrigerants Technical Instructions)Declaration of conformity(CE declaration MVS661..)Declaration of conformity(RCM Suplier's Declaration MVS661…)Declaration of conformity(Test report EN 10204 (type 2.2). MVS661..-N)Declaration of conformity(Refrigerant valves MVS661..)Mounting instruction(Modulating refrigerant valves PN 63. MVS661..N)Dimension Drawings(2-port refrigeration valve. MVS661..N. DN 25. 3D drawings. stp format) More Info

Overview

Details for MVS661.25-0.4N

DN25 Refrigerant Valve: MVS661.25-0.4N from Siemens Building TechnologyThe MVS661.25-0.4N refrigerant valve from Siemens Building Technology is a reliable and robust component designed for use in a wide range of HVAC systems. It features a 2-port configuration with DN25 size and a pressure range of 6.3 to 24 bar.Technical Specifications:- SKU: MVS661.25-0.4N- Port Size: DN25 (1 inch)- Ports: 2- Pressure Range: 6.3 to 24 bar- Medium: Refrigerants- Voltage: 24 VAC/DC- Power Consumption: 5 VA- Operating Temperature: -20 to +55Â°C- Protection Class: IP54- Connection: Plug-inBenefits and Applications:- High reliability and durability- Compact design for space-saving installation- Suitable for use in various refrigeration and air conditioning systems- Controllable via BMS or other control systems- Meets industry standards and regulationsShop our HVAC supply store Now! our HVAC supply store offers the best prices and fast shipping for the MVS661.25-0.4N refrigerant valve and other HVAC components. Trust us for your industrial supply needs.

Expansion gas, flash gas and suction throttle applications with one type of valve
PN 63, stainless steel with welding connections
