M3P100FY | Magnetic, 4" Valve, floating, 152 Cv, 0 to 10V control, w/o Flange kits | Siemens Building Technology

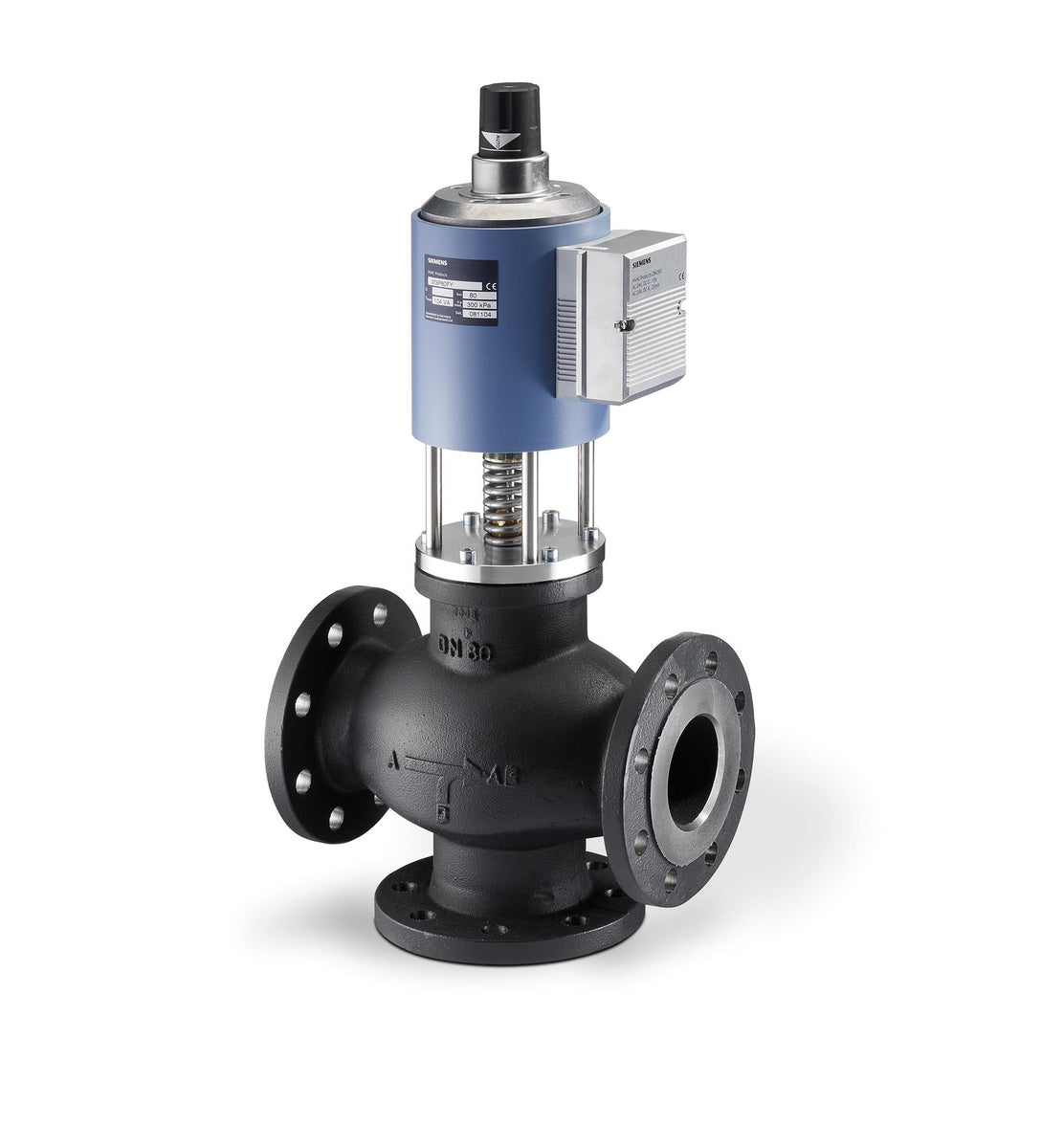

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M3P100FY
Documents and manuals
Siemens Building Technology M3P100FY Documents
Datasheet(Modulating control valves with magnetic actuator. PN16. M3P..FY. M3P..FYP)Datasheet(M3P…FY Series Modulating Control Valve Technical Instructions)Declaration of conformity(CE declaration M3P..)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(Electromagnetic valve actuators M3P..)Environmental Declaration(Stetige Regelventile mit Magnetantrieb M3P..FY)Mounting instruction(Valve stem gland replacement / Austausch Spindeldurchführung M3P..FY..)Mounting instruction(Mounting instructions / Montageanleitung M3P...FY)Other datasheet(Modulating control valves. PN16. MXG461... MXF461..)Other datasheet(Modulating control valves with magnetic actuator)Dimension Drawings(2/3-port valve. M3P... DN 100. 2D drawings. dxf/dwg format)Dimension Drawings(2/3-port valve. M3P... DN 100. 3D drawings. dwg format)Dimension Drawings(2/3-port valve. M3P... DN 100. 3D drawings. stp format) More Info
Overview
Details for M3P100FY
4" Modulating Valve with Magnetic Operator and Position Indicator (M3P100FY) from Siemens Building Technology, the industry leader in building automation and control systems. This valve is designed to provide precise control of fluid flow in HVAC systems, ensuring optimal comfort and energy efficiency.
Crafted from durable materials, the M3P100FY features a compact and robust design that withstands the demands of commercial and industrial applications. Its magnetic operator delivers reliable and accurate positioning, ensuring precise flow control and reducing maintenance downtime.
The built-in position indicator allows for easy monitoring and adjustment of valve position, maximizing system performance. With a Cv rating of 152, this valve is suitable for medium-flow applications, such as controlling chilled water or hot water systems in buildings.
By incorporating the M3P100FY into your HVAC system, you can enjoy enhanced temperature control, reduced energy consumption, and improved occupant comfort. Trust Siemens Building Technology and our HVAC supply store for your HVAC valve needs, where we offer competitive prices and fast shipping to keep your projects on track. Experience the difference with M3P100FY today!
Specifications
- Operating range
- DC 0…10 V
- Leakage rate bypass
- 2 % of kvs
- Medium
- Water
- Stroke resolution ΔH/H100
- 1:1000
- Material, valve body
- Cast iron EN-GJL-HB215
- Δps
- 200 kPa
- Ambient temperature, operation
- 2…50 °C
- Degree of protection
- IP31
- Leakage rate
- 0.05 % of kvs
- Material, inside set
- CrNi steel/brass
- Material, valve body
- EN-GJL-HB215
- Medium temperature
- 2…120 °C; 35…248 ºF
- Mounting position
- Upright to horizontal
- Nominal pressure
- PN 16
- Operating voltage
- 24 VAC
- Position feedback
- DC 0…10 V
- Positioning signal
- DC 0...10 V, DC 4...20 mA
- Positioning time
- Close:2 s
- Power consumption
- 120 VA
- Spring return function
- 1->3 closed
- Valve characteristic
- Linear
- Δpmax
- 200 kPa
- Dimensions (W x H x D)
- 13.78 x 28.74 x 8.66 in
- kvs
- 130 m³/h
- DN
- 100
