GSD341.1U | Damper Actuator | Non-Spring Return | 120 to 230 VAC | On/Off/Floating Point | 20 lb-in | Siemens Building Technology

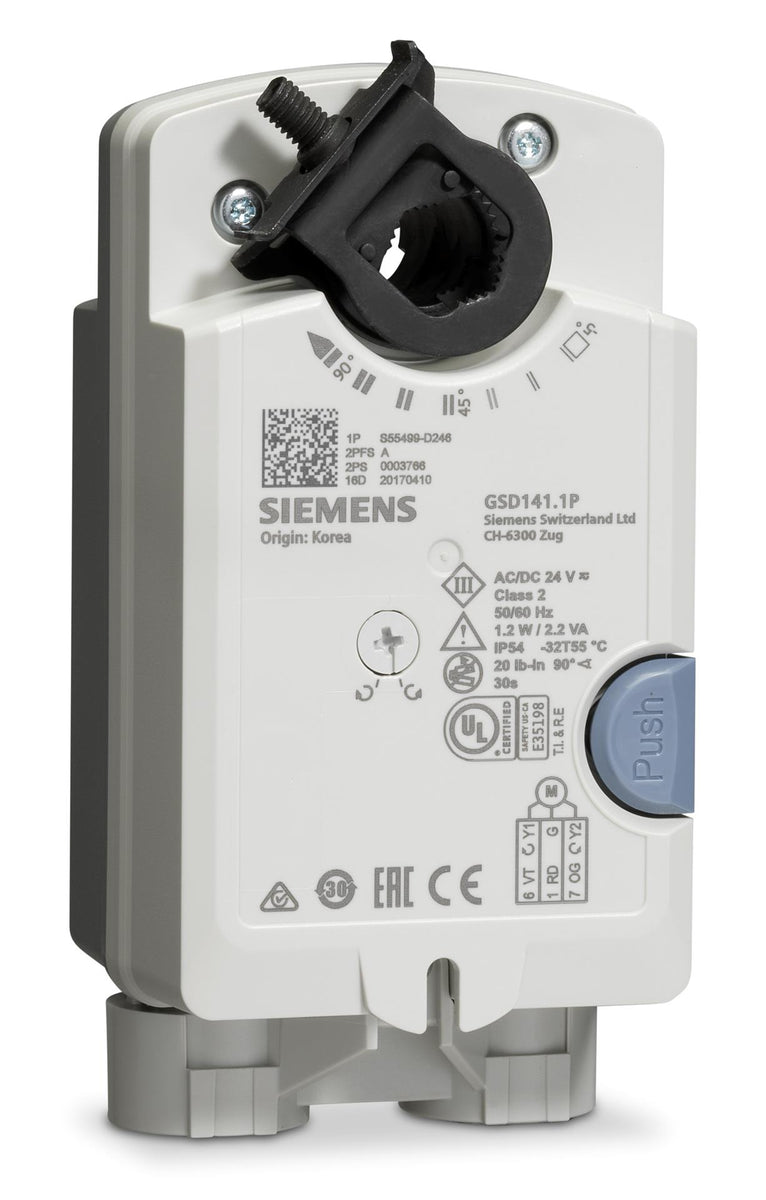

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GSD341.1U
Documents and manuals
Siemens Building Technology GSD341.1U Documents
Datasheet(OpenAir GSD Series Non-Spring Return. 20 lb-in (2 Nm). Rotary Electronic Damper Actuators Technical Instructions)Datasheet(OpenAir GSD Series. Non-Spring Return. 20 lb-in (2 Nm). Rotary Electronic Damper Actuators Submittal Sheet)Installation instruction(OpenAir GSD Series. Non-Spring Return Rotary Electronic Damper Actuators Installation Instructions) Installation Instructions More Info
Overview
Details for GSD341.1U
GSD341.1U 120V 2P/FLT NSR 20in/lb DmpAct
The Siemens Building Technology GSD341.1U is a reliable and efficient 120V 2-pole/fault non-sensitive relay (NSR) with a damping actuator. This high-quality relay offers the following key features:
120V 2-pole/fault non-sensitive relay
20in/lb damping actuator
Compact design for easy installation
Rugged construction for durability
Easy-to-use interface
The GSD341.1U is ideal for a wide range of industrial applications, including:
Motor control
Lighting control
HVAC control
Security systems
Shop now at our HVAC supply store for the best prices and fast shipping on the Siemens Building Technology GSD341.1U relay!
Specifications
- Actuator Type
- Non-spring return
- Actuation Style
- Rotary
- Control or Fire/Smoke Type
- Control Damper
- Plenum or Standard Rating
- Standard
- Torque
- 20 lb-in
- Fail Safe
- No
- Control Signal
- 2-position , Floating control
- Positioning time
- Runtime for 90° 30 s
- Position feedback
- No
- Power consumption
- Running: 4.5 VA (1.8 W), Holding: 2.4 VA (0.9 W)
- Ambient temperature, operation
- -25 to 130 °F, -32 to 55 °C
- Operating voltage
- 120-230 VAC
- Supply Voltage
- 120 to 230 VAC
- Frequency
- 50/60 Hz
- Auxiliary Switch
- No
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 2.83 x 5.86 x 2.45 in
- Material, housing
- IP54 enclosure, Plenum rated rugged plastic
