9037HG35R | Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NO DPST DB contacts | Schneider Electric (Square D)

Schneider Electric (Square D) | 9037HG35R

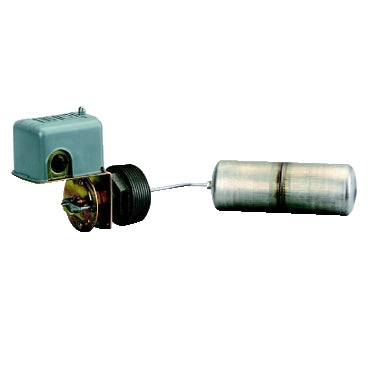

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9037HG35R

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9037HG35R Documents

More Info

Overview

Details for 9037HG35R

The 9037HG35R float switch from Schneider Electric (Square D) is designed to provide reliable level control in demanding industrial applications. This high-quality switch features a robust construction that ensures durability and long-lasting performance. The 575VAC rating makes it suitable for use in high-voltage environments, while the 1HP rating ensures it can handle significant loads. The open/rise operation allows for precise level control, making it ideal for applications where accurate liquid level detection is crucial. With its reliable performance and versatility, the 9037HG35R float switch is an excellent choice for industrial engineers and maintenance professionals seeking a dependable level control solution. Contact our HVAC supply store today for the best prices and fast shipping on all your industrial supplies!

Specifications

Range of Product: Square D Pumptrol
Product or Component Type: Float switch
Device Application: Closed tank
Device short name: 9037H
Product Specific Application: Liquid level control
Electrical circuit type: Power circuit
Quantity per Set: Set of 1
Type of Packing: Individual
Product destination: For closed tank
Device mounting: Screw-in bushing
cable entry number: 3 knock-outs for 1/2" conduit UL 508
contacts type and composition: 2 NO, snap action, DPST-DB, Form XX
controlled fluid: Corrosive fluid specific gravity of 0.85 in or higher, Fresh water specific gravity of 0.85 in or higher 0…220 °F (-18…104 °C), Sea water specific gravity of 0.85 in or higher 0…220 °F (-18…104 °C), Hydraulic oil specific gravity of 0.85 in or higher 0…220 °F (-18…104 °C)
motor power kW: 1.5 kW 2 hp)115 V AC, 1 phase, 2.2 kW 3 hp)115 V AC, 3 phase, 2.2 kW 3 hp)230 V AC, 1 phase, 3.7 kW 5 hp)230 V AC, 3 phase, 0.75 kW 1 hp)460 V AC, 3 phase, 0.75 kW 1 hp)475 V AC, 3 phase, 0.18 kW 0.25 hp)32 V DC, 0.37 kW 0.5 hp)115 V DC, 0.37 kW 0.5 hp)230 V DC
electrical connection: Screw-clamp terminals 10 AWG
contact operation: Contacts open on liquid rise
float movement: 2.5...5 in adjustable
Float position: Right
Float rod angle: 90°
short-circuit protection: 20 A cartridge fuse gG
Local signalling: With external pointer
Materials in contact with fluid: Yellow brass, Nitrile (Buna-N) or equivalent rubber, Cast iron, Stainless steel 316, Stainlesss steel 304
Enclosure Material: Polypropylene or equivalent
Operating position: Vertical position only
electrical durability: 100 cycles 60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
Maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V UL 508
Net Weight: 4.8 lb(US) (2.18 kg)
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
Kit composition: Float, Float switch, Rod
standards: UL 508, CE
Ambient Air Temperature for Operation: -22…220 °F (-30…104 °C)
Ambient Air Temperature for Storage: -22…220 °F (-30…104 °C)
NEMA degree of protection: NEMA 1 UL 50
Product Certifications: UL listed file E12158, CSA file LR25490
Category: 21601-9037,9038 COMMERCIAL FLOAT SWITCHES
Discount Schedule: CP7G
GTIN: 785901055112
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 18.26 in (46.387 cm)
Package 1 Width: 7.19 in (18.263 cm)
Package 1 Length: 46.39 in (117.823 cm)
Package 1 Weight: 4.80 lb(US) (2.177 kg)
Warranty: 18 months
