599-07313 | PICV, 5 inch, ANSI 125, 485 GPM max. flow | Siemens Building Technology

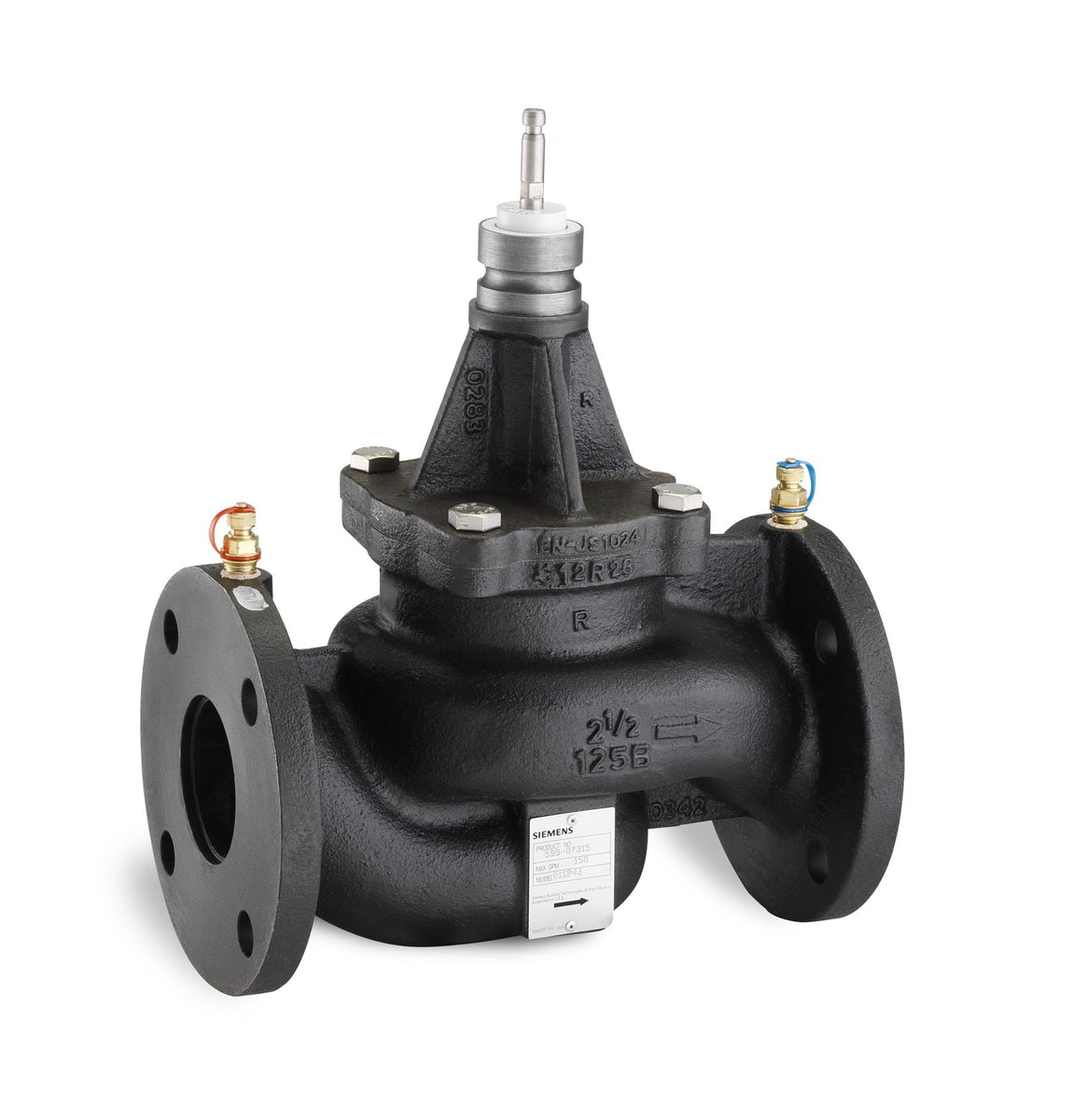

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-07313

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-07313 Documents

Datasheet(Pressure Independent Control Series 2-Way Flanged Valves and Electromotoric Valve Actuators Specification Sheet)Datasheet(Pressure Independent Control Series. Two-Way Cast Iron Flanged Bodies. ANSI 125 and 250 Technical Instructions) More Info

Overview

Details for 599-07313

5" Low Flow PICV 85 to 485 GPM from Siemens Building Technology. This Pressure Independent Control Valve (PICV) is designed to maintain a constant flow rate despite pressure fluctuations in the system. Key features include: - 5" Size - Flow range 85 to 485 GPM - Low Flow Rate - Pressure Independent Control - Siemens Building Technology Brand Applications: - HVAC systems - Hydronic heating and cooling systems. Our HVAC supply store offers the best prices and fast shipping for your products!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: Flanged
Material, valve body: Cast Iron
Material, inside set: Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
Medium: Water , Water with anti-freeze
Max GPM: 485 gpm
DN: 125
Min GPM: 85 gpm
Preset GPM: 485 gpm
Leakage rate: Class IV (0.01% of Cv)
Medium temperature: 34…250 ºF
Stroke: 1-1/2 in., 40 mm
Dimensions (W x H x D): 15.75 x 20.93 x 10 in
