599-06623 | Flowrite two-way 5-inch high close-off valve. ANSI 250, NO, SS trim. | Siemens Building Technology

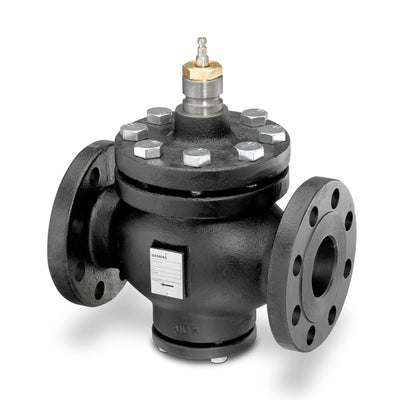

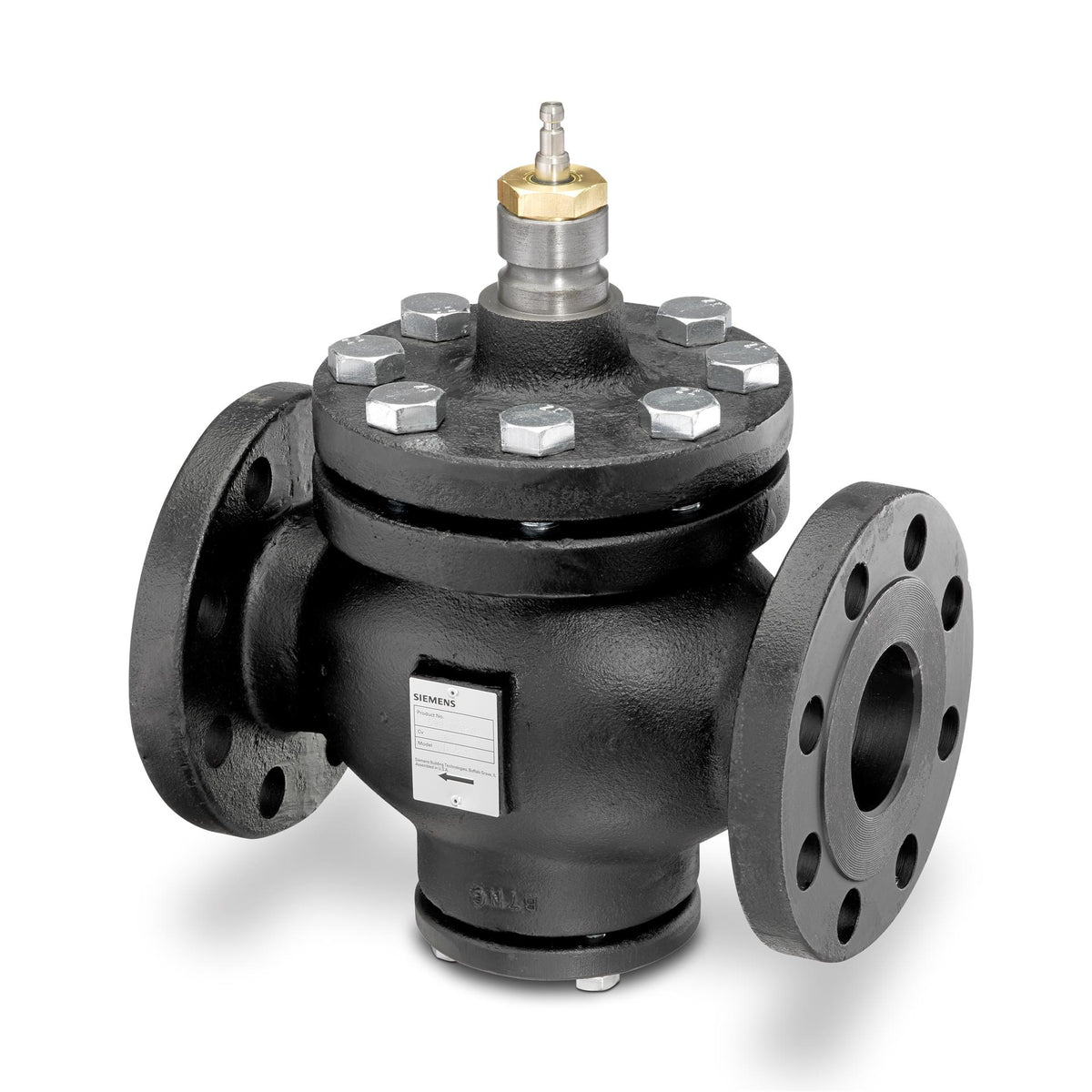

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06623
Documents and manuals
Siemens Building Technology 599-06623 Documents
Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info
Overview
Details for 599-06623
5" O ANSI 250 NO SS [sku: 599-06623]
This 5" O ANSI 250 NO SS solenoid valve is a critical component designed for industrial and commercial applications where precise fluid control is crucial. Manufactured by Siemens Building Technology, a leading provider of building automation and control solutions, this valve offers exceptional reliability and performance in demanding environments.
Key Features:
- ANSI Class 250 flange rating for high-pressure applications
- Stainless steel construction for superior durability and corrosion resistance
- Normally open (NO) configuration for fail-safe operation
- Compact design for easy installation in space-constrained areas
- Ideal for use in process control, automation, and fluid management systems
Applications:
- Chemical and petrochemical processing
- Power generation and distribution
- Water treatment and distribution
- HVAC and refrigeration systems
- Food and beverage manufacturing
Our HVAC supply store offers the best prices and fast shipping on this solenoid valve and other industrial products. Contact us today to learn more and place your order!
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- Flanged
- Connecting thread
- Universal bonnet for direct-coupled actuators
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 125
- Leakage rate
- ANSI Leakage Class IV
- Leakage rate, class
- ANSI Leakage Class IV
- Rangeability
- 100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 40 mm, 1.5 " mm
- Stroke, mm
- 40 mm
- Dimensions (W x H x D)
- 16.61 x 18.54 x 10.98 in
