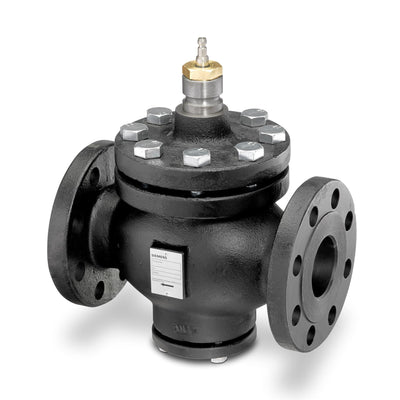

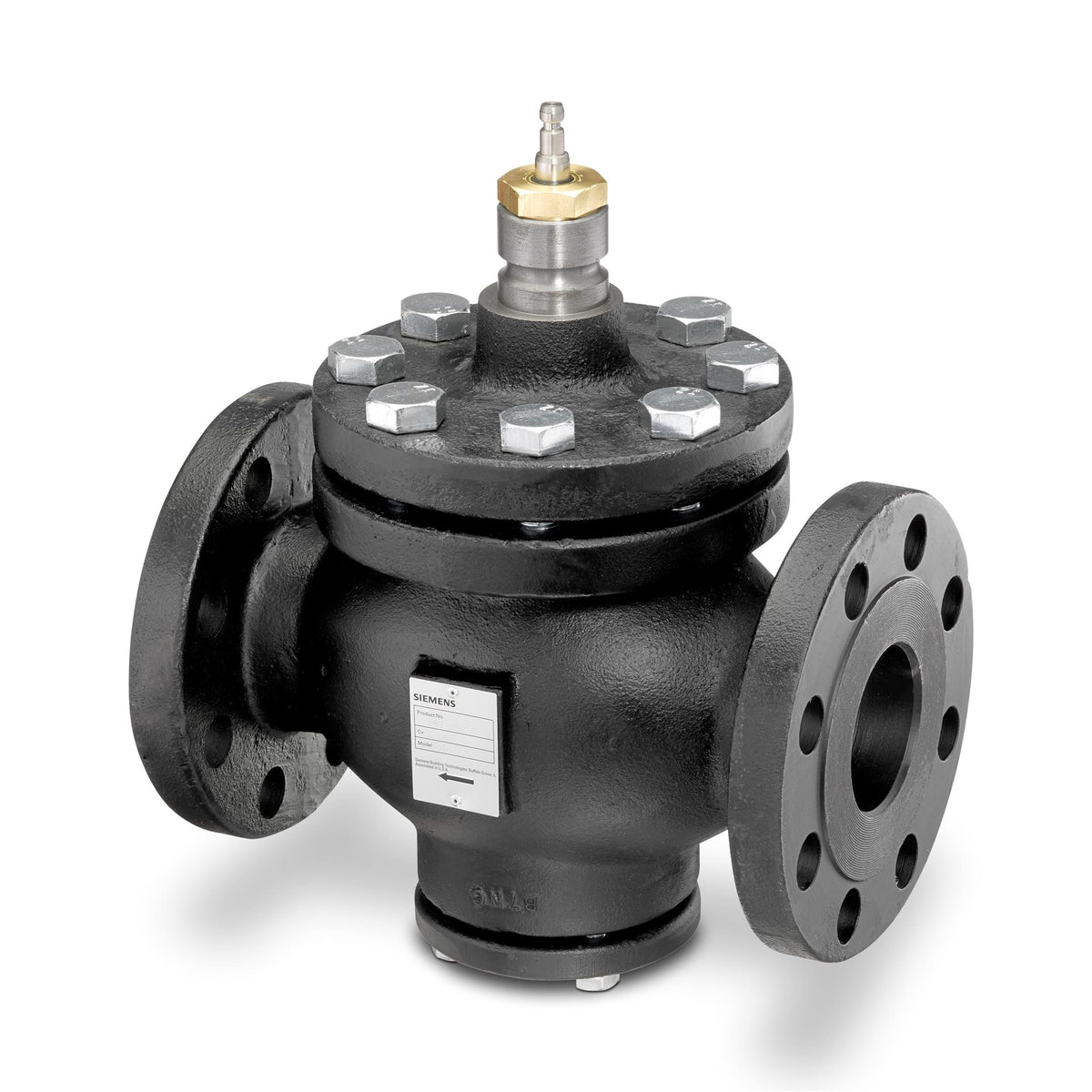

599-06615 | Flowrite two-way 2 1/2 inch high close-off valve. ANSI 125, NC, SS trim. | Siemens Building Technology

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-06615

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-06615 Documents

Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info

Overview

Details for 599-06615

2.5" Normally Closed Flag Indicator, 125# Stainless Steel Trim, 63 CvSiemens Building Technology's 2.5" N/C FLG 125#SStrimHCO 63cv is designed for exceptional performance in industrial applications. Constructed with durable stainless steel trim, it ensures longevity in harsh environments. The 2.5" indicator provides clear visual indication of critical system conditions with its normally closed design. The 125# pressure rating makes it appropriate for high-pressure systems. With a Cv of 63, it allows for efficient flow regulation. This Siemens Building Technology indicator is ideal for monitoring and controlling fluid systems, ensuring reliability and safety in industrial settings.

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: Flanged
Connecting thread: Universal bonnet for direct-coupled actuators
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
DN: 65
Leakage rate: ANSI Leakage Class IV
Leakage rate, class: ANSI Leakage Class IV
Rangeability: 100:1
Medium temperature: 20…250 ºF
Stroke: 20 mm, 0.75 " mm
Stroke, mm: 20 mm
Dimensions (W x H x D): 10.87 x 13.98 x 7.01 in
