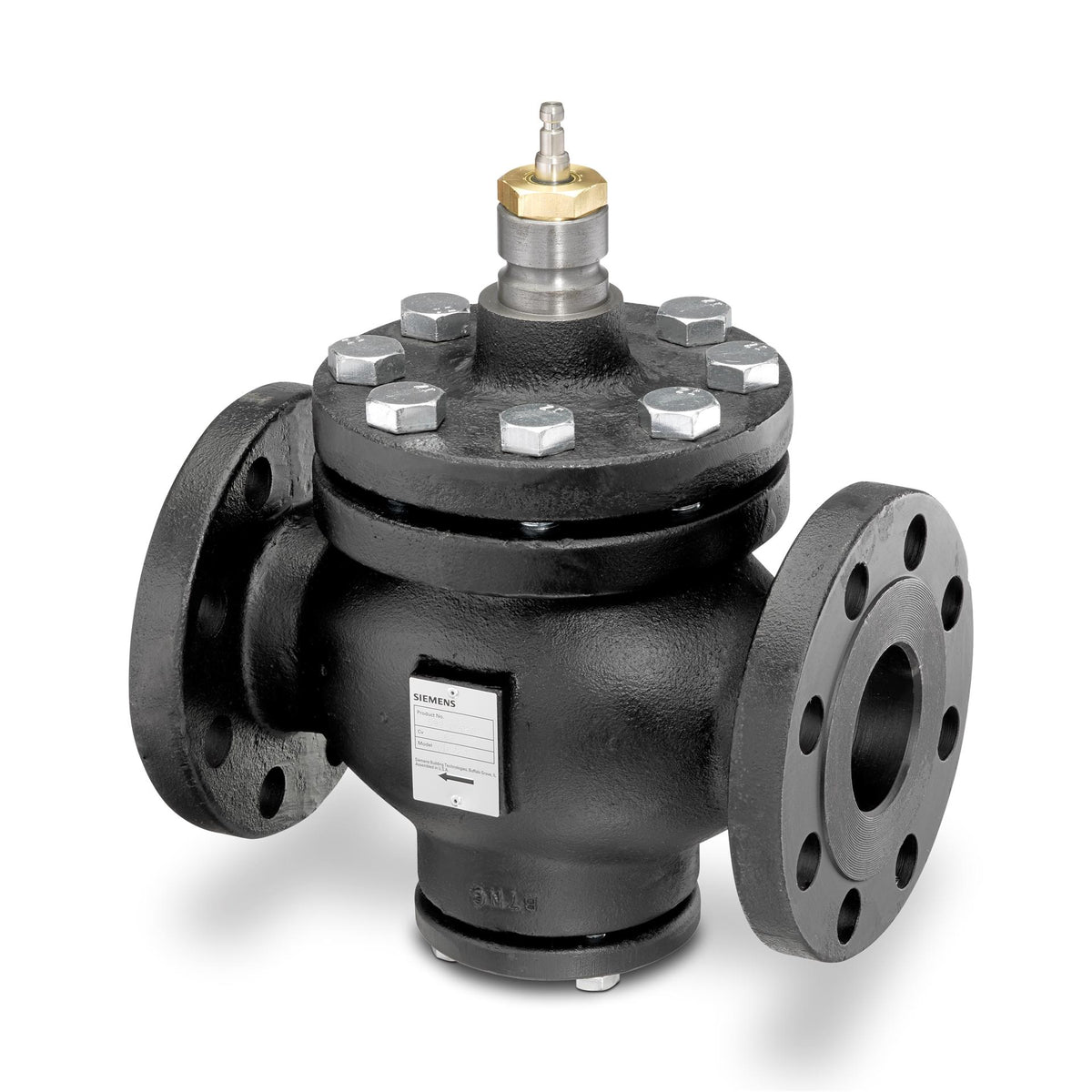

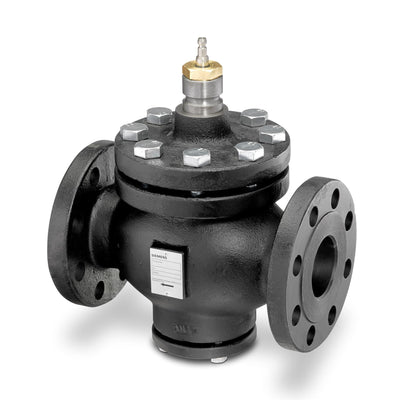

599-06614 | Flowrite two-way 6-inch high close-off valve. ANSI 125, NO, SS trim. | Siemens Building Technology

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-06614

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-06614 Documents

Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info

Overview

Details for 599-06614

Enhance your facility's efficiency with the Siemens Building Technology 6"FLG 125#SStrimHCO 400cv. This top-rated product by Siemens boasts a robust construction, ensuring durability and longevity in demanding industrial environments. Its advanced design and precise engineering deliver unparalleled performance, making it an indispensable tool for industrial engineers and maintenance professionals. Crafted from high-quality materials, the 6"FLG 125#SStrimHCO 400cv is built to withstand the rigors of industrial use. Its compact size allows for versatile installation in tight spaces, while its efficient operation helps reduce energy consumption. Our HVAC supply store is your trusted source for the Siemens Building Technology 6"FLG 125#SStrimHCO 400cv and other industrial products. We offer competitive prices, fast shipping, and exceptional customer service. Contact us today to learn more and place your order. Upgrade your operations and enhance productivity with the Siemens Building Technology 6"FLG 125#SStrimHCO 400cv!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: Flanged
Connecting thread: Universal bonnet for direct-coupled actuators
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
DN: 150
Leakage rate: ANSI Leakage Class IV
Leakage rate, class: ANSI Leakage Class IV
Rangeability: 100:1
Medium temperature: 20…250 ºF
Stroke: 40 mm, 1.5 " mm
Stroke, mm: 40 mm
Dimensions (W x H x D): 17.76 x 20.16 x 10.98 in
