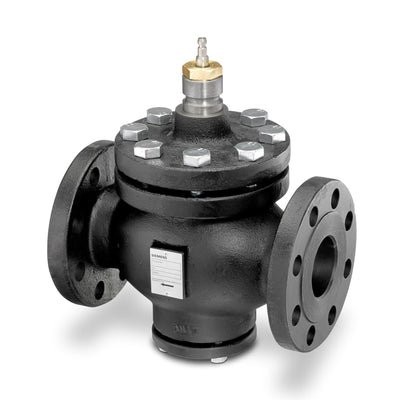

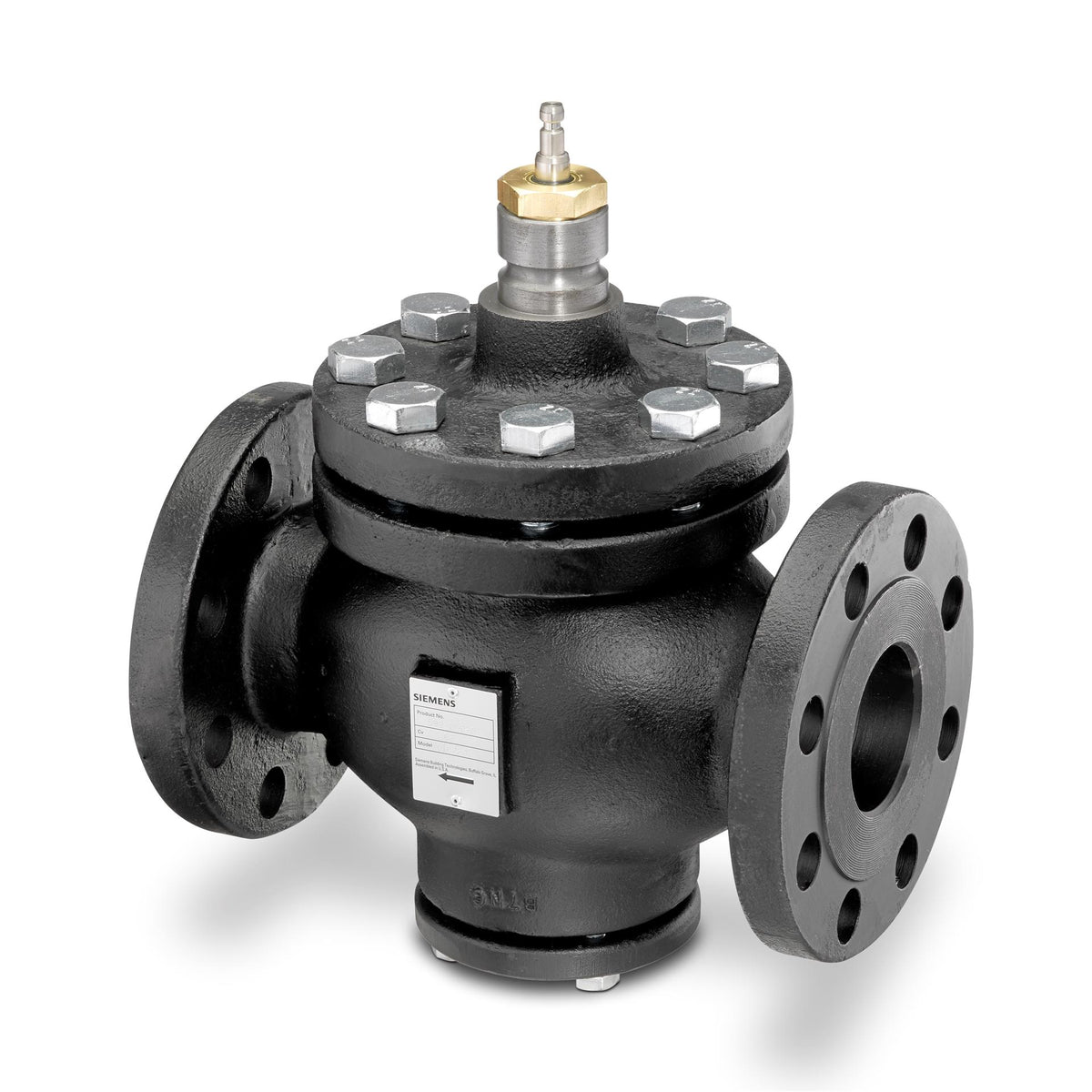

599-06612 | Flowrite two-way 4- inch high close-off valve. ANSI 125, NO, SS trim. | Siemens Building Technology
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06612
Documents and manuals
Siemens Building Technology 599-06612 Documents
Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info
Overview
Details for 599-06612
4" N/O FLG 125# 160CV HCO (SKU: 599-06612) by Siemens Building Technology
This 4-inch Normally Open (N/O) flange is a durable and reliable component designed for demanding industrial applications. Manufactured by Siemens Building Technology, a trusted brand in the industry, this flange is built to withstand high pressures of up to 125# and temperatures up to 160°C.
Constructed with high-quality materials, this flange offers exceptional corrosion resistance and long-lasting performance. Its N/O design allows for quick and easy installation, ensuring minimal downtime during maintenance or repairs.
The technical specifications of this 4" N/O FLG include:
- Size: 4 inches
- Pressure Rating: 125#
- Temperature Rating: 160°C
- Material: High-quality, corrosion-resistant materials
- Design: Normally Open (N/O)
- Brand: Siemens Building Technology
Whether you're looking to replace an existing flange or upgrade your system, this 4" N/O FLG 125# 160CV HCO is the perfect solution. Its durability, reliability, and ease of installation make it an essential component for any industrial setting.
Shop our HVAC supply store today for the best prices and fast shipping on all your industrial supply needs!
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- Flanged
- Connecting thread
- Universal bonnet for direct-coupled actuators
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 100
- Leakage rate
- ANSI Leakage Class IV
- Leakage rate, class
- ANSI Leakage Class IV
- Rangeability
- 100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 40 mm, 1.5 " mm
- Stroke, mm
- 40 mm
- Dimensions (W x H x D)
- 13.86 x 16.97 x 9.02 in
