599-06611 | 3"FLG N/O 125# 100CV HCO | Siemens Building Technology

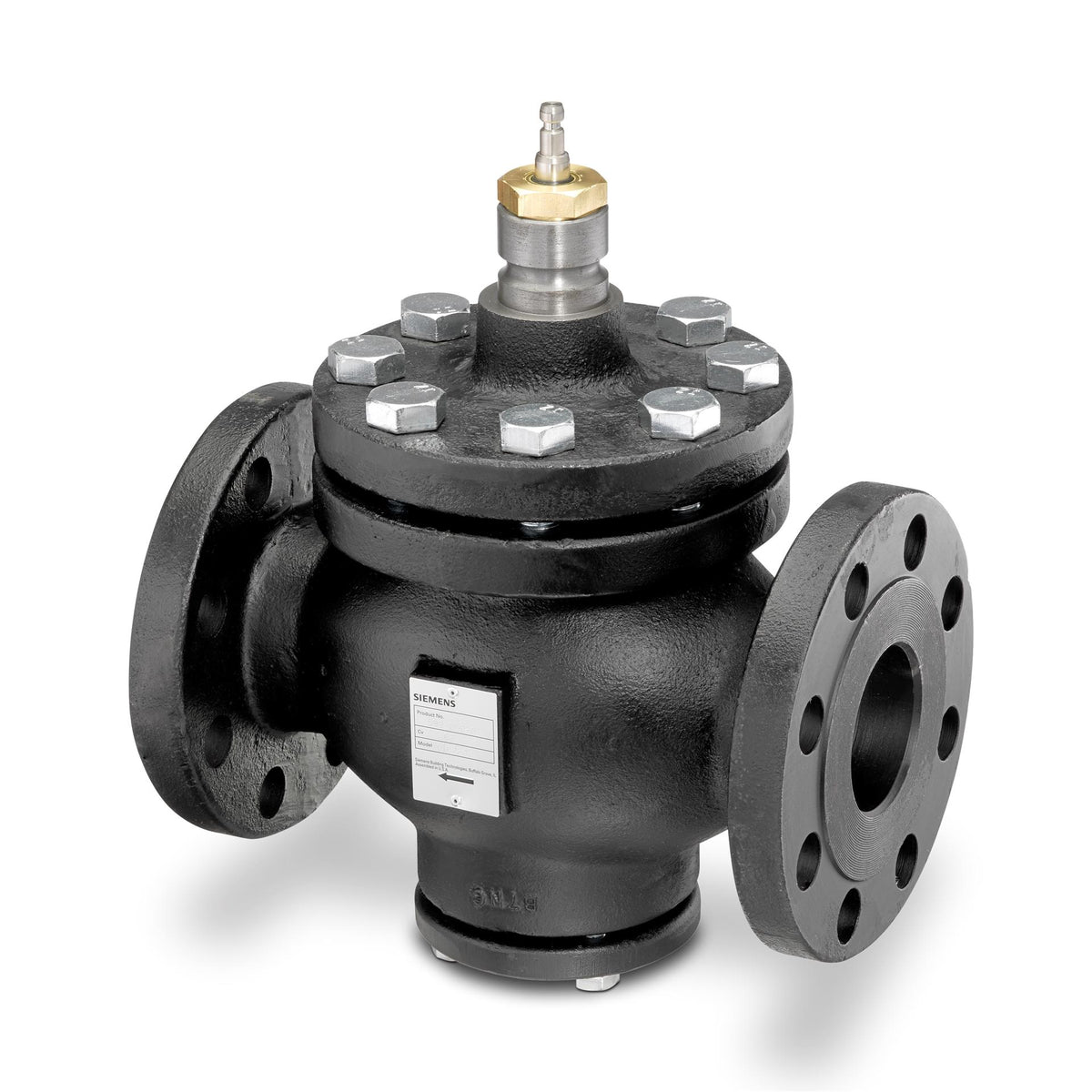

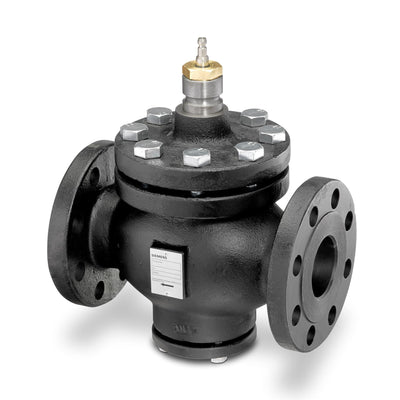

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-06611

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-06611 Documents

Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info

Overview

Details for 599-06611

3" Flanged Limit Switch: Siemens Building Technology 599-06611The Siemens Building Technology 599-06611 is a 3-inch flanged limit switch designed for industrial applications. It features a robust construction for reliable operation in demanding environments. Key Features: - 3-inch flange mount for secure installation - Normally open (NO) contact configuration - 125# pressure rating for various applications - 100 CV horsepower rating for higher power handling - HCO housing for durability and corrosion resistance Applications: The 599-06611 limit switch is ideal for industrial applications requiring precise position sensing, such as: - Conveyor systems - Material handling equipment - Manufacturing automation - Process control systems - Safety interlocks Benefits: - Reliable operation under harsh conditions - Accurate position sensing for precise control - Suitable for high-power applications - Durable construction for long-term performance We offer competitive prices and fast shipping. Contact our HVAC supply store today to get the best deals on Siemens Building Technology 599-06611 limit switches!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: Flanged
Connecting thread: Universal bonnet for direct-coupled actuators
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
DN: 80
Leakage rate: ANSI Leakage Class IV
Leakage rate, class: ANSI Leakage Class IV
Rangeability: 100:1
Medium temperature: 20…250 ºF
Stroke: 20 mm, 0.75 " mm
Stroke, mm: 20 mm
Dimensions (W x H x D): 11.77 x 15.67 x 7.52 in
