599-04323-9 | 599-04323-9, 1 PICV, 9 GPM NO | Siemens Building Technology

Siemens Building Technology | 599-04323-9

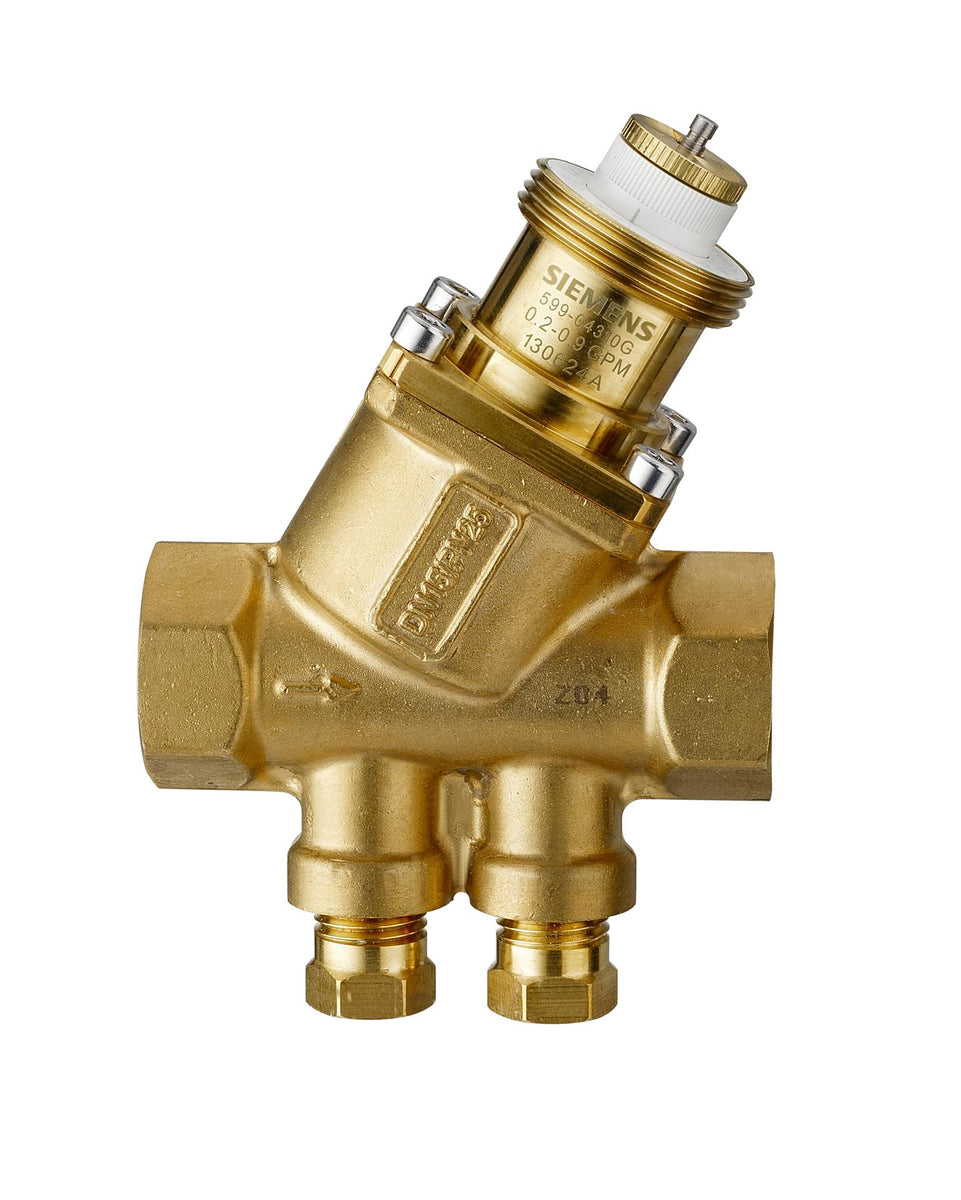

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04323-9

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04323-9 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04323-9

1" PICV 9 GPM NO: A high-performance Pressure Independent Control Valve designed for precise flow control in hydronic systems. This valve maintains a constant flow rate of up to 9 GPM, regardless of pressure fluctuations, ensuring optimal system performance. Manufactured by Siemens Building Technology, a trusted leader in building automation and control solutions.

Specifications

Valve Size: 1 in
Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Brass
Trim Material: Brass
Material, inside set: Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
Flow Characteristic: Linear
Medium: Water , Water with anti-freeze
Max GPM: 16 gpm
DN: 25
Min GPM: 2.6 gpm
Preset GPM: 9 gpm
Pressure Class: ANSI 250
Leakage rate: ANSI Class IV (0.01%) @ 100 psi
Leakage rate, class: ANSI Class IV
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 5.5 mm
Close-off Pressure: 200 psi
