599-04323-8 | 599-04323-8, 1 PICV, 8 GPM NO | Siemens Building Technology

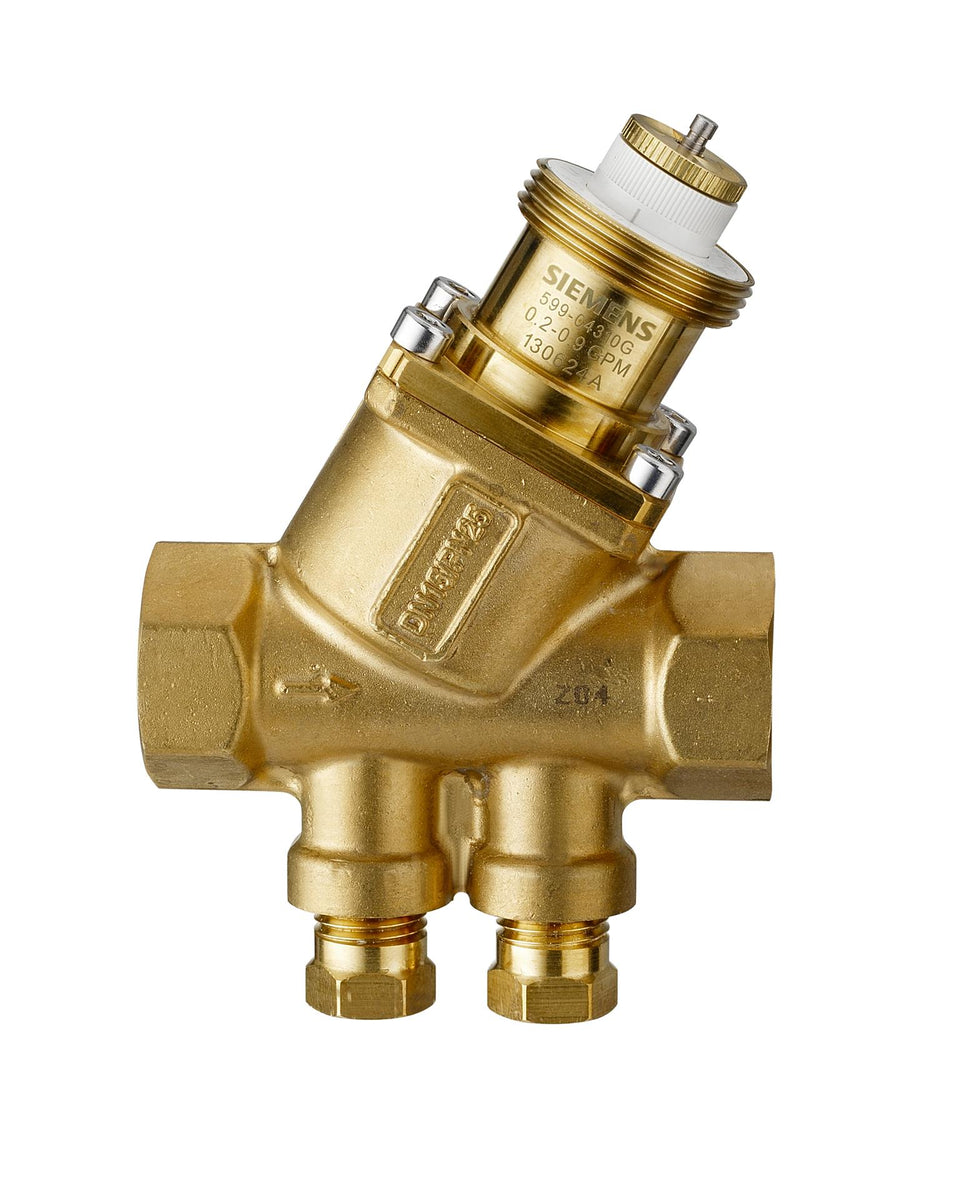

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04323-8
Documents and manuals
Overview
Details for 599-04323-8
1" PICV 8 GPM NO: Siemens Building Technology NCO-599-04323-8
The Siemens Building Technology 1" PICV 8 GPM NO is a pressure independent control valve designed for use in hydronic heating and cooling systems. This valve is designed to maintain a constant flow rate, regardless of changes in system pressure or temperature. The NCO-599-04323-8 is constructed of brass and features a stainless steel trim. It has a maximum operating pressure of 150 psi and a maximum operating temperature of 250 degrees Fahrenheit. This valve is ideal for use in commercial and industrial applications.
Features:
* Pressure independent control valve
* Maintains a constant flow rate, regardless of changes in system pressure or temperature
* Constructed of brass with a stainless steel trim
* Maximum operating pressure of 150 psi
* Maximum operating temperature of 250 degrees Fahrenheit
* Ideal for use in commercial and industrial applications
Shop our HVAC supply store now for the best prices and fast shipping on the Siemens Building Technology 1" PICV 8 GPM NO!
Specifications
- Valve Size
- 1 in
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Trim Material
- Brass
- Material, inside set
- Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 16 gpm
- DN
- 25
- Min GPM
- 2.6 gpm
- Preset GPM
- 8 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- ANSI Class IV (0.01%) @ 100 psi
- Leakage rate, class
- ANSI Class IV
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5.5 mm
- Close-off Pressure
- 200 psi
