Overview
Details for 599-04323-15

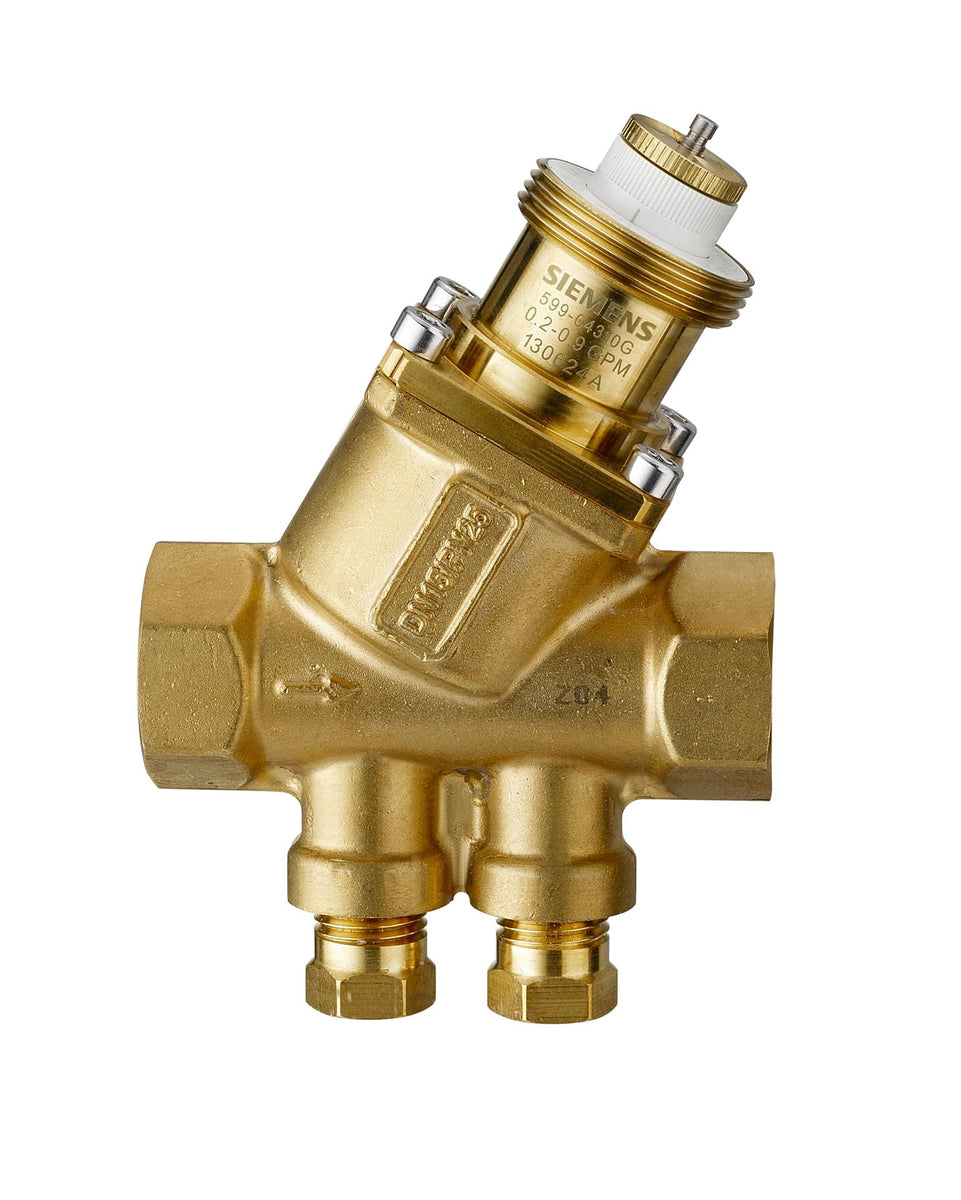

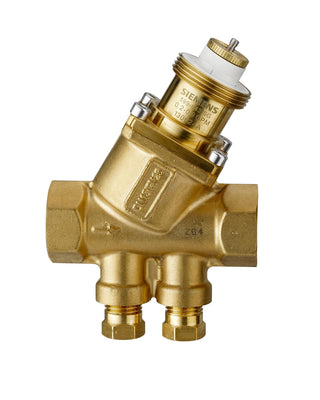

1" PICV 15 GPM NO: NCO-599-04323-15-Siemens Building Technology
The NCO-599-04323-15 from Siemens Building Technology is a Pressure Independent Control Valve (PICV) with a size of 1" and a flow capacity of 15 GPM. It is designed to maintain a constant flow rate in HVAC systems, regardless of pressure fluctuations. The valve is made of durable materials for long-lasting performance and features a compact design for easy installation. It is ideal for use in commercial and industrial buildings, schools, hospitals, and other facilities where precise flow control is required.
Features:
- 1" size
- 15 GPM flow capacity
- Maintains constant flow rate
- Durable construction
- Compact design
- Ideal for use in HVAC systems
Benefits:
- Ensures optimal system performance
- Reduces energy consumption
- Extends equipment life
- Easy to install and maintain
Shop now at our HVAC supply store for the best prices and fast shipping on Siemens Building Technology products!
Specifications
- Valve Size
- 1 in
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Trim Material
- Brass
- Material, inside set
- Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 16 gpm
- DN
- 25
- Min GPM
- 2.6 gpm
- Preset GPM
- 15 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- ANSI Class IV (0.01%) @ 100 psi
- Leakage rate, class
- ANSI Class IV
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5.5 mm
- Close-off Pressure
- 200 psi
