599-04323-10 | 599-04323-10, 1 PICV, 10 GPM NO | Siemens Building Technology

Siemens Building Technology | 599-04323-10

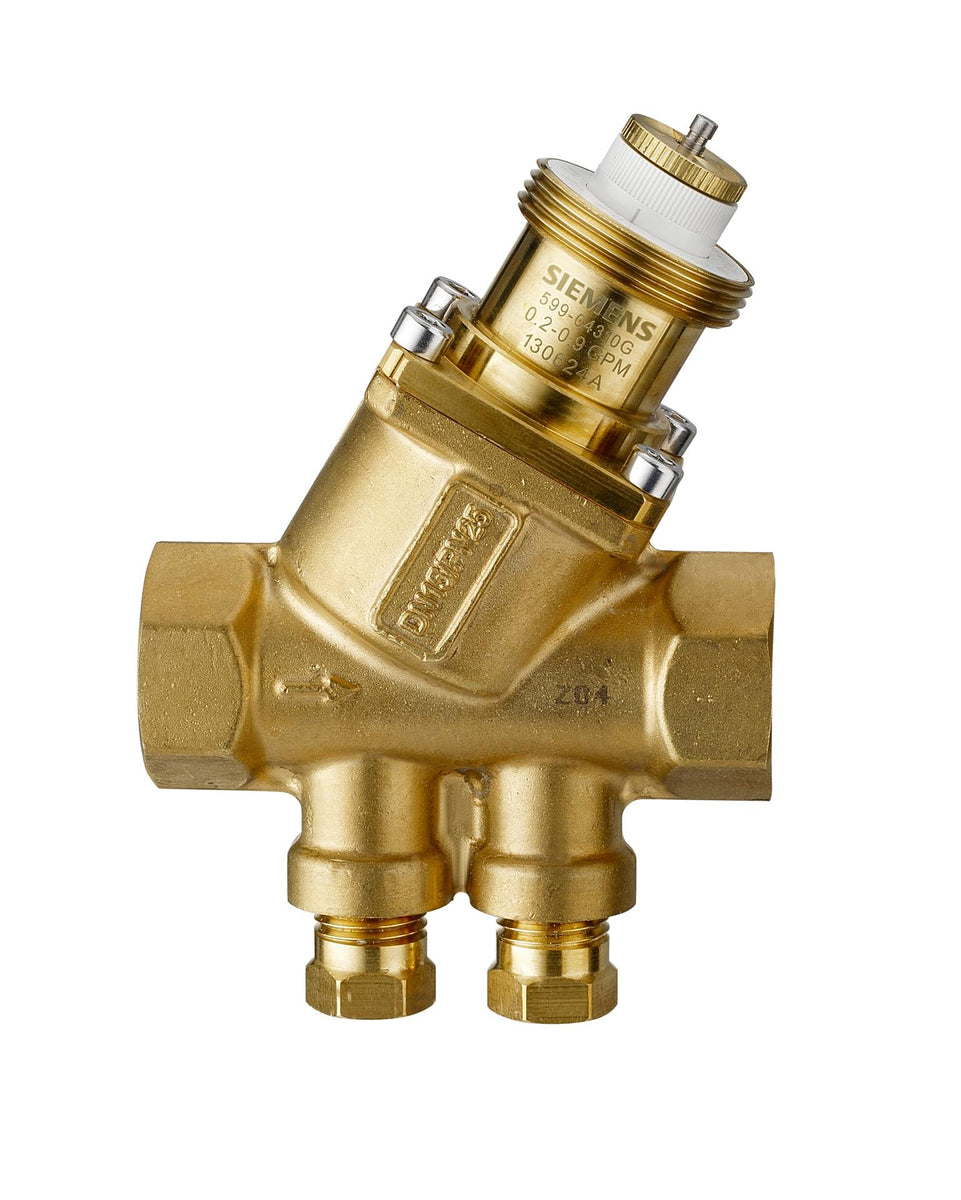

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04323-10

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04323-10 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04323-10

1" PICV 10 GPM NO: Siemens Building Technology The Siemens Building Technology 1" PICV 10 GPM NO is a pressure-independent control valve designed to maintain a constant flow rate regardless of pressure fluctuations in the system. It is ideal for use in commercial and industrial applications where precise flow control is critical. This valve is constructed with high-quality materials for durability and longevity. It features a compact design that makes it easy to install and maintain. With its advanced flow control capabilities, the Siemens Building Technology 1" PICV 10 GPM NO is an excellent choice for demanding applications. Our HVAC supply store - We offer the best prices and fast shipping for your products!

Specifications

Valve Size: 1 in
Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Brass
Trim Material: Brass
Material, inside set: Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
Flow Characteristic: Linear
Medium: Water , Water with anti-freeze
Max GPM: 16 gpm
DN: 25
Min GPM: 2.6 gpm
Preset GPM: 10 gpm
Pressure Class: ANSI 250
Leakage rate: ANSI Class IV (0.01%) @ 100 psi
Leakage rate, class: ANSI Class IV
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 5.5 mm
Close-off Pressure: 200 psi
