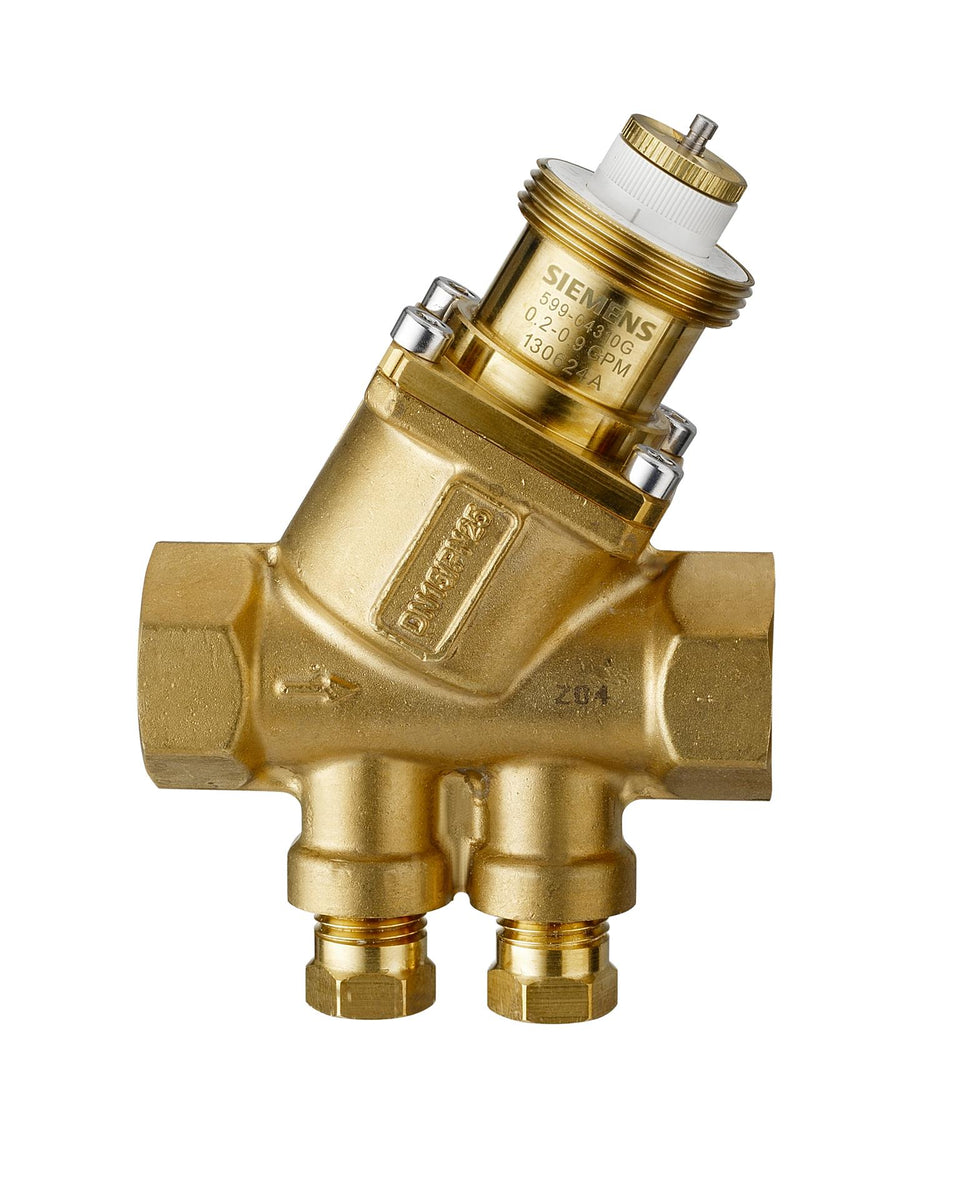

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04322-5.5
Documents and manuals
Overview
Details for 599-04322-5.5
Control Your Flow with Precision: Siemens Building Technology 599-04322-5.5 PICV
The Siemens Building Technology 599-04322-5.5 Pressure Independent Control Valve (PICV) offers precise flow control for hydronic systems, ensuring optimal performance and energy efficiency. This 3/4" PICV features a flow capacity of 5.5 GPM and is designed to maintain a constant flow rate regardless of pressure fluctuations in the system.
Its durable construction and high-quality materials ensure reliability and longevity. The PICV is equipped with a manual override for easy flow adjustment during commissioning or maintenance. It also features a built-in strainer to protect the valve from debris and ensure smooth operation.
This PICV is ideal for a wide range of applications, including heating, cooling, and chilled water systems in commercial and industrial buildings. Trust Siemens Building Technology for reliable flow control solutions that enhance system efficiency and reduce operating costs.
Shop our HVAC supply store for the best prices and fast shipping on all your industrial products.
Specifications
- Valve Size
- 0.75 in
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Trim Material
- Brass
- Material, inside set
- Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 8 gpm
- DN
- 20
- Min GPM
- 1.3 gpm
- Preset GPM
- 5.5 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- ANSI Class IV (0.01%) @ 100 psi
- Leakage rate, class
- ANSI Class IV
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5.5 mm
- Close-off Pressure
- 200 psi
